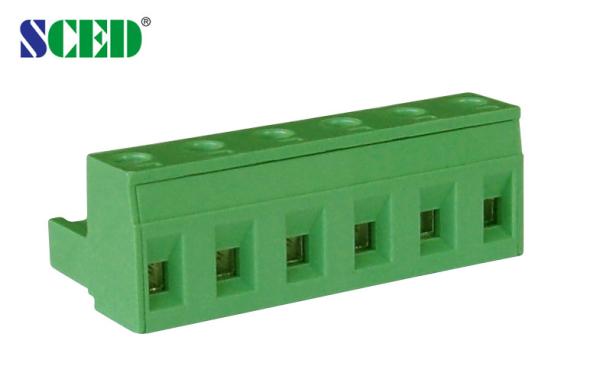

Single Level Pluggable Terminal Blocks , Pitch 7.62mm Brass Female Connector
Single Level Pluggable Terminal Blocks , Pitch 7.62mm Brass Female Connector
Single Level Pluggable Terminal Blocks , Pitch 7.62mm Brass Female Connector
Single Level Pluggable Terminal Blocks , Pitch 7.62mm Brass Female Connector
Specifications
Brand Name :
SCED
Model Number :
TP508P-76
Certification :
CE,UL
Place of Origin :
China
MOQ :
1000 Piece/Pieces
Price :
USD 0.06-0.12 PER Pole
Payment Terms :
T/T, L/C
Supply Ability :
1000000 Pole/Poles per Month
Delivery Time :
5-20 Working Days
Packaging Details :
Standard export packing carton, or according to customers demand.
Color :
Green
Pitch :
7.62mm
Type :
Plug in
Current :
8A
Voltage :
300V
Poles :
2-24 poles
Insulation Material :
PA66
Screw :
M2
Torque :
2-2.2 lbf.in
Clamp Cage :
Brass
Description

Green Color Plug In Terminal Block Brass Female Connectors Pitch 7.62mm

Detailed product Description:

Plug, Female, Pitch: 7.62mm, 300V 18A, 2P-16P, Pluggable Terminal Blocks, Plug-in Terminal Blocks

This female plug match with male sockets’ series: TP508H-76, TP508H-76V, TP508H-77, TP508H-77V

Levels: ■Single Level

Standard color: Green.

Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Single Level Pluggable Terminal Blocks , Pitch 7.62mm Brass Female Connector

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Industry Control, Automation, Communication, Electric Power, Security, Medical Equipment, Military and so on.

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 18 300 / 18
Wire Range AWG 12-30 12-30
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 400 / 18 630 / 18 1000 / 18
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm2 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Phosphor Bronze / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 7
Screw / Torque / lbf.in M3 / 4.4-5.3

Competitive Advantage:

  1. High quality
  2. Reasonable price
  3. Full range products for selection
  4. Flexible to design the exact part per customers’ demand

Single Level Pluggable Terminal Blocks , Pitch 7.62mm Brass Female Connector
