101A 21.0mm PBT Perforation 600V Feed Through Terminal Block With Plastic Cover
101A 21.0mm PBT Perforation 600V Feed Through Terminal Block With Plastic Cover
101A 21.0mm PBT Perforation 600V Feed Through Terminal Block With Plastic Cover
101A 21.0mm PBT Perforation 600V Feed Through Terminal Block With Plastic Cover
Specifications
Brand Name :
SCED
Model Number :
TD100-01-C
Certification :
CE,UL,CUL,CQC and VDE etc.
Place of Origin :
Suzhou,China
MOQ :
1000 Piece/Pieces
Price :
USD 1.143-2.286 Per Pole
Payment Terms :
T/T, L/C
Supply Ability :
1000000 Pole/Poles per Month
Delivery Time :
20-45 working days
Packaging Details :
Packaging Details: Standard export packing carton, or according to customers demand.
Pitch :
21mm
Current :
101A
Voltage :
600V
Screw :
M6
Torque :
20-22 lbf.in
Plastic :
PBT
Insulation Material :
UL94-V0
Stripping Length :
11-12mm
Wire Range :
2-20 AWG
Conduction Board :
Brass
Description

101A 21.0mm PBT Perforation 600V Feed Through Terminal Block With Plastic Cover ​

Detailed product Description:

Pitch 21.0mm, 600V 101A, Any poles available, Perforation Terminal Blocks, Through Panel Terminal Connectors

■ Single Deck; □Double decks; □Triple decks

Standard color: Black.

Other colors also available, please refer to below How to Order and select the color you want.

How to order:

101A 21.0mm PBT Perforation 600V Feed Through Terminal Block With Plastic Cover

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Energy conservation, Elevator, etc..

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 101 600 / 101 600 / 5
Wire Range AWG 2-20 2-20 2-20
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 630 / 101 1000 / 101 1000 / 101
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm2 25
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Conduction Board / Plating Brass / Nickel Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 11-12
Screw / Torque / lbf.in M6 / 20-22

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

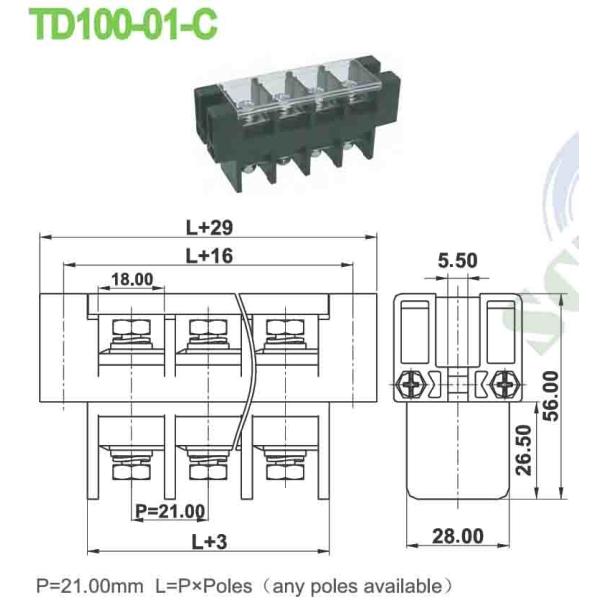

Drawing Photo


101A 21.0mm PBT Perforation 600V Feed Through Terminal Block With Plastic Cover
