Feed Through 90A 600V PA66 M5 Perforation Terminal Block 15.00mm 4-20 AWG
Feed Through 90A 600V PA66 M5 Perforation Terminal Block 15.00mm 4-20 AWG
Feed Through 90A 600V PA66 M5 Perforation Terminal Block 15.00mm 4-20 AWG
Feed Through 90A 600V PA66 M5 Perforation Terminal Block 15.00mm 4-20 AWG
Specifications
Brand Name :
SCED
Model Number :
TD90-00
Certification :
CE,UL,CUL,CQC and VDE etc.
Place of Origin :
Suzhou, China
MOQ :
1000 Piece/Pieces
Price :
USD 1.143-2.286 Per Pole
Payment Terms :
T/T, L/C
Supply Ability :
1000000 Pole/Poles per Month
Delivery Time :
20-45 working days
Packaging Details :
Packaging Details: Standard export packing carton, or according to customers demand.
Pitch :
15mm
Current :
90A
Voltage :
600V
Screw :
M5
Torque :
14-6 lbf.in
Plastic :
PA66
Insulation Material :
UL94-V0
Stripping Length :
10-12mm
Wire Range :
4-20 AWG
Conduction Board :
Brass
Description

Feed Through 90A 600V PA66 M5 Perforation Terminal Block 15.00mm 4-20 AWG

Detailed product Description:

Pitch 15.0mm, 600V 90A, Any poles available, Perforation Terminal Blocks, Through Panel Terminal Connectors

■ Single Deck; □Double decks; □Triple decks

Standard color: Black.

Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Feed Through 90A 600V PA66 M5 Perforation Terminal Block 15.00mm 4-20 AWG

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Energy conservation, Elevator, etc..

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 90 600 / 90
Wire Range AWG 4-20 4-20
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 800 / 90 1000 / 90 1000 / 90
Rated Surge Voltage KV 8 8 6
Rated Connecting Capacity mm2 16
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Conduction Board / Plating Brass / Nickel Plated
Screw / Plating Steel / Nickel Plated
Other Data
Stripping Length mm 10-12
Screw / Torque / lbf.in M5 / 14-16

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

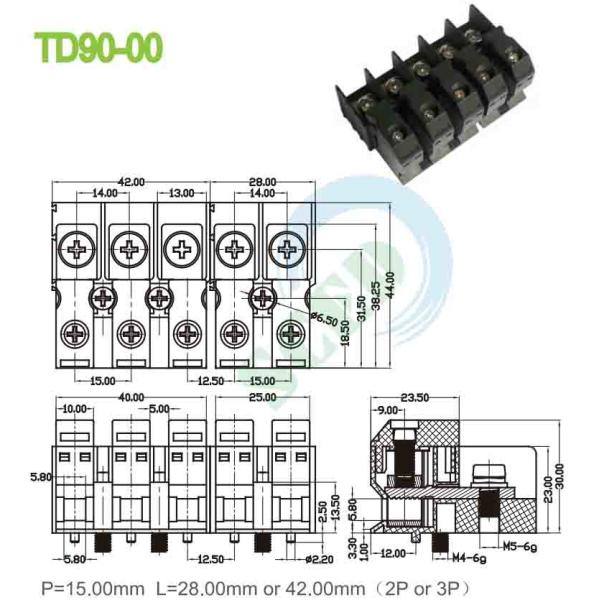

Drawing Photo


Feed Through 90A 600V PA66 M5 Perforation Terminal Block 15.00mm 4-20 AWG
