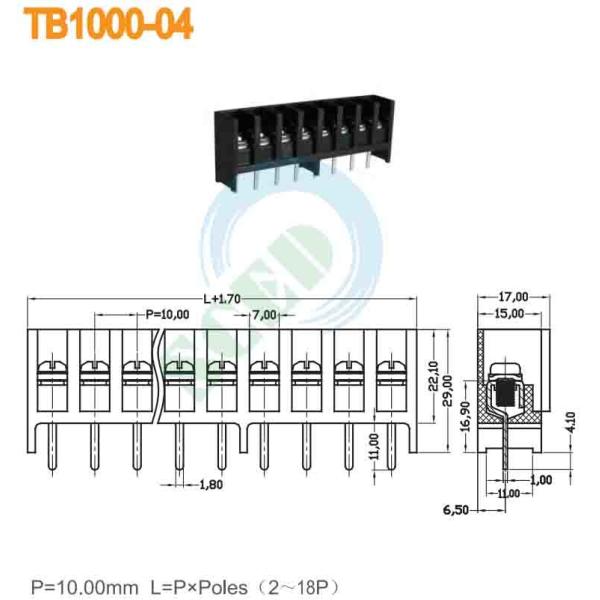

Black Barrier Terminal Block with 10.00mm Pitch 300V 20A Right Angle Wire Inlet for PCB and Power Supply
Black Barrier Terminal Block with 10.00mm Pitch 300V 20A Right Angle Wire Inlet for PCB and Power Supply
Black Barrier Terminal Block with 10.00mm Pitch 300V 20A Right Angle Wire Inlet for PCB and Power Supply
Black Barrier Terminal Block with 10.00mm Pitch 300V 20A Right Angle Wire Inlet for PCB and Power Supply
Specifications
Brand Name :
SCED
Model Number :
TB1000-04
Certification :
UL, CE
Place of Origin :
Suzhou, China
MOQ :
500
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Delivery Time :
20-45 working days
Packaging Details :
Packaging Details: Standard export packing carton, or according to customers demand.
Levels :
Single Level
Wire Inlet :
Right angle wire inlet
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Color :
Black
Number of Contacts :
2P-18P
Pitch :
10.00mm
Rated Current :
20A
Rated Voltage :
300V
Type :
Barrier Terminal Block,Power terminal blocks, Electrical terminal Blocks
Wire Range :
10-22
Description
Black Barrier Terminal Block 2-18P 300V 20A Pitch 10.00mm PBT Brass 9-10mm
Product Overview

Black Barrier Terminal Block 2-18P 300V 20A Pitch 10.00mm PBT Brass 9-10mm

  • ■ Right angle wire inlet
  • □ Vertical wire inlet
  • □ 45 degree wire inlet
  • ■ Single Level
  • □ Double levels
  • □ Triple levels

Standard color: Black. Other colors also available - please refer to the ordering section and select your preferred color.

How to Order
Black Barrier Terminal Block with 10.00mm Pitch 300V 20A Right Angle Wire Inlet for PCB and Power Supply
Applications

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Elevator, and more.

Technical Specifications
UL Technical Data B C D
Rated Voltage / Current V/A 300 / 20 300 / 10
Wire Range AWG 10-22 10-22
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 630 / 32 800 / 32 1000 / 32
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm² 6
Material Specifications
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ2.5
Stripping Length mm 9-10
Screw / Torque / lbf.in M4 / 10-13
Black Barrier Terminal Block with 10.00mm Pitch 300V 20A Right Angle Wire Inlet for PCB and Power Supply
Competitive Advantages
  • Stable good quality
  • Competitive price
  • Quick response
  • Full range of products for selection
  • Flexible to design exact parts per customers' demand
