PA66 5.7mm Brass 300V 10A M3 Screw Terminal Block Connector 10 - 22 AWG
PA66 5.7mm Brass 300V 10A M3 Screw Terminal Block Connector 10 - 22 AWG
PA66 5.7mm Brass 300V 10A M3 Screw Terminal Block Connector 10 - 22 AWG
PA66 5.7mm Brass 300V 10A M3 Screw Terminal Block Connector 10 - 22 AWG
Specifications
Brand Name :
SCED
Model Number :
TJ508-21-3P-BK
Certification :
UL,CE,CUL,CQC and VDE etc.
Place of Origin :
Suzhou,China
MOQ :
500 Piece/Pieces
Price :
USD 0.04-0.085 PER Pole
Payment Terms :
T/T, L/C
Supply Ability :
1000000 Pole/Poles per Month
Delivery Time :
20-45 working days
Packaging Details :
Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Color :
Black
Metal Parts :
Brass
Pitch :
5.7mm
Voltage :
300V
Current :
10A
Poles :
3 poles
Inflammability Class :
UL94, V-0
Insulation Material :
PA66
Screw :
M3
Description

PA66 5.7mm Brass 300V 10A M3 Screw Terminal Block Connector 10 - 22 AWG

Detailed product Description:

Pitch 65.7mm, 300V 10A, 3P, PCB Terminal blocks – Euro type Raising series

■ Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■ Single Deck; □Double decks; □Triple decks

Standard color: Black. Other colors also available.

Applications:

It can be used in PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Energy conservation etc..

How to order:

PA66 5.7mm Brass 300V 10A M3 Screw Terminal Block Connector 10 - 22 AWG

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/10 600/5
Wire Range AWG 10-22 10-22
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 630 / 10 800 / 10 1000 / 10
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm2 4.0
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Steel / Nickel Plated
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ1.4
Stripping Length mm 7-8
Screw / Torque / lbf.in M3 / 5.3-7

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response and good after-sales service
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

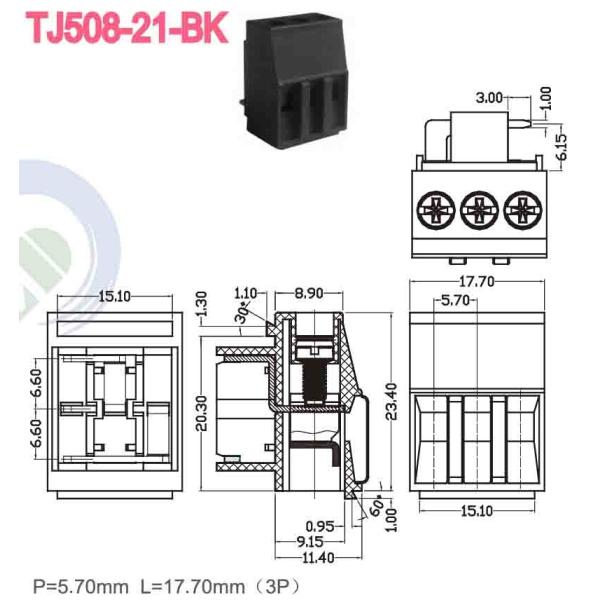

Drawing Photo


PA66 5.7mm Brass 300V 10A M3 Screw Terminal Block Connector 10 - 22 AWG
