5.0mm Pcb Terminal Block Connectors 10A Green PA66 Brass 300V 2-28 Poles
5.0mm Pcb Terminal Block Connectors 10A Green PA66 Brass 300V 2-28 Poles
Specifications
Brand Name :
SCED
Model Number :
TJ500-18-T1
Certification :
UL,CUL,CE,CQC and VDE etc.
Place of Origin :
Guangdong,China
MOQ :
500 Piece/Pieces
Price :
USD 0.038-0.08
Payment Terms :
L/C, T/T
Supply Ability :
1000000 Pole/Poles per Month
Delivery Time :
5-20 working days
Packaging Details :
Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Color :
Green
Pitch :
5.0mm
Current :
10A
Voltage :
300V
Plastic :
PA66
Metal Parts :
Brass
Inflammability Class :
UL94, V-0
Rated Surge Voltage :
No abnormal within 1 minute
Insulation Resistance :
Above DC500V, 500MΩ
Contact Resistance :
Less than 8mΩ
Description

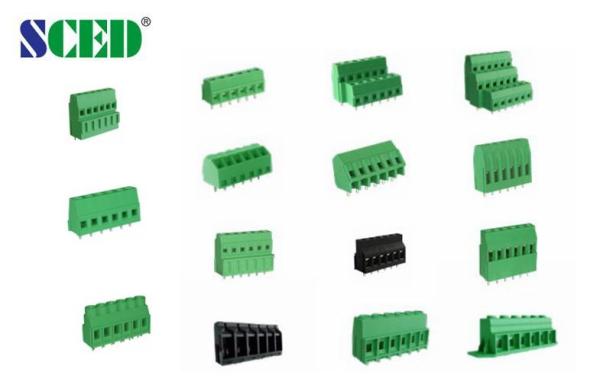

5.0mm PCB Terminal Block 10A Green PA66 Brass 300V 2-28 Poles

Detailed product Description:

Pitch 5.0mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Deck; □Double decks; □Triple decks

Standard color: Green. Other colors also available.

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Communication, Electric Power, Security, Medicine Equipment etc.

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300/10

300/10

Wire Range AWG

12-26

12-26

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

250 / 10

400 / 10

630 / 10

Rated Surge Voltage KV

4

4

4

Rated Connecting Capacity mm2

2.5

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data

PCB Hole Diameter mm

φ1.4

Stripping Length mm

6-7

Screw / Torque / lbf.in

M3 / 4.4-5.3

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
