5.08mm 300V pluggable terminal block connector 18A PA66 Green Male Plug Terminal
5.08mm 300V pluggable terminal block connector 18A PA66 Green Male Plug Terminal
5.08mm 300V pluggable terminal block connector 18A PA66 Green Male Plug Terminal
5.08mm 300V pluggable terminal block connector 18A PA66 Green Male Plug Terminal
Specifications
Brand Name :
SCED
Model Number :
TP508H-04
Certification :
UL, CE
Place of Origin :
Shenzhen, China
MOQ :
500
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Delivery Time :
7-20 working days
Packaging Details :
Standard Export Carton
Type :
PCB Type
Color :
Greem
Item :
Plug in type, male type
material :
PA66
Pitch :
5.08mm
Poles :
2-18 poles
Description

5.08mm 300V pluggable terminal block connector 18A PA66 Green Male Plug Terminal

□Right angle wire inlet; □Vertical wire inlet; ■45 degree wire inlet

■Single Level; □Double Levels; □Triple Levels

This male header match with female plugs’ series: TP508P-00, TP508P-02, TP508P-03, TP508P-04, TP508P-05, TP508H-10, TP508H-10V

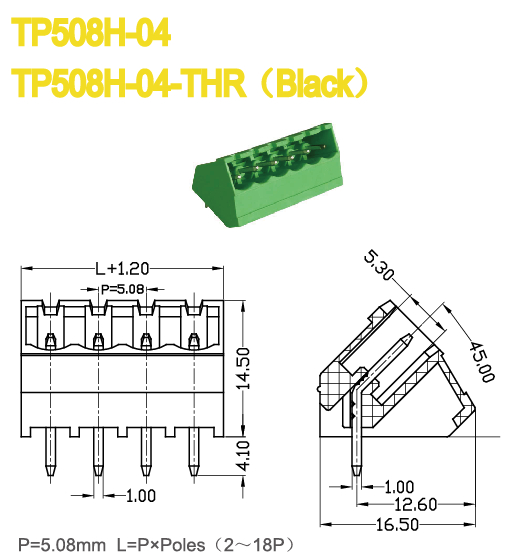

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/18 300/10
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 250 / 18 400 / 18 500 / 18
Rated Surge Voltage KV 4 4 4
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Terminal / Plating Brass / Tin Plated
Other Data
PCB Hole Diameter mm φ1.4
Pin Dimension mm 1.0 x 1.0

5.08mm 300V pluggable terminal block connector 18A PA66 Green Male Plug Terminal

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Competitive Advantage:

  • Stable good quality
  • Competitive price
  • Quickly response
  • Full range products for selection
  • Flexible to design the exact part per customers’ demand

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Tag:

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors
