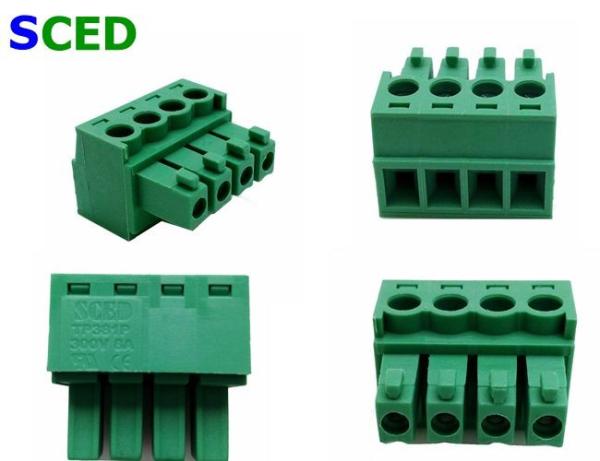

300V 8A PCB Plug In Terminal Block 3.81mm Pitch Pluggable Terminal Block
300V 8A PCB Plug In Terminal Block 3.81mm Pitch Pluggable Terminal Block
300V 8A PCB Plug In Terminal Block 3.81mm Pitch Pluggable Terminal Block
300V 8A PCB Plug In Terminal Block 3.81mm Pitch Pluggable Terminal Block
300V 8A PCB Plug In Terminal Block 3.81mm Pitch Pluggable Terminal Block
300V 8A PCB Plug In Terminal Block 3.81mm Pitch Pluggable Terminal Block
Specifications
Brand Name :
SCED
Model Number :
TP381P-00
Certification :
UL, CE
Place of Origin :
Shenzhen, China
MOQ :
500
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Delivery Time :
7-20 working days
Packaging Details :
Standard Export Carton
Imflammability :
UL94, V-0
Housing Material :
PA66
Pitch :
3.81mm
Current :
8A
Screw :
Steel
Contactor :
Phosphor Bronze
Description

300V 8A PCB Plug In Terminal Block 3.81mm Pitch Pluggable Terminal Block

Descripition:

1. Material: Plastic housing is PA66(UL94 V-0),

2. Operating temperature: -40 ℃~+105℃,

3. Clamp cage and header terminal using brass

4. Spring clamp with phophor bronze

5. Screw using high quality steel

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 8

Wire Range AWG

16-30

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

160 / 8

160 / 8

320 / 8

Rated Surge Voltage KV

2.5

2.5

2.5

Rated Connecting Capacity mm2

1.5

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Phosphor Bronze / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data

Stripping Length mm

7

Screw / Torque / lbf.in

M2 / 2-2.2

Standard color: Green. Other colors also available, please refer to below How to Order and select the color you want.

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

300V 8A PCB Plug In Terminal Block 3.81mm Pitch Pluggable Terminal Block

300V 8A PCB Plug In Terminal Block 3.81mm Pitch Pluggable Terminal Block300V 8A PCB Plug In Terminal Block 3.81mm Pitch Pluggable Terminal Block

300V 8A PCB Plug In Terminal Block 3.81mm Pitch Pluggable Terminal Block

300V 8A PCB Plug In Terminal Block 3.81mm Pitch Pluggable Terminal Block
