5.08mm Male Female Plug In Terminal Block 300V 8A 2P - 24P For Servo Drive
5.08mm Male Female Plug In Terminal Block 300V 8A 2P - 24P For Servo Drive
5.08mm Male Female Plug In Terminal Block 300V 8A 2P - 24P For Servo Drive
5.08mm Male Female Plug In Terminal Block 300V 8A 2P - 24P For Servo Drive
Specifications
Brand Name :
SCED
Model Number :
TP508P-08
Certification :
UL, CE
Place of Origin :
Shenzhen, China
MOQ :
500
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Delivery Time :
7-20 working days
Packaging Details :
Standard Export Carton
Pitch :
5.08mm
Material :
PA66
Color :
Black
Poles :
2-24 poles
Rated Voltage :
300V
Rated Current :
18A
Description

5.08mm Male Female Plug In Terminal Block 300V 18A 2P - 24P For Servo Drive

Single Level; □Double Levels; □Triple Levels

This female plug match with male sockets’ series: TP508H-08

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/18 300/18
Wire Range AWG 12-30 12-30
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 250 / 18 320 / 18 630 / 18
Rated Surge Voltage KV 4 4 4
Rated Connecting Capacity mm2 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Contactor / Plating Phosphor Bronze / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 7
Screw / Torque / lbf.in M3 / 4.4-5.3

5.08mm Male Female Plug In Terminal Block 300V 8A 2P - 24P For Servo Drive

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

Competitive Advantage:

Stable good quality

Competitive price

Quickly response

Full range products for selection

Flexible to design the exact part per customers’ demand

Applications:

servo drive, security communication, energy conservation, etc.

Tag:

Pluggable Terminal Blocks, Plug-in Terminal Blocks, Terminal Block Connectors, PCB Connectors

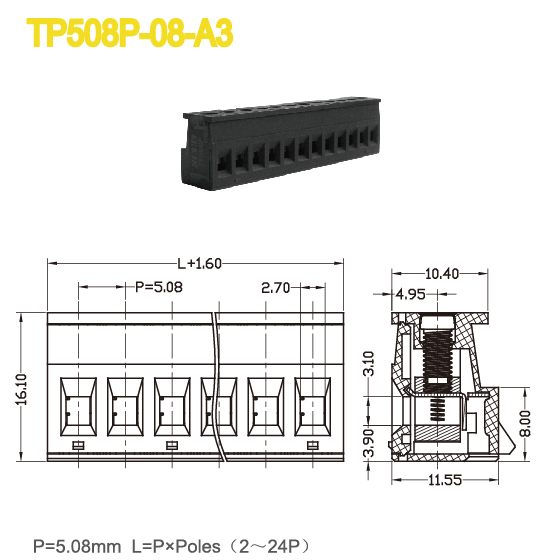

Drawing Photo:

5.08mm Male Female Plug In Terminal Block 300V 8A 2P - 24P For Servo Drive

5.08mm Male Female Plug In Terminal Block 300V 8A 2P - 24P For Servo Drive
