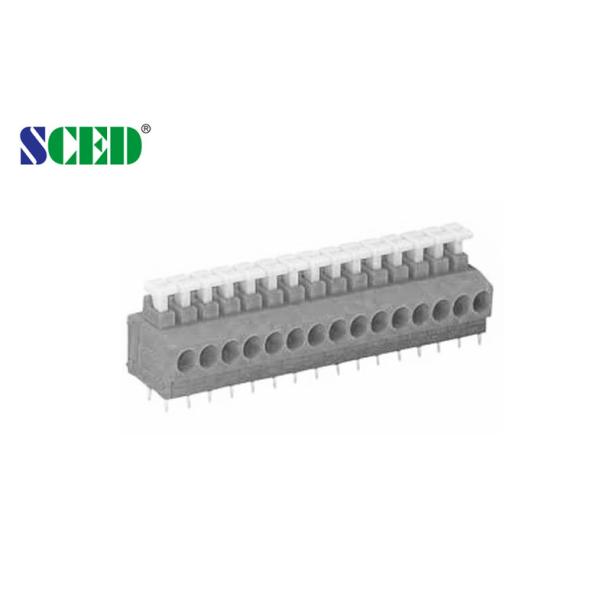

300v Screwless Spring Terminal Block Pitch 3.81mm Spacing Pa66 With Push Button
300v Screwless Spring Terminal Block Pitch 3.81mm Spacing Pa66 With Push Button
300v Screwless Spring Terminal Block Pitch 3.81mm Spacing Pa66 With Push Button
300v Screwless Spring Terminal Block Pitch 3.81mm Spacing Pa66 With Push Button
Specifications
Brand Name :
SCED
Model Number :
TJ381-05
Certification :
UL, CE
Place of Origin :
Shenzhen, China
MOQ :
500
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Packaging Details :
Standard Export Carton
Item :
Spring type
Material :
PA66
Wire range :
16-20 AWG
Rate Voltage :
300V
Rate Current :
10A
Poles :
1 P Any poles
Description

300v Screwless Spring Terminal Block Pitch 3.81mm Spacing Pa66 With Push Button

Quick Details:

1. Multiple pitch: 2.54mm, 3.50mm,3.81mm,5.00mm,5.08mm,7.62mm
2. Diverse wire inlet direction
3. Compact structure, PA66 material
4. Simple operating, just press the push button, let the wire inlet
5. Strong vibration resistance

Spec.:

1. Pitch:3.81mm

2. Rated Voltage/ Current: 300V/10A

3. Wire Range: 16-20 AWG

Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300/10

Wire Range AWG

16-20

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

320 / 10

320 / 10

630 / 10

Rated Surge Voltage KV

4

4

4

Rated Connecting Capacity mm2

1.5

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Spring / Plating

Stainless Steel / -

Terminal / Plating

Phosphor Bronze / Tin Plated

Other Data

PCB Hole Diameter mm

φ1.2

Stripping Length mm

9-10

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Applications:

PCB,

Frequency Converters,

Server Site, Switch,

Power Supply, etc..

Drawing Photo:

300v Screwless Spring Terminal Block Pitch 3.81mm Spacing Pa66 With Push Button

Spring series

300v Screwless Spring Terminal Block Pitch 3.81mm Spacing Pa66 With Push Button
