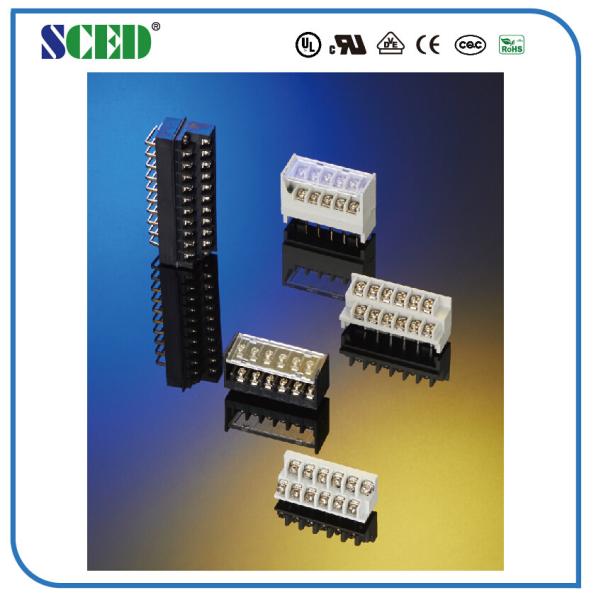

25A Brass Electrical Terminal Block 300V With Flange PBT 11mm Pitch Black
25A Brass Electrical Terminal Block 300V With Flange PBT 11mm Pitch Black
25A Brass Electrical Terminal Block 300V With Flange PBT 11mm Pitch Black
25A Brass Electrical Terminal Block 300V With Flange PBT 11mm Pitch Black
25A Brass Electrical Terminal Block 300V With Flange PBT 11mm Pitch Black
25A Brass Electrical Terminal Block 300V With Flange PBT 11mm Pitch Black
Specifications
Brand Name :
SCED
Model Number :
TB1100-01F
Certification :
UL,CE
Place of Origin :
China,Guangdong
MOQ :
500 Piece/Pieces
Price :
USD 0.045-0.089
Payment Terms :
L/C, T/T
Supply Ability :
1000000 Pole/Poles per Month
Delivery Time :
5-20 Working Days
Packaging Details :
Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm
Pitch :
11mm
Color :
Black
Pole :
2-20 poles
Voltage :
300V
Current :
25A
Wire Inlet :
Right angle
Rated Surge Voltage :
No abnormal within 1 minute
Inflammability Class :
UL94, V-0
Insulation Resistance :
Above DC500V, 500MΩ
Description

25A Brass Electrical Terminal Block 300V With Flange PBT 11mm Pitch Black

Detailed product Description:

Pitch 11.00mm, 300V 30A, 2P-20P, Barrier Terminal blocks, power terminal blocks

■Right angle wire inlet; □Vertical wire inlet; □45 degree wire inlet

■Single Level; □Double levels; □Triple levels

Standard color: Black. Other colors also available.

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300 / 30 300 / 10
Wire Range AWG 10-18 10-18
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 630 / 41 800 / 41 1000 / 41
Rated Surge Voltage KV 6 6 6
Rated Connecting Capacity mm2 6
Material
Insulation Material / Inflammability Class PBT / UL94, V-0
Terminal / Plating Brass /Tin Plated
Screw / Plating Steel / Nickel Plated
Other Data
PCB Hole Diameter mm φ2.6
Stripping Length mm 9-10
Screw / Torque / lbf.in M 4 / 10-13

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
