7.62mm Electrical Barrier Terminal Block for 300V 15A Screw Fence Connector
7.62mm Electrical Barrier Terminal Block for 300V 15A Screw Fence Connector
7.62mm Electrical Barrier Terminal Block for 300V 15A Screw Fence Connector
7.62mm Electrical Barrier Terminal Block for 300V 15A Screw Fence Connector
Specifications
Brand Name :
SCED
Model Number :
TB762-01V
Certification :
UL, CE
Place of Origin :
Shenzhen, China
MOQ :
500
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Delivery Time :
7-20 working days
Packaging Details :
Standard Export Carton
Pitch :
7.62mm
Color :
Black
Number Of Contacts :
2P-24P
Wire Range :
14-22AWG
Rated Voltage :
300V
Rated Current :
15A
Key Words :
Barrier terminal block, Power terminal block
Applications :
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control
Description

7.62mm Electrical Barrier Terminal Block for Server Site 300V 15A Screw Fence Connector

Applications:

PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control,
Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military,
Elevator, etc..

2-24Poles

□Right angle wire inlet; ■Vertical wire inlet; □45 degree wire inlet
■Single Level; □Double levels; □Triple levels

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you

want.


Barrier terminal blocks, Power terminal blocks, Electrical terminal Blocks, Terminal blocks suppliers

How to order:

7.62mm Electrical Barrier Terminal Block for 300V 15A Screw Fence Connector


Parameter:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300/15

300/10

Wire Range AWG

14-22

14-22

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

250 / 24

320 / 24

400 / 24

Rated Surge Voltage KV

4

4

4

Rated Connecting Capacity mm2

2.5

Material

Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data

PCB Hole Diameter mm

φ1.5

Stripping Length mm

7-8

Screw / Torque / lbf.in

M 3 / 5-7


Competitive Advantage:

1. Stable good quality

2. Competitive price

3. Quickly response

4. Full range products for selection

5. Flexible to design the exact part per customers’ demand

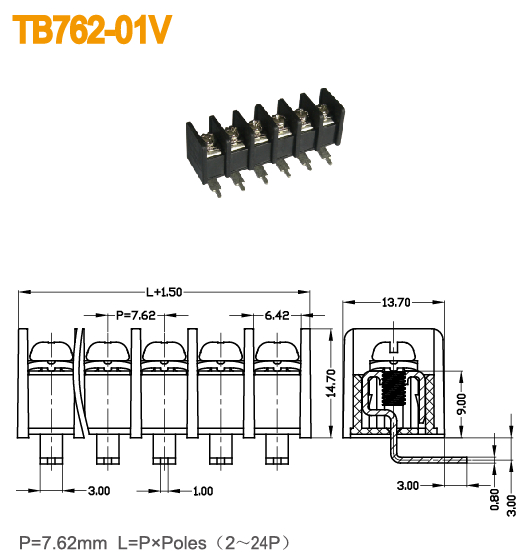

Drawing Photo

7.62mm Electrical Barrier Terminal Block for 300V 15A Screw Fence Connector
