PCB Mount Terminal Block Pitch 5.0mm 300v 10a Brass Clamp Cage Connection
PCB Mount Terminal Block Pitch 5.0mm 300v 10a Brass Clamp Cage Connection
PCB Mount Terminal Block Pitch 5.0mm 300v 10a Brass Clamp Cage Connection
PCB Mount Terminal Block Pitch 5.0mm 300v 10a Brass Clamp Cage Connection
Specifications
Brand Name :
SCED
Model Number :
TJ500-00
Certification :
UL, CE
Place of Origin :
Shenzhen, China
MOQ :
500
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Packaging Details :
Standard Export Carton
Pitch :
5.00
Poles :
2P-24P
Voltage :
300v
Current :
10a
Color :
Green
Screw :
M3
Description

PCB Mount Terminal Block Pitch 5.0mm 300v 10a Brass Clamp Cage Connection

Quick Detail

Pitch: 5.00mm

Poles: 2P-24P

Voltage/ Current: 300V/10A

Wire range: 12-26 AWG

Materials: Plastic housing is PA66 (UL94 V-0)

Operating temperature: -40℃~+105℃

Clamp cage and terminal is high quality brass or copper

Screw is high-quality steel M3

Spec.

1. PCB Euro Terninal Blocks is widely used in industry and automatic control, power, frequency conversion and etc.

2. It is consisted of plastic housing, clamp cage, terminal and screw.

3. It can be stacked to be different poles via 2P and 3P,

4. Wire inlet Direction: 45 90 180degree

4. Materials: Plastic housing is PA66(UL94 V-0) Operating temperature: -40~+105 Clamp cage and terminal is high quality brass or copper screw is high-quality steel

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300 / 10

300 / 10

Wire Range AWG

12-26

12-26

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

250 / 10

400 / 10

630 / 10

Rated Surge Voltage KV

4

4

4

Rated Connecting Capacity mm2

2.5

Material

Insulation Material / Inflammability Class

PA66 / UL94, V-0

Clamp Cage / Plating

Brass / Nickel Plated

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Zinc Plated

Other Data

PCB Hole Diameter mm

φ1.4

Stripping Length mm

6-7

Screw / Torque / lbf.in

M3 / 4.4-5.3

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Applications:

PCB, Frequency Converters,

Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation,

Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

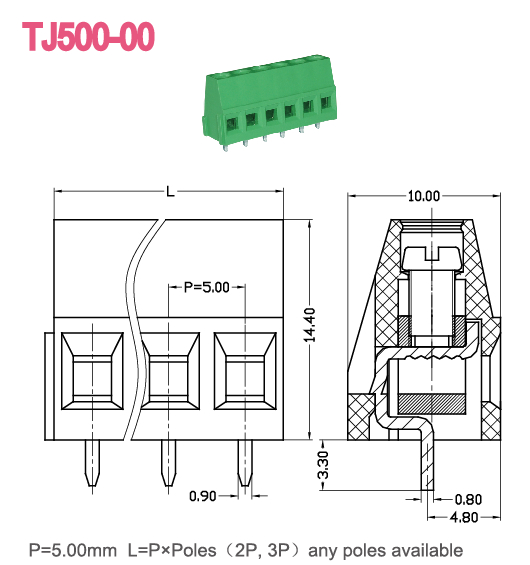

Drawing Photo and Product photo:

PCB Mount Terminal Block Pitch 5.0mm 300v 10a Brass Clamp Cage Connection

PCB Mount Terminal Block Pitch 5.0mm 300v 10a Brass Clamp Cage Connection
