Electrical Barrier Terminal Block 600V 40A OEM / ODM For INVERTERS
Electrical Barrier Terminal Block 600V 40A OEM / ODM For INVERTERS
Electrical Barrier Terminal Block 600V 40A OEM / ODM For INVERTERS
Electrical Barrier Terminal Block 600V 40A OEM / ODM For INVERTERS
Specifications
Brand Name :
SCED
Model Number :
TB1300-00-C
Certification :
UL, CE
Place of Origin :
Shenzhen, China
MOQ :
500
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Delivery Time :
7-20 working days
Packaging Details :
Standard Export Carton
Material :
PBT brass
Color :
Black
Screw :
M4
Torque :
10.6-13 Ibf.in
Voltage :
600V
Current :
40A
Description

Electrical Barrier Terminal Block 600V 40A OEM / ODM For INVERTERS

1. Single screw Level;

2. Right angle wire inlet;

3. Clamp cage and terminal is high quality brass or copper

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

600 / 40

600 / 40

600 / 5

Wire Range AWG

20-8

20-8

20-8

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

800 / 40

1000 / 40

1000 / 40

Rated Surge Voltage KV

8

8

8

Rated Connecting Capacity mm2

4

Material

Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass /Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data

PCB Hole Diameter mm

φ2.5

Stripping Length mm

10-11

Screw / Torque / lbf.in

M 4 / 10.6-13

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Applications:

1. PCB. INVERTERS

2. Frequency Converters, Server Site, Switch,

3.Power Supply, Electric Lighting, Industry Control, Automation, etc..

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand

Electrical Barrier Terminal Block 600V 40A OEM / ODM For INVERTERS

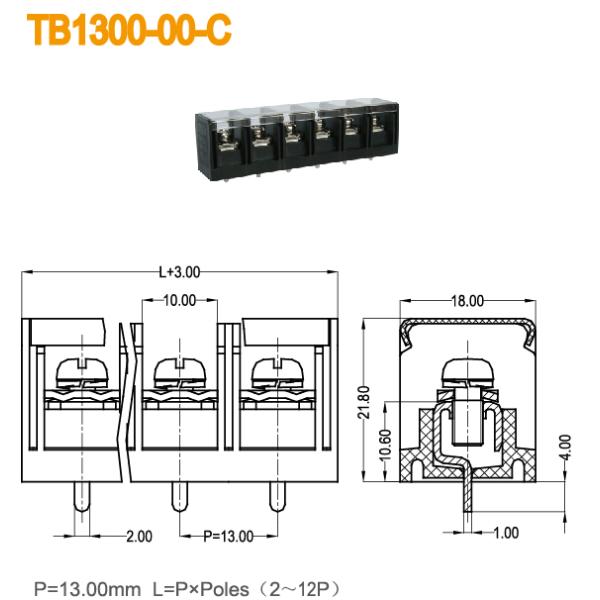

Photos and Drawing:

Electrical Barrier Terminal Block 600V 40A OEM / ODM For INVERTERS

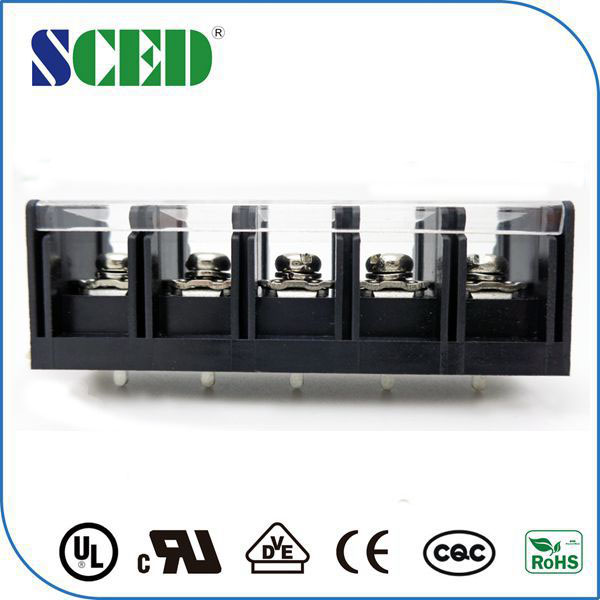

Photo:

Electrical Barrier Terminal Block 600V 40A OEM / ODM For INVERTERS
