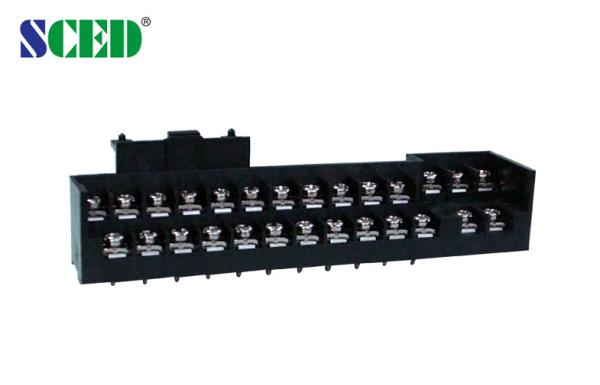

Pitch 8.20mm Barrier Type Terminal Block Customize ODM Project China Supplier
Pitch 8.20mm Barrier Type Terminal Block Customize ODM Project China Supplier
Pitch 8.20mm Barrier Type Terminal Block Customize ODM Project China Supplier
Pitch 8.20mm Barrier Type Terminal Block Customize ODM Project China Supplier
Specifications
Brand Name :
SCED
Model Number :
TB820-00
Certification :
UL, CE
Place of Origin :
Shenzhen, China
MOQ :
500
Price :
Get latest price
Payment Terms :
T/T
Supply Ability :
1KK poles each monthly
Delivery Time :
7-20 working days
Packaging Details :
Standard Export Carton
Pitch :
8.20mm
Poles :
27P
Rated voltage :
300V
Rated current :
10A
Material :
PBT
Sample :
Free
Description

Pitch 8.20mm Barrier Type Terminal Block Customize ODM Project China Supplier

Details:

Pitch: 8.20mm

Poles: 27pin

Current: 10A

Voltage: 300V

Spec.

1. Multiple Pitch: 7.62mm,8.25mm,8.70mm,9.525mm,10.00mm,11.00mm,
13.00mm,13.50mm,14.50mm,20.00mm,21.00mm


2. With or without cover, one or two rows, from one level to three levels, etc.

3. Materials: Plastic housing is PBT(UL94 V-0)


4. Operating temperature: -40℃~+120℃


5. Clamp cage and terminal is high quality brass or copper screw is high-quality steel

Parameter and Drawing Specifications:

UL Technical Data

B

C

D

Rated Voltage / Current V/A

300/10

300/10

Wire Range AWG

14-22

14-22

IEC Technical Data

Overvoltage Category

Ⅲ

Ⅲ

Ⅱ

Contamination Class

3

2

2

Rated Voltage / Current V/A

320 / 24

320 / 24

400 / 24

Rated Surge Voltage KV

4

4

4

Rated Connecting Capacity mm2

2.5

Material

Insulation Material / Inflammability Class

PBT / UL94, V-0

Terminal / Plating

Brass / Tin Plated

Screw / Plating

Steel / Nickel Plated

Other Data

PCB Hole Diameter mm

φ1.6

Stripping Length mm

6-7

Screw / Torque / lbf.in

M 3 / 5-7

Standard color: Black. Other colors also available, please refer to below How to Order and select the color you want.

How to order:

Applications:

PCB, Frequency Converters, Server Site, Switch,

Power Supply, Electric Lighting, Industry Control, Automation,

Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc..

Competitive Advantage:

  1. Stable good quality
  2. Competitive price
  3. Quickly response
  4. Full range products for selection
  5. Flexible to design the exact part per customers’ demand
