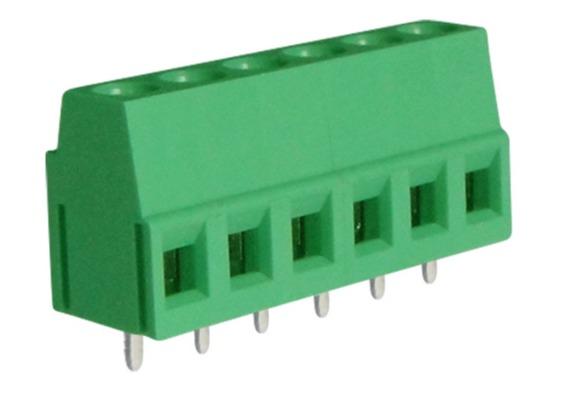

Pitch 5.08mm 300V 10A PCB Screw Terminal Block Euro Type Raising Series
Pitch 5.08mm 300V 10A PCB Screw Terminal Block Euro Type Raising Series
Pitch 5.08mm 300V 10A PCB Screw Terminal Block Euro Type Raising Series
Pitch 5.08mm 300V 10A PCB Screw Terminal Block Euro Type Raising Series
Specifications
Brand Name :
SCED
Model Number :
TJ508-14
Certification :
CE,UL
Place of Origin :
Guangdong, China
MOQ :
1000 Piece/Pieces
Price :
USD 0.042-0.082
Payment Terms :
L/C, T/T
Supply Ability :
1000000 Pole/Poles per Month
Delivery Time :
5-20 Working Days
Packaging Details :
Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Screw :
M3
Pitch :
5.08mm
Color :
Green
Current :
10A
Voltage :
300V
Poles :
2-24 poles
Clamp Cage :
Brass
Rated Surge Voltage :
No abnormal within 1 minute
Insulation Resistance :
Above DC500V, 500MΩ
Contact Resistance :
Less than 8mΩ
Description

Detailed product Description:

Pitch 5.08mm, 300V 10A, 2P-24P, PCB Terminal blocks, PCB screw terminal blocks, Euro type Raising series

Wire Inlet: ■Right angle wire inlet

Decks: ■Single Deck

Standard color: Green.

Other colors also available, please refer to below How to Order and select the color you want.

Pitch 5.08mm 300V 10A PCB Screw Terminal Block Euro Type Raising Series

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 300/10 300/10
Wire Range AWG 12-26 12-26
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 250 / 10 400 / 10 630 / 10
Rated Surge Voltage KV 4 4 4
Rated Connecting Capacity mm2 2.5
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Brass / Nickel Plated
Terminal / Plating Brass / Tin Plated
Screw / Plating Steel / Zinc Plated
Other Data
PCB Hole Diameter mm φ1.4
Stripping Length mm 6-7
Screw / Torque / lbf.in M3 / 4.4-5.3


Applications:

Normally our products will be used in a lot of fileds and industries, for example:

Medical Equipment, PCB, Military, Switch, Communication, Automation, Power Supply, Industrial Control, Security, Frequency Converters and Server Site and so on.

Competitive Advantage:

  1. OEM an
  2. d ODM service
  3. More than 1000 models for selection
  4. High quality but competitive price
  5. Good after-sales service

Pitch 5.08mm 300V 10A PCB Screw Terminal Block Euro Type Raising Series
