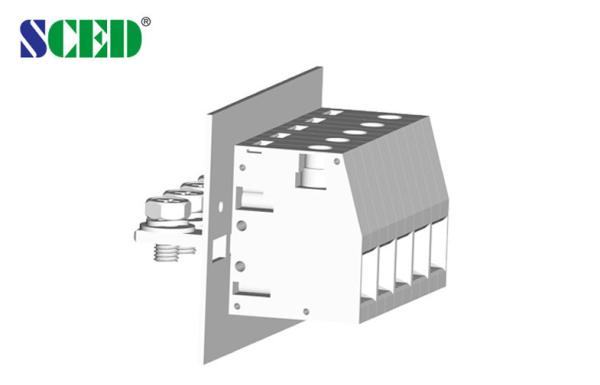

18.8mm Width 150A Feed Through Panel Terminal Blocks PA66 Plastic
18.8mm Width 150A Feed Through Panel Terminal Blocks PA66 Plastic
18.8mm Width 150A Feed Through Panel Terminal Blocks PA66 Plastic
18.8mm Width 150A Feed Through Panel Terminal Blocks PA66 Plastic
Specifications
Brand Name :
SCED
Model Number :
TR-50N-03
Certification :
UL, CE
Place of Origin :
Guangdong China
MOQ :
1000 Piece/Pieces
Price :
USD 0.96- 1.91 Per Pole
Payment Terms :
T/T, L/C
Supply Ability :
1000000 Pole/Poles per Month
Delivery Time :
5-20 Working Days
Packaging Details :
Standard Master Carton Dimension: 341 x 273 x 198mm; Standard Inner box dimension: 168 x 134 x 47mm.
Terminal Width :
18.8mm
Current :
150A
Voltage :
600V
Wire Range :
6-1/0 AWG
Plastic :
PA66
Inflammability Class :
UL94-V0
Clamp Cage :
Steel
Strippng Length :
24mm
Screw :
M6
Torque :
38-40 lbf.in
Description

150A Through Panel Terminal Blocks 600V 6-1/0 AWG M6 Screw 18.8mm Terminal Width

Detailed product Description:

.

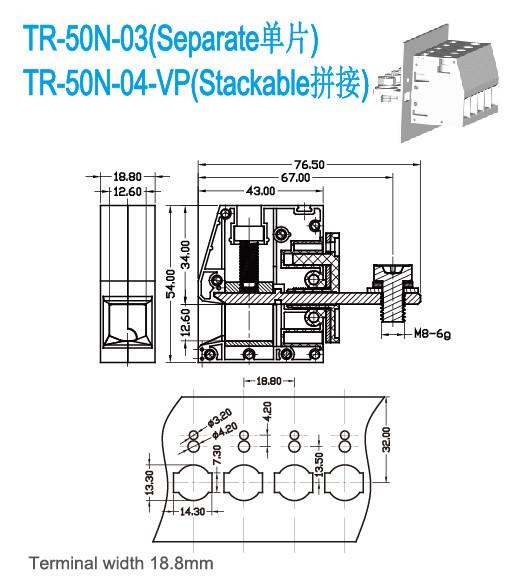

Parameter and Drawing Specifications:

UL Technical Data B C D
Rated Voltage / Current V/A 600 / 150 600 / 5
Wire Range AWG 6-1/0 6-1/0
IEC Technical Data
Overvoltage Category Ⅲ Ⅲ Ⅱ
Contamination Class 3 2 2
Rated Voltage / Current V/A 830 / 150 1000 / 150 1000 / 150
Rated Surge Voltage KV 8 8 8
Rated Connecting Capacity mm2 50
Material
Insulation Material / Inflammability Class PA66 / UL94, V-0
Clamp Cage / Plating Steel / Nickel Plated
Conduction Board / Plating Copper / Nickel Plated
Screw / Plating Steel / Zinc Plated
Other Data
Stripping Length mm 24
Screw / Torque / lbf.in M6 / 38-40

Pitch 18.8mm, 600V 150A, 2P-24P, Through Panel Terminal Blocks / Feed-Through Terminal Blocks / Bulkhead connectors

■Right angle wire inlet

■Single Deck;

Standard color: Grey. Other colors are available, as well.

Applications:

1. They can be used in Communication, Medical Equipment, Frequency Converters, Power Supply

2. Besides, they can be also used in PCB, Server Site, Indutrial Control and Automation etc.

Competitive Advantage:

  1. OEM and ODM service
  2. High quality and reasonable price
  3. Good after-sales service
  4. 10 main series and more than 10000 models18.8mm Width 150A Feed Through Panel Terminal Blocks PA66 Plastic
