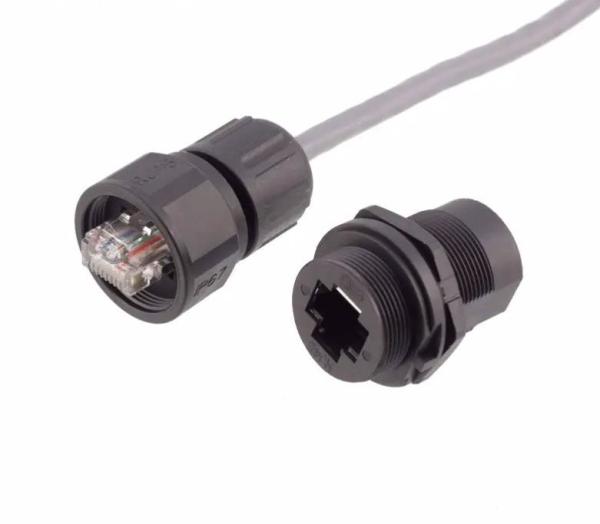

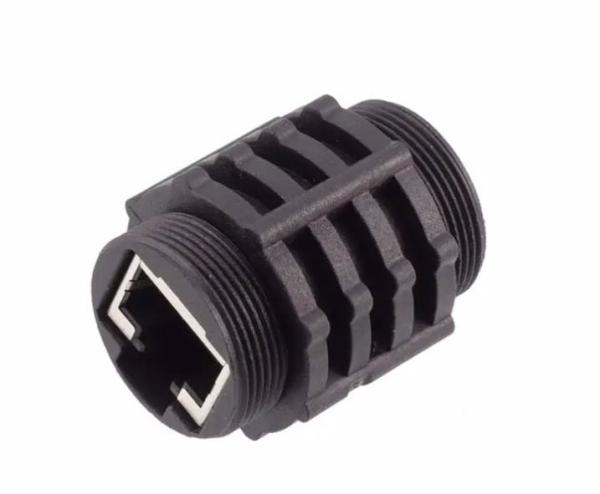

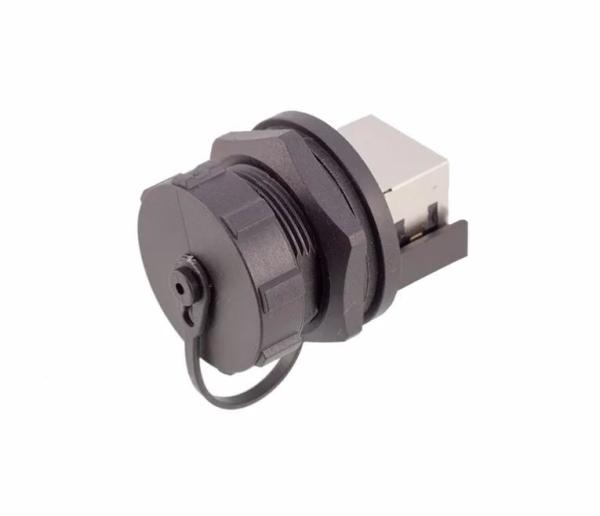

RJ45 CAT6 / 5 Panel Mount Cable IP67 Waterproof Connector Female To Female Black
RJ45 CAT6 / 5 Panel Mount Cable IP67 Waterproof Connector Female To Female Black
RJ45 CAT6 / 5 Panel Mount Cable IP67 Waterproof Connector Female To Female Black
RJ45 CAT6 / 5 Panel Mount Cable IP67 Waterproof Connector Female To Female Black
RJ45 CAT6 / 5 Panel Mount Cable IP67 Waterproof Connector Female To Female Black
RJ45 CAT6 / 5 Panel Mount Cable IP67 Waterproof Connector Female To Female Black
RJ45 CAT6 / 5 Panel Mount Cable IP67 Waterproof Connector Female To Female Black
RJ45 CAT6 / 5 Panel Mount Cable IP67 Waterproof Connector Female To Female Black
Specifications
Brand Name :
NO MARK
Model Number :
Mini USB type
Certification :
CE
Place of Origin :
CHINA
MOQ :
30
Price :
0.5~~1
Payment Terms :
T/T
Supply Ability :
5000 per day
Delivery Time :
5-8 days
Packaging Details :
1 full set in a mini plastic box 200pcs in a box
Material :
PA66
Color :
Black
type :
Mini USB type
Waterproof :
IP67
Description
Essential details
Model Number:
Type:
RJ45
Place of Origin:
GuangDong, China
Brand:
NO MARK
Packaging:
5pcs/Bag
Description:
RJ45 connector
D/C:
AC
Color:
Black
Termination:
Solder/PCB
Housing material:
Plastic
Certification:
CE/ROHS
Durability:
≥750 cycles
Temperature range:
-30°C--+105°C
Screw:
CAT5E CAT6A
Coupling:
Bayonet or Threaded
cable OD:
5.5mm~7mm

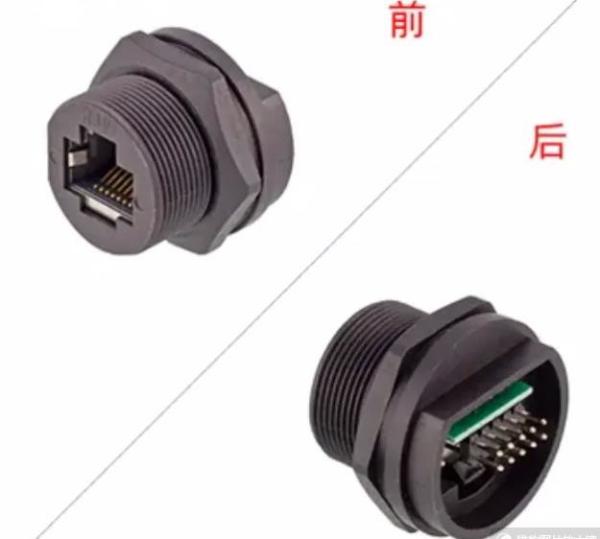

This is RJ45 type; female base; can assembly with board or assembly with wire, cable;

Have two types; one is screws; others is flange

Product size: 20.5x20.5x22.6mm

Type -C female socket;

Black color

Waterproof IP67

Product advantages:
RJ45 is simply disassembled and assembled by locking the tail nut, so that the connector and the cable form a
perfect fit, not easy to fall off, and its waterproof effect can achieve to IP67.
● good performance: use standard super five pure copper four stranded double wire and crystal head
● easy connection: no welding work, no installation tools, the standard crystal head can be directly inserted, can achieve rapid installation and use.
● waterproof and dustproof meet the requirements of IP67 standard.
● threaded connection, safe and reliable, impact, vibration, tensile
● anti-electromagnetic interference protection
●since the plug and socket do not need to break or interrupt any of the original wiring structure, there is no signal attenuation.
● miniaturization, saving installation space features
● convert existing Ethernet connectors into dust-proof, waterproof, fast connection/separation, and efficient cable assembly for normal operation and use in harsh environments.
Product application: it is widely used in video transmission, transformer and network signal transmission equipment in the market; also in communication field, outdoor display screen, home network port, signal transmitting and receiving equipment, 4G network field, etc
