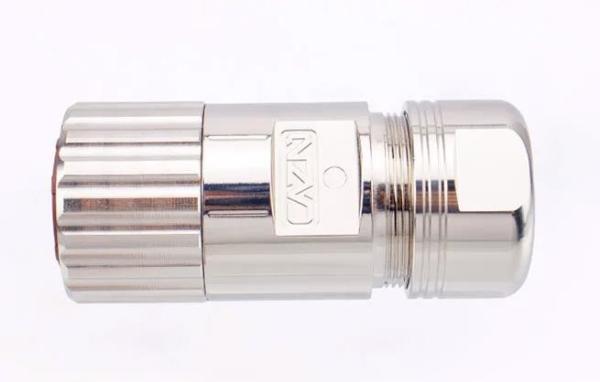

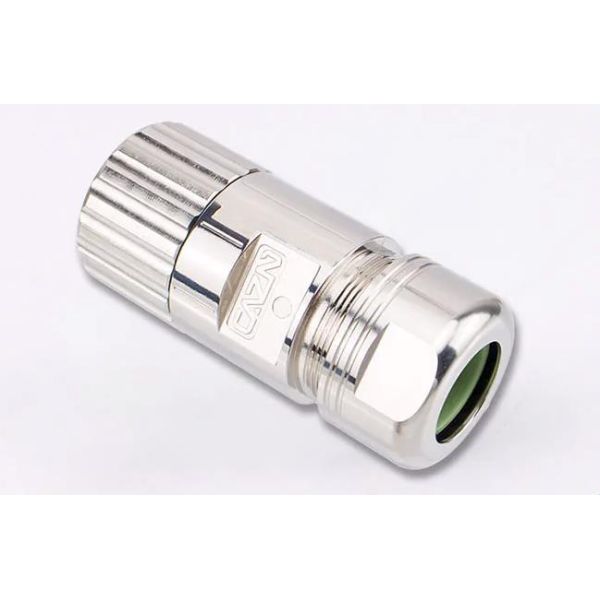

30A 70A Large Motor Connector 6 / 8pins Straight Female Metal Plug Servo Power Connector M40
30A 70A Large Motor Connector 6 / 8pins Straight Female Metal Plug Servo Power Connector M40
30A 70A Large Motor Connector 6 / 8pins Straight Female Metal Plug Servo Power Connector M40
30A 70A Large Motor Connector 6 / 8pins Straight Female Metal Plug Servo Power Connector M40
30A 70A Large Motor Connector 6 / 8pins Straight Female Metal Plug Servo Power Connector M40
30A 70A Large Motor Connector 6 / 8pins Straight Female Metal Plug Servo Power Connector M40
30A 70A Large Motor Connector 6 / 8pins Straight Female Metal Plug Servo Power Connector M40
30A 70A Large Motor Connector 6 / 8pins Straight Female Metal Plug Servo Power Connector M40
Specifications
Brand Name :
NO MARK
Model Number :
SM-54346-0070
Certification :
CE
Place of Origin :
CHINA
MOQ :
30
Payment Terms :
T/T
Supply Ability :
500 per day
Delivery Time :
5-8 days
Packaging Details :
1 full set in a mini plastic box 200pcs in a box
ITEM# :
M40
Material :
Zinc alloy
Color :
silver color
Heart :
in red color
Silicone ring :
can replaceable
Description

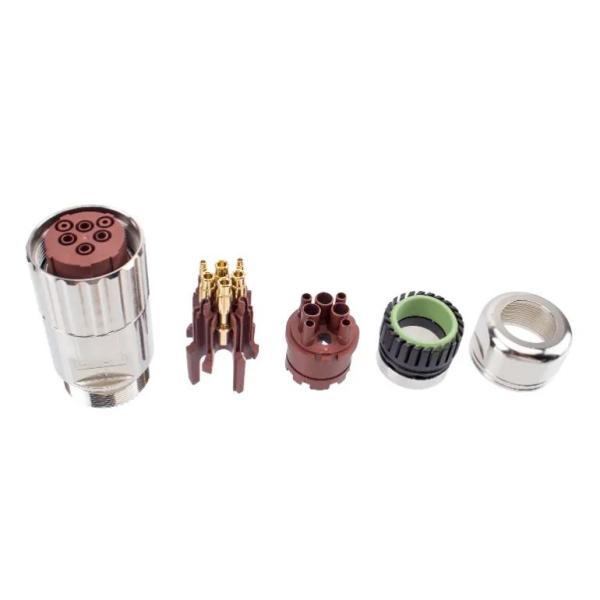

30A 70A Large motor Connector 6 8Pins Straight Female Assembly Metal Plug Servo Power Connector M40
Essential details
Place of Origin:
Guangdong, China
Brand Name:
NO MARK
Model Number:
M40 6PIN 8PIN
Type:
M40
Application:
Power
Gender:
Female, Female
Coupling:
Screw/Threaded
Shell Material:
Zinc Alloy Nikel-plated
Insert material:
PA66 UL94-V0
Contact material:
Brass, gold-plated
PINS:
6P, 8P
Cable diameter:
16mm-26mm
Keywords:
CSTA263NN00450001000,CSTA264NN00450001000
Temperature range:
-40°C -- +130°C

Shell Material:
Zinc Nickel-plated
Type:
M40 Female Plug(Assembly)
Insert Material:
PA66 UL 94-V0
Coupling:
Threaded
Contact Material:
Brass, gold-plated
IP Level:
IP67/IP68
Applicable Temp.:
-40℃~+130℃
Termination:
Crimp
Durability:
More than 50cycles
Wire diameter:
16~26mm
Rated voltage:
AC/DC 630V/250V
Rated current:
70A/30A
Contact resistance:
≤1mΩ
Insulation resistance:
≥100mΩ
Application:
Aerospace, navigation, communication, medical, automobile, instrumentation, lighting, audio, servo motor, etc

The main body adopts high quality Zinc alloy nicked plating.

High temprerature resistance anti-aging durable

Hight toughness clamping jaws wide range of clamping wires; Anti-tension strong water proof;

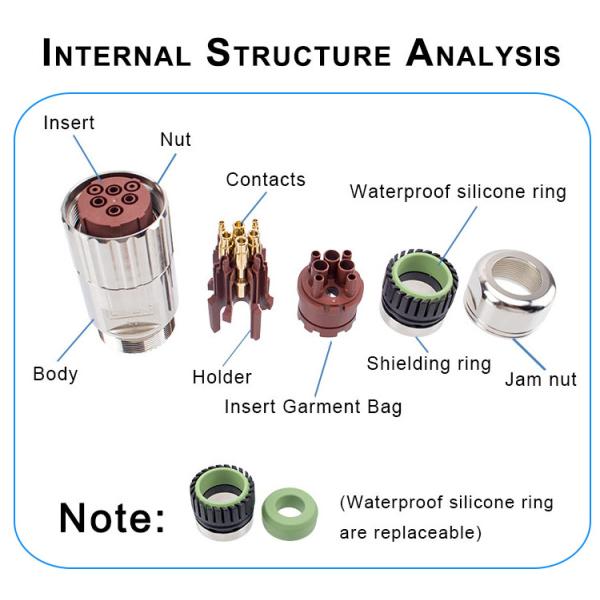

NOTE: Waterproof silicone ring are replaceable;

Exquisite crafts manship in place attention to every detail treatment precise and neat threads , smooth edges;

30A 70A Large Motor Connector 6 / 8pins Straight Female Metal Plug Servo Power Connector M40

30A 70A Large Motor Connector 6 / 8pins Straight Female Metal Plug Servo Power Connector M40

30A 70A Large Motor Connector 6 / 8pins Straight Female Metal Plug Servo Power Connector M40

P

Supply SM-6P SM-10P SM-14P SM-26P SM-50P So on many itmes and many servo connectors
