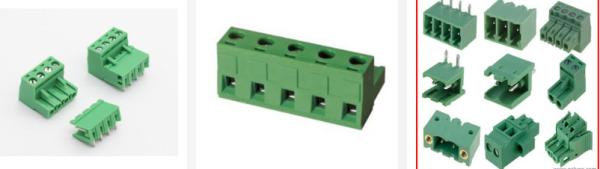

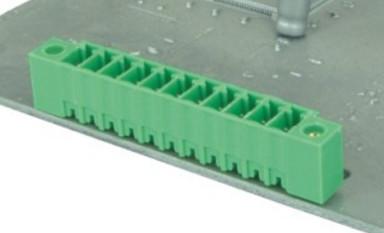

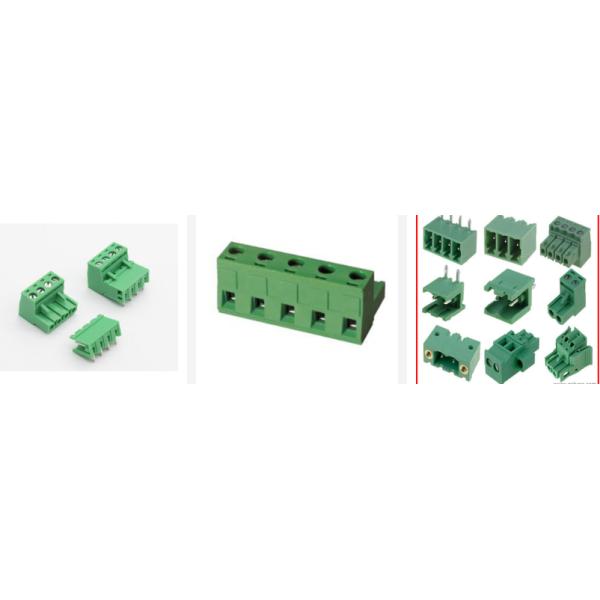

RDOQ 3.81pitch 2P-24P 300V 10A green with flange plug in type terminal block connector
RDOQ 3.81pitch 2P-24P 300V 10A green with flange plug in type terminal block connector
RDOQ 3.81pitch 2P-24P 300V 10A green with flange plug in type terminal block connector
RDOQ 3.81pitch 2P-24P 300V 10A green with flange plug in type terminal block connector
RDOQ 3.81pitch 2P-24P 300V 10A green with flange plug in type terminal block connector
RDOQ 3.81pitch 2P-24P 300V 10A green with flange plug in type terminal block connector
RDOQ 3.81pitch 2P-24P 300V 10A green with flange plug in type terminal block connector
RDOQ 3.81pitch 2P-24P 300V 10A green with flange plug in type terminal block connector
Specifications
Brand Name :
NO MARK
Model Number :
OQ KF
Certification :
CE
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
0.1-0.5
Delivery Time :
5-8 working days
Packaging Details :
100 pcs per box
type :
plug in terminal block with flange
size :
see detail drawing
color :
green
material :
new plastic and metal parts
Description

Pitch: 2.54mm,3.5mm,3.81mm,3.96mm,5.0mm,5.08mm,7.5mm,7.62mm, 8.25mm, 8.5mm, 9.5mm, 10mm, 11mm, 13mm etc

Material Screws: M2.5 steel Zinc plated

Wire guard: Phosphor bronze, Ni plated Pin

header: Brass, Tin plated

Housing: PA66, UL94V-0

Electrical Rated voltage: 300V

Rated current: 10A

Contact resistance: 20mΩ

Insulation resistance: 5000MΩ/1000V

Withstanding voltage: AC 2000V/1 Min

Wire range: 24-12AWG 2.5MM2 Mechanical

Temp. Range: -40~ +105MAX Soldering: +250, for 5 Se

c.Torque: 0.4Nm(3.6lb.in)Strip length: 6-7mm terminal block

Advantage

1.All kinds of products 100% tested before delivery.

.2.Well-equipped testing facilities and strong technical force.

3. Prompt delivery and competitive price and quality.

4. Used in the most of home appliances,computer,PCB,LCD,TV.

5.Our factory has nearly ten years manufacturing experience.

Contact: daisyzhou_003@163.comRDOQ 3.81pitch 2P-24P 300V 10A green with flange plug in type terminal block connectorRDOQ 3.81pitch 2P-24P 300V 10A green with flange plug in type terminal block connector
