Pneumatic Controlled Fixture SMT Cleaning Equipment 800~1000L/min MT-5100
Pneumatic Controlled Fixture SMT Cleaning Equipment 800~1000L/min MT-5100
Specifications
Brand Name :
INFINITE™
Model Number :
MT-5100
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
L/C, D/A, D/P, T/T, Western Union,
Packaging Details :
crate
Application :
Fixture Cleaner
Model :
MT-5100
Brand :
INFINITE™
Features :
Fully pneumatically controlled, no electricity is required
Condition :
New
Body Material :
Stainless Steel
Functionality :
For industrial use
Power :
Gas source: 0.5~0.7Mpa, 800~1000L/min
Packaging :
Wooden Box
Lead Time :
15 days
Description

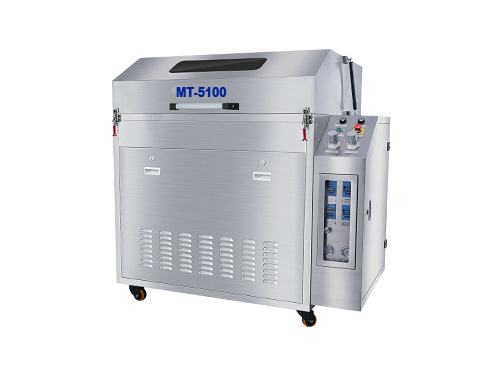

INFINITE™ MT-5100 solvent and water-based cleaning fluid operated pneumatic fixture cleaning machine is fully pneumatically controlled and no electricity requirements. This machine is specially designed for regular cleaning of reflow oven fixtures/trays in the SMT industry; also used for lead-free reflow oven condensers and filters Flux cleaning. The machine adopts pneumatic control, easy to operate, and safe to use. MT-5100 cleaning machine body is made of all stainless steel body that makes this machine capable of acid and alkali resistance, sturdy and durable and with beautiful appearance. Water-based cleaning fluid or solvent can be used for cleaning.

Features:

1. Fully pneumatically controlled, no electricity is required to ensure the absolute safety of the cleaning process without any worries.

2. All stainless steel body, acid and alkali resistance, sturdy and durable, beautiful appearance.

3. One-button simple operation, the whole process of high-pressure cleaning + high-pressure rinsing + compressed air drying is automatically completed.

4. Airtight cleaning and rinsing. The cleaning liquid and rinsing liquid are circulated and filtered in the machine to reduce the use cost.

5. Water-based cleaning fluid or solvent can be used for cleaning.

6. The standard is equipped with the function of automatically adding and draining rinsing liquid.

7. Inner lock type safety design, the machine stops working immediately when the door is opened.

8. Imported rotating motor to ensure smooth cleaning operation.

Machine specifications:

MT-5100 specification

Basket size: Φ1000 x H 200(mm)

Sprinkler System: Top, bottom, front, Omni-directional rotating spray cleaning and rinsing

3-stage filtration system: 1mm filter/50um filter/20um filter element

Cleaning time: 5~15min

Rinsing time: 1~2min

Drying time: 5~10min

Cleaning liquid tank capacity: 80L

Rinsing tank capacity: 80L

Injection pressure: 2~4kg/cm2

Filtering system: 2mm/100um/20um

Gas source: 0.5~0.7Mpa, 800~1000L/min

Machine size: L1450 x W1550 x H 1400 (mm)

Machine weight: 480KG
