Yamaha 8012H Nozzle KMX-M7726-A0 | Pick and Place Nozzle for Yamaha YRM10 YRM20 HM/FM Head
Product Introduction

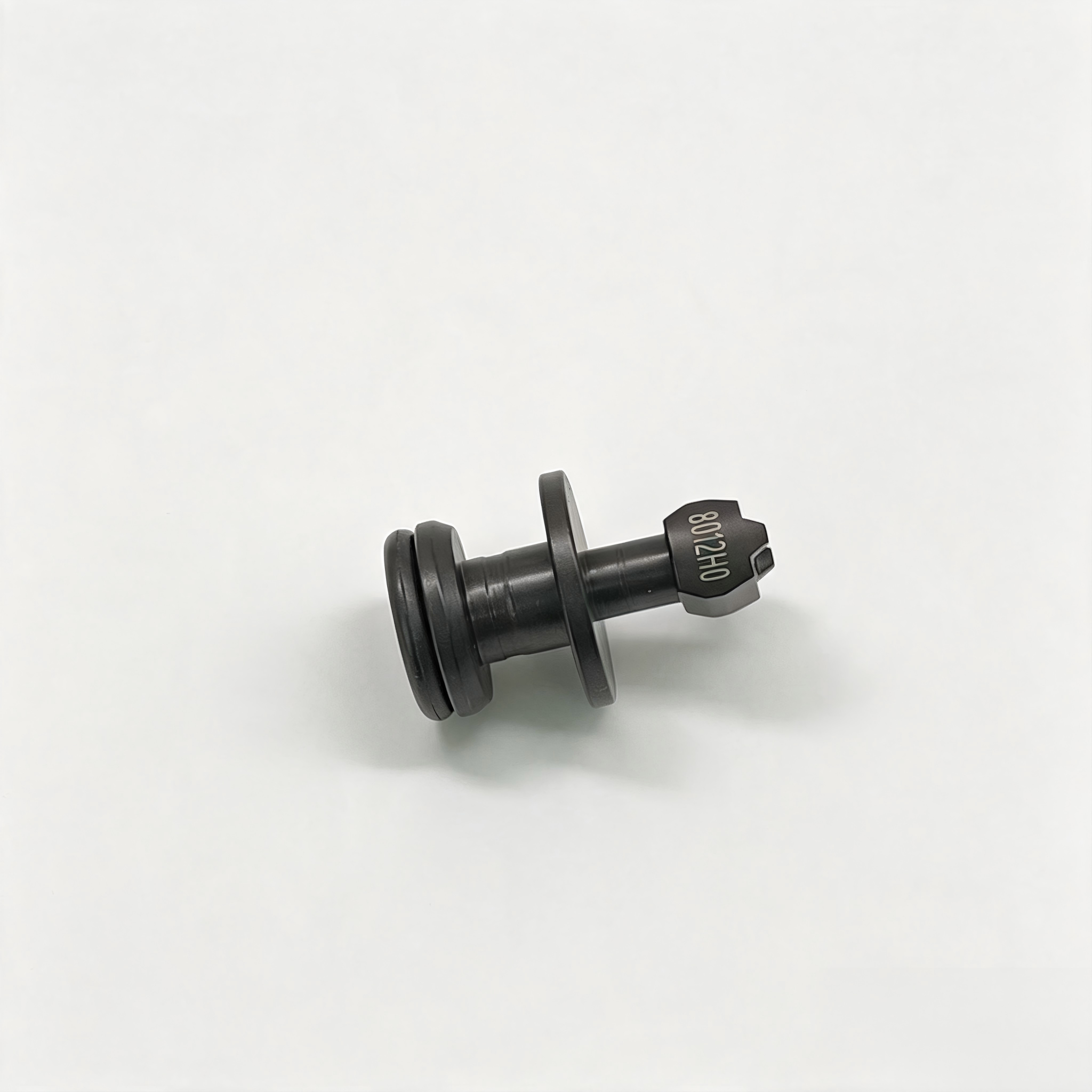

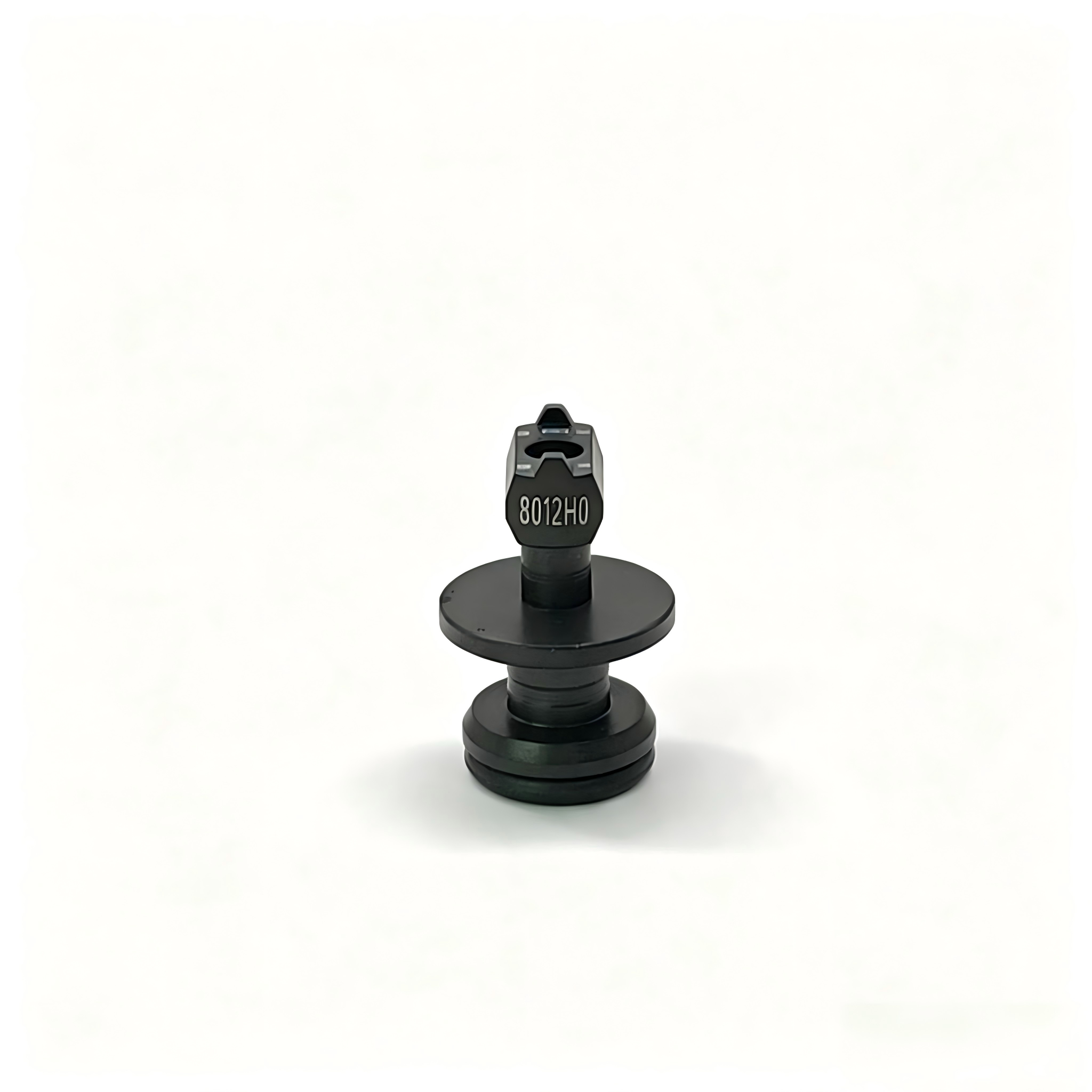

The Yamaha 8012H Nozzle (KMX-M7726-A0) is a large-size pick and place nozzle for Yamaha YRM10 and YRM20 mounter HM/FM heads. As essential SMT spare parts for PCB assembly, this replacement nozzle handles components up to 45×100mm.

Built with wear-resistant ceramic tip and precision metal body, it maintains stable vacuum and reduces part dropping & recognition errors. The 8012H SMT nozzle is fully interchangeable with standard specifications, no program modification needed. Suitable for EMS factories and SMT maintenance workshops across Europe and North America.

Product Specifications
Item Specification
Product Name Yamaha 8012H Pick and Place Nozzle
Model 8012H
OEM PN KMX-M7726-A0
Compatible Machine Yamaha YRM10 / YRM20 SMT Mounter
Applicable Head HM Head / FM Head
Max Component Size ≤45 mm × 100 mm
Material High-strength metal + wear-resistant ceramic tip
Type SMT replacement nozzle
Application PCB SMT assembly line
Product Features
  • Standard dimension for Yamaha 8012H nozzle, plug-and-play on YRM10 and YRM20
  • Durable ceramic tip, stable vacuum, lower pick failure for large components
  • Strict dimensional testing, good fit for HM/FM head, reduce vision alarm issues
  • Direct replacement for part number KMX-M7726-A0, cost-effective SMT spare part
  • Long service life, decrease your frequency of replacing SMT pick and place nozzle
  • Ready stock available, support sample, trial and bulk orders for global buyers
Frequently Asked Questions
Q1: Which machines fit Yamaha 8012H Nozzle?
A: This 8012H SMT nozzle works on Yamaha YRM10, YRM20 with HM Head and FM Head, PN: KMX-M7726-A0.
Q2: What component size can this nozzle mount?
A: It supports large components up to 45×100mm.
Q3: Can it directly replace original KMX-M7726-A0 nozzle?
A: Yes. No machine adjustment or program change required.
Q4: When should I replace SMT nozzle?
A: Frequent component dropouts, unstable vacuum, recognition errors or damaged ceramic tip.
Q5: Do you supply other YRM series nozzles?
A: We supply YRM series nozzles: 8004H, 8005H, 8006H, 8011H, 8012H and other SMT spare parts.
Q6: Can I order samples?
A: Yes, we accept sample, small trial and bulk orders.
