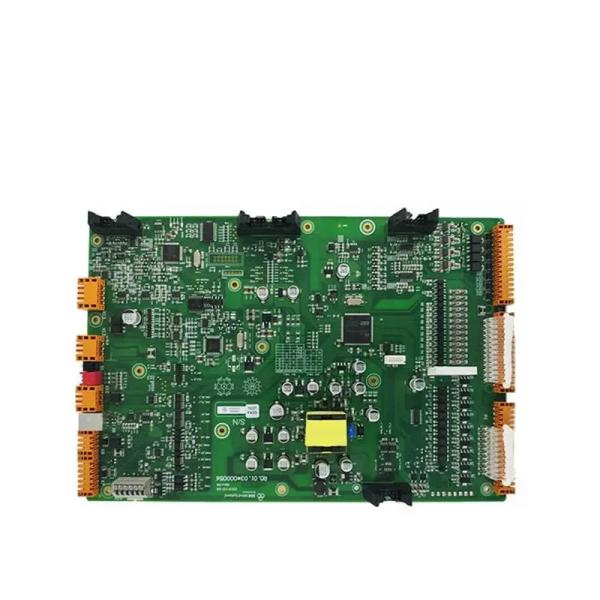

FDA Multilayer Medical PCBA Turnkey PCB Assembly 2.5mm Thickness
FDA Multilayer Medical PCBA Turnkey PCB Assembly 2.5mm Thickness
Specifications
MOQ :
1
Price :
Inquiry Us
Payment Terms :
T/T
Supply Ability :
200,000+ m² PCB per Month
Layer :
18 L
Material :
FR4
Thickness :
2.5mm
Min. Component Size :
01005
Board Thickness :
2.0 mm
Surface Finish :
Immersion gold
Pin Space :
0.2mm
PCBA Testing :
X-ray,AOI Test,Functional test
Application :
Critical Care Equipment
Description

Multilayer Medical PCBA for Critical Care Equipment

♦ What is Medical PCBA

Medical PCBA (Printed Circuit Board Assembly)​​ refers to the specialized manufacturing and assembly of PCBs used in medical devices and healthcare equipment. These assemblies must meet stringent regulatory standards (such as ​​FDA, ISO 13485, IEC 60601​​) to ensure reliability, safety, and precision in medical applications.

♦ Features of Medical PCBA

    • ​​High Reliability & Precision​​

      • Medical devices often require ​​ultra-low failure rates​​ (e.g., pacemakers, ventilators).
      • Components must be ​​high-precision​​ (e.g., sensors, microcontrollers).

    • ​​Strict Regulatory Compliance​​

      • ​​FDA (U.S.) & CE (Europe)​​ certifications are mandatory.
      • ​​ISO 13485​​ (Quality Management for Medical Devices).
      • ​​IEC 60601​​ (Safety Standards for Medical Electrical Equipment).

    • ​​Miniaturization & High Density​​

      • Many medical devices (e.g., hearing aids, endoscopes) require ​​small, high-density PCBs​​.
      • Use of ​​HDI (High-Density Interconnect) and flexible PCBs​​ is common.

    • ​​Biocompatibility & Sterilization Resistance​​

      • Some PCBs must withstand ​​autoclaving, chemical sterilization, or radiation​​.
      • Materials must be ​​non-toxic and corrosion-resistant​​.

    • ​​Long Product Lifecycles​​

      • Medical devices often have ​​10+ years of service life​​, requiring durable components.

♦ Common Applications:

​​Medical Device Category​​ ​​Examples​​ ​​PCBA Requirements​​
​​Diagnostic Equipment​​ MRI machines, X-ray systems, ECG monitors High-speed signal processing, EMI shielding
​​Wearable & Implantable Devices​​ Pacemakers, insulin pumps, hearing aids Ultra-compact, low-power, biocompatible
​​Surgical & Robotic Tools​​ Endoscopes, laser surgery systems, robotic arms High reliability, sterilization-resistant
​​Patient Monitoring Systems​​ Blood glucose monitors, pulse oximeters Low-power, wireless connectivity (Bluetooth/Wi-Fi)
​​Laboratory & Testing Devices​​ PCR machines, DNA sequencers Precision analog circuits, thermal management

♦ DQS's PCB Assembly Capability

Item

Normal

Special

SMT

Assembly

PCB(used for SMT)

specification

Length and Width( L* W)

Minimum

L≥3mm, W≥3mm

L＜2mm

Maximum

L≤800mm, W≤460mm

L ＞ 1200mm, W＞500mm

Thickness( T)

Thinnest

0.2mm

T＜0.1mm

Thickest

4 mm

T＞4.5mm

SMT components specification

Outline Dimension

Min size

0201(0.6mm*0.3mm)

01005(0.3mm*0.2mm)

Max size

200 * 125

200 * 125

component thickness

T≤15mm

6.5mm＜T≤15mm

QFP,SOP,SOJ

(multi pins)

Min pin space

0.4mm

0.3mm≤Pitch＜0.4mm

CSP/ BGA

Min ball space

0.5mm

0.3mm≤Pitch＜0.5mm

DIP

Assembly

PCB specification

Length and Width( L* W)

Minimum

L≥50mm, W≥30mm

L＜50mm

Maximum

L≤1200mm, W≤450mm

L≥1200mm, W≥500mm

Thickness( T)

Thinnest

0.8mm

T＜0.8mm

Thickest

3.5mm

T＞2mm

♦ One-Stop Solution Including:

PCB Prototype

Quick Turn PCB

Single-Sided PCB

Double-Sided PCB

Multilayer PCB

Rigid PCB

Flexible PCB

 Rigid-Flex PCB Rigid-Flex PCB Aluminum PCB Metal Core PCB

Thick Copper PCB

HDI PCB

 BGA PCB High TG PCB PCB Stencil Impedance Control PCB

PCB Assembly
High-Frequency PCB Bluetooth Circuit Board Automotive PCB USB Circuit Board Halogen-Free PCB

Antenna PCB

♦ Core Competencies of DQS PCB Assembly

SMT

FDA Multilayer Medical PCBA Turnkey PCB Assembly 2.5mm Thickness

 DIP

FDA Multilayer Medical PCBA Turnkey PCB Assembly 2.5mm Thickness
  • 13 automatic high-speed SMT line
  • 5 million points / day
  • FPC/Double sided mounted
  • Automatic conformal coating
  • 4 DIP line
  • Post-soldering700,000 points/day
  • Professional DIP plug-in team
FDA Multilayer Medical PCBA Turnkey PCB Assembly 2.5mm Thickness SMT Technology FDA Multilayer Medical PCBA Turnkey PCB Assembly 2.5mm Thickness PCBA OEM
  • Min package: 01005
  • Min pin: 0.3mm
  • Min BGA pitch: 0.3 mm

  • Full turnkey PCB assembly
  • Partial turnkey PCB assembly

Send your message to this supplier
