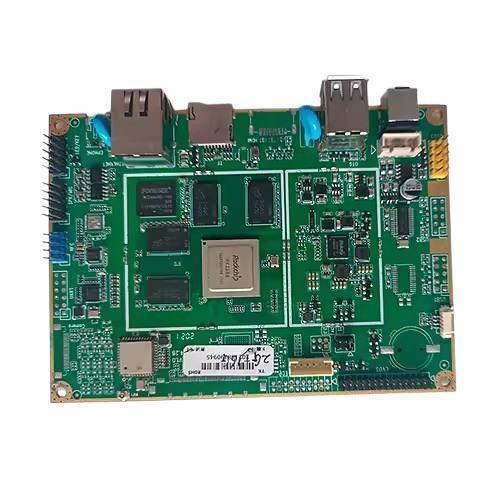

1.0mm ENIG Consumer Electronic PCBA Multilayer Assembly Service
1.0mm ENIG Consumer Electronic PCBA Multilayer Assembly Service
Specifications
MOQ :
1
Price :
Inquiry Us
Payment Terms :
T/T
Supply Ability :
200,000+ m² PCB per Month
Layer :
2 L
Min. Component Size :
0402
Board Thickness :
1.0 mm
Surface Finish :
ENIG
Pin Space :
0.1mm
Application :
Consumer Electronics
Testing Method :
Flying Probe, ICT, Functional Test
Description

China Electronic PCBA Assembly Service

♦ What is Electronic PCBA?

Electronic PCBA (Printed Circuit Board Assembly)​​ is the process of mounting and soldering electronic components onto a fabricated PCB (Printed Circuit Board) to create a functional circuit. Unlike ​​PCB fabrication​​ (which produces the bare board), ​​PCBA involves populating the board with components​​ like resistors, capacitors, ICs, and connectors.

♦ ​​Key Stages of PCBA​​

1. Solder Paste Application​​

    • A ​​stencil​​ aligns with the PCB, and solder paste (a mix of tiny solder balls and flux) is applied to pads where components will sit.

​​2. Component Placement (Pick-and-Place)​​

    • ​​Surface Mount Technology (SMT)​​: Automated machines place tiny components (e.g., resistors, ICs) onto the solder paste.
    • ​​Through-Hole Technology (THT)​​: Larger components (e.g., connectors, electrolytic capacitors) are inserted into drilled holes.

​​3. Reflow Soldering (SMT) & Wave Soldering (THT)​​

    • ​​Reflow oven​​: Heats the PCB, melting the solder paste to form permanent connections.
    • ​​Wave soldering​​: Used for THT parts—the PCB passes over a molten solder wave.

​​4. Inspection & Testing​​

    • ​​AOI (Automated Optical Inspection)​​: Checks for missing/misaligned components or soldering defects.
    • ​​ICT (In-Circuit Testing)​​: Verifies electrical functionality.
    • ​​Functional Testing​​: Ensures the assembled PCB works as intended.

​​5. Conformal Coating (Optional)​​

    • A protective layer (e.g., silicone, acrylic) may be applied to prevent moisture, dust, or corrosion.

♦ ​​Types of PCBA Services​​

Type Description Best For
​​Turnkey PCBA​​ Full service—supplier handles PCB fabrication, component sourcing, assembly, and testing. Startups, companies wanting hassle-free production.
​​Consigned PCBA​​ Customer provides components; assembler only does placement/soldering. Cost-sensitive projects with existing parts inventory.
​​Partial Turnkey​​ Hybrid approach—some parts supplied by customer, others by the assembler. Customized builds with specialty components.

♦ DQS's PCB Assembly Capability

Item

Normal

Special

SMT

Assembly

PCB(used for SMT)

specification

Length and Width( L* W)

Minimum

L≥3mm, W≥3mm

L＜2mm

Maximum

L≤800mm, W≤460mm

L ＞ 1200mm, W＞500mm

Thickness( T)

Thinnest

0.2mm

T＜0.1mm

Thickest

4 mm

T＞4.5mm

SMT components specification

Outline Dimension

Min size

0201(0.6mm*0.3mm)

01005(0.3mm*0.2mm)

Max size

200 * 125

200 * 125

component thickness

T≤15mm

6.5mm＜T≤15mm

QFP,SOP,SOJ

(multi pins)

Min pin space

0.4mm

0.3mm≤Pitch＜0.4mm

CSP/ BGA

Min ball space

0.5mm

0.3mm≤Pitch＜0.5mm

DIP

Assembly

PCB specification

Length and Width( L* W)

Minimum

L≥50mm, W≥30mm

L＜50mm

Maximum

L≤1200mm, W≤450mm

L≥1200mm, W≥500mm

Thickness( T)

Thinnest

0.8mm

T＜0.8mm

Thickest

3.5mm

T＞2mm

♦ One-Stop Electronic Manufacturing Including

PCB Prototype

Quick Turn PCB

Single-Sided PCB

Double-Sided PCB

Multilayer PCB

Rigid PCB

Flexible PCB

 Rigid-Flex PCB Rigid-Flex PCB Aluminum PCB Metal Core PCB

Thick Copper PCB

HDI PCB

 BGA PCB High TG PCB PCB Stencil Impedance Control PCB

PCB Assembly
High-Frequency PCB Bluetooth Circuit Board Automotive PCB USB Circuit Board Halogen-Free PCB

Antenna PCB

♦ Core Competencies of DQS PCB Assembly

SMT

1.0mm ENIG Consumer Electronic PCBA Multilayer Assembly Service

 DIP

1.0mm ENIG Consumer Electronic PCBA Multilayer Assembly Service
  • 13 automatic high-speed SMT line
  • 5 million points / day
  • FPC/Double sided mounted
  • Automatic conformal coating
  • 4 DIP line
  • Post-soldering700,000 points/day
  • Professional DIP plug-in team
1.0mm ENIG Consumer Electronic PCBA Multilayer Assembly Service SMT Technology 1.0mm ENIG Consumer Electronic PCBA Multilayer Assembly Service PCBA OEM
  • Min package: 01005
  • Min pin: 0.3mm
  • Min BGA pitch: 0.3 mm

  • Full turnkey PCB assembly
  • Partial turnkey PCB assembly
