Immersion Gold Fast Prototype PCB Fabrication Single Layer 0.5mm-10.0mm
Immersion Gold Fast Prototype PCB Fabrication Single Layer 0.5mm-10.0mm
Specifications
MOQ :
1
Price :
Send us Gerber file for free quotation
Payment Terms :
T/T
Layer :
1-108 Layer
Material :
Fr4
Thickness :
0.5-10.0mm
Min. Line Width/Space :
0.1/0.1mm
Copper Thickness :
0.5-15OZ
Surface treatment :
Immersion Gold
Application :
Electronic
Certificate :
UL & IPC Standard & ISO
Description

Single Layer PCB Board for Prototype and Mass Products

♦ What's Single Layer PCB Board?

A ​​Single-Layer PCB (Single-Sided PCB)​​ is the simplest type of printed circuit board, consisting of ​​only one conductive copper layer​​ laminated onto a non-conductive substrate (usually FR4).

Key Features:​​

✔ ​​1 Conductive Layer​​ – All components and traces are on ​​one side​​ of the board.
✔ ​​Simple Design​​ – Ideal for low-complexity circuits.
✔ ​​Cost-Effective​​ – Cheaper to manufacture than multi-layer PCBs.
✔ ​​Easy to Fabricate​​ – Faster production due to fewer layers.

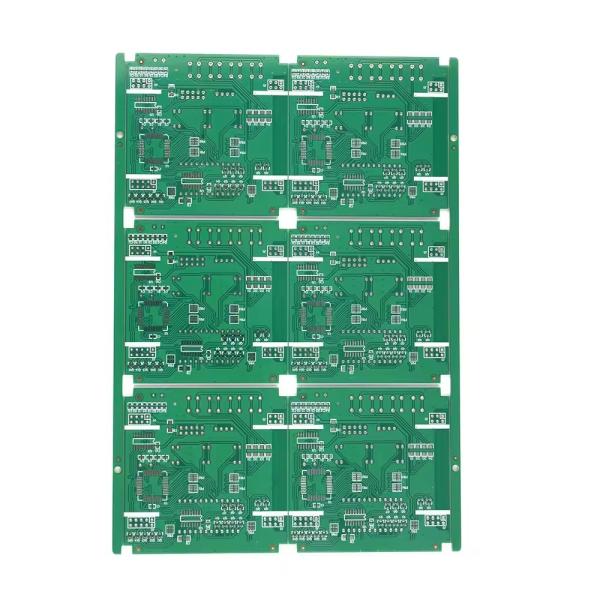

Immersion Gold Fast Prototype PCB Fabrication Single Layer 0.5mm-10.0mm Immersion Gold Fast Prototype PCB Fabrication Single Layer 0.5mm-10.0mm Immersion Gold Fast Prototype PCB Fabrication Single Layer 0.5mm-10.0mm

♦ ​​​​​​Structure of a Single-Layer PCB​​:​

    1. ​​Substrate (Base Material)​​ – Typically ​​FR4​​, fiberglass, or phenolic resin.
    2. ​​Copper Layer​​ – A thin copper foil (usually ​​1 oz/ft²​​) for conductive traces.
    3. ​​Solder Mask​​ – Protective coating (usually green) to prevent short circuits.
    4. ​​Silkscreen​​ – Printed labels for component placement.

♦ ​​​​Advantages of Single-Layer PCBs​:​

✅ ​​Low Cost​​ – Fewer materials and simpler manufacturing.
✅ ​​Easy to Design & Repair​​ – No complex routing or vias.
✅ ​​Faster Production​​ – Suitable for quick prototyping.
✅ ​​Reliable for Simple Circuits​​ – Works well for basic electronics.

♦ Technical Parameters

Item

Specification

Laers

1~64

Board thickness

0.1mm-7.0mm

Material

FR-4,CEM-1/CEM-3,PI,High Tg,Rogers

Max panel size

32"×48"(800mm×1200mm)

Min hole size

0.075mm

Min line width

3mil(0.075mm)

Surface finish

OSP,HASL,Imm Gold/Nickel/Ag, Electric gold

Copper thickness

0.5-7.0OZ

Soldermask

Green/Yellow/Black/White/Red/Blue

Silkscreen

Red/Yellow/Black/White

Min PAD

5mil(0.13mm)

Inter package

Vacuum

Outer package

Carton

Outline tolerance

±0.75mm

Hole tolerance

PTH:±0.05 NPTH:±0.025

Certificate

UL,ISO 9001,ISO14001,IATF16949

Special request

Blind hole+Gold finger + BGA

Material Suppilers

Shengyi, KB, Nanya, ITEQ,etc.

♦ One-Stop PCBs Solution

Immersion Gold Fast Prototype PCB Fabrication Single Layer 0.5mm-10.0mm Immersion Gold Fast Prototype PCB Fabrication Single Layer 0.5mm-10.0mm Immersion Gold Fast Prototype PCB Fabrication Single Layer 0.5mm-10.0mm Immersion Gold Fast Prototype PCB Fabrication Single Layer 0.5mm-10.0mm
PCB Prototype Felx PCB Rigid-Flex PCB Aluminium PCB
Immersion Gold Fast Prototype PCB Fabrication Single Layer 0.5mm-10.0mm Immersion Gold Fast Prototype PCB Fabrication Single Layer 0.5mm-10.0mm Immersion Gold Fast Prototype PCB Fabrication Single Layer 0.5mm-10.0mm Immersion Gold Fast Prototype PCB Fabrication Single Layer 0.5mm-10.0mm
Heavy Copper PCB HDI PCB High Frequency PCB High TG PCB

♦ Advantages of DQS Team
  1. On-time Delivery:
    • Owned PCBA factories 15,000㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines

2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%

3. Premium Service:

    • 24H reply your inquiry
    • Perfect after-sales service system
    • From prototype to mass production
