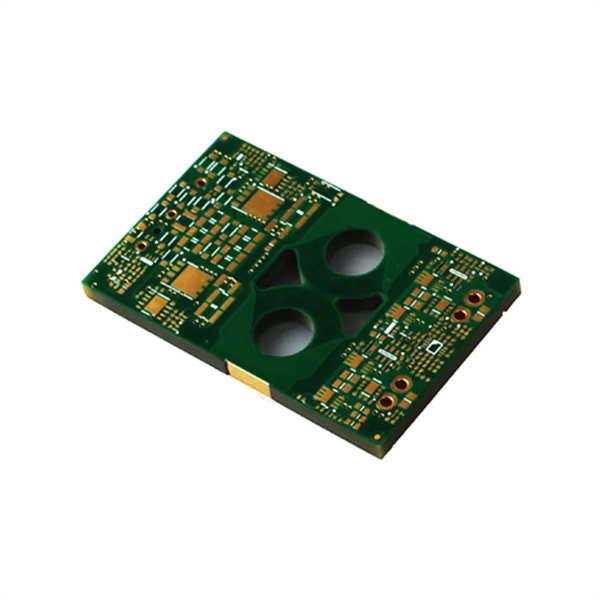

Polyimide Thick Copper PCB Substrate Multilayer Board Fabrication Service ODM
Polyimide Thick Copper PCB Substrate Multilayer Board Fabrication Service ODM
Specifications
MOQ :
1
Price :
Send us Gerber file for free quotation
Payment Terms :
T/T
Layer :
14 Layer
Material :
Polyimide
Thickness :
1.5mm
Copper Thickness :
4OZ
Surface Treatment :
ENIG
Max. Line Width/Space :
2.54/1.27mm
Application :
Automotive Electronics
Certificate :
UL,IATF16949,ISO&Reach
Description

High-performance Substrate Polyimide Thick Copper PCB Multilayer Copper Stacked PCB Board

♦ What is Thick copper PCB?

Thick copper PCB refers to a circuit board formed by bonding a layer of copper foil with a thickness of 2 ounces (oz, about 62.5 microns) or more to FR-4 or other substrates during the printed circuit board (PCB) manufacturing process.

Polyimide Thick Copper PCB Substrate Multilayer Board Fabrication Service ODM Polyimide Thick Copper PCB Substrate Multilayer Board Fabrication Service ODM Polyimide Thick Copper PCB Substrate Multilayer Board Fabrication Service ODM

♦ Features of Thick Copper PCB

    • ​​​​Large current carrying capacity: copper thickness ≥3oz, can pass 100A+ current, low temperature rise.

    • ​​Strong heat dissipation: high thermal conductivity, heat dissipation efficiency increased by 5 times+, temperature rise reduced by 10-15℃.

    • ​​High mechanical strength: bending resistance increased by 50%, high temperature vibration resistance, adaptable to harsh environments.

    • ​​Electrical stability: low impedance, low loss, low risk of delamination at high temperature.

    • ​​Flexible design: supports wide line width (≥100mil) and multi-layer thick copper stacking.

    • ​​Complex process: etching/drilling is difficult, yield rate is 85%-90%.

    • ​​High cost: material + processing premium is 30%-50%, and the unit price is high.

♦ Applications of Thick Copper PCB

    • ​​Power supply equipment: high-power switching power supply, inverter, UPS, etc.
    • ​​Automotive electronics: electric vehicle motor controller, on-board charger, battery management system.
    • ​​Industrial control: motor driver, servo controller, welding equipment.
    • ​​New energy field: photovoltaic inverter, wind power converter.
    • High-power LED lighting: LED driver board that needs heat dissipation and current carrying

♦ Technical Parameters

Item

Specification

Laers

1~32

Board thickness

0.1mm-7.0mm

Material

FR-4,CEM-1/CEM-3,PI,High Tg,Rogers

Max panel size

32"×48"(800mm×1200mm)

Min hole size

0.075mm

Min line width

3mil(0.075mm)

Surface finish

OSP,HASL,Imm Gold/Nickel/Ag, Electric gold

Copper thickness

0.5-7.0OZ

Soldermask

Green/Yellow/Black/White/Red/Blue

Silkscreen

Red/Yellow/Black/White

Min PAD

5mil(0.13mm)

Inter package

Vacuum

Outer package

Carton

Outline tolerance

±0.75mm

Hole tolerance

PTH:±0.05 NPTH:±0.025

Certificate

UL,ISO 9001,ISO14001,IATF16949

Special request

Blind hole+Gold finger + BGA

Material Suppilers

Shengyi, KB, Nanya, ITEQ,etc.

♦ One-Stop PCBs Solution

Polyimide Thick Copper PCB Substrate Multilayer Board Fabrication Service ODM Polyimide Thick Copper PCB Substrate Multilayer Board Fabrication Service ODM Polyimide Thick Copper PCB Substrate Multilayer Board Fabrication Service ODM Polyimide Thick Copper PCB Substrate Multilayer Board Fabrication Service ODM
PCB Prototype Felx PCB Rigid-Flex PCB Aluminium PCB
Polyimide Thick Copper PCB Substrate Multilayer Board Fabrication Service ODM Polyimide Thick Copper PCB Substrate Multilayer Board Fabrication Service ODM Polyimide Thick Copper PCB Substrate Multilayer Board Fabrication Service ODM Polyimide Thick Copper PCB Substrate Multilayer Board Fabrication Service ODM
Heavy Copper PCB HDI PCB High Frequency PCB High TG PCB

♦ Advantages of DQS Team
  1. On-time Delivery:
    • Owned PCBA factories 15,000 ㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines

2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%

3. Premium Service:

    • 24H reply your inquiry；
    • Perfect after-sales service system；
    • From prototype to mass production
