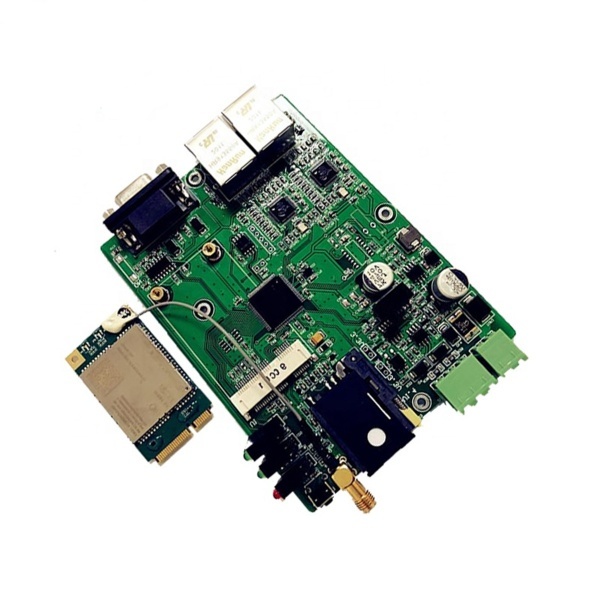

Power Management Industrial Fr4 Tg180 PCBA
Power Management Industrial Fr4 Tg180 PCBA
Specifications
Certification :
ISO, UL, IPC, Reach
MOQ :
1
Payment Terms :
T/T
Supply Ability :
Post-soldering 700,000 points/day
Delivery Time :
5-30 days
Layer :
10 Layer
Material :
FR4 Tg180
Thickness :
2.0mm±10%
Pin Space :
0.2mm
Min. Component Size :
01005
Assembly Process :
SMT+DIP
PCBA Test :
X-ray,AOI Test,Functional test
Application :
LiDAR
Description

Laser Radar PCBA Industrial PCBA High Precision Signal Processing High Tg Board



♦ What Is Industrial PCBA?


Industrial Control PCBA is a specialized printed circuit board assembly designed for industrial control applications. It is used to build critical components such as control panels, programmable logic controllers (PLCs), and motor drives in industrial systems.



♦ What Is Fr4?


FR-4 is a flame-retardant, glass-fabric-reinforced epoxy laminate.
In plain English: a rigid, fire-resistant, electrically insulating composite made by pressing woven fiberglass cloth with an epoxy resin binder that contains brominated flame retardants. It is the standard substrate for most rigid printed circuit boards (PCBs).


♦ Features of Industrial-grade Laser Radar PCBA

  • High precision: fine line layout to ensure accurate detection.
  • High speed: support fast scanning, real-time generation of three-dimensional data.
  • Strong reliability: anti-interference design, 7×24 hours stable operation.
  • Multi-layer board: optimize wiring, reduce signal interference.
  • Anti-electromagnetic interference: multiple filtering protection, passed EMC certification.


♦ Applications:

  • ​​Manufacturing Automation​​: Automotive welding/assembly robots, electronic SMT placement machines, food packaging equipment, etc., to achieve high-precision production.
  • ​​Robots​​: Industrial robotic arms, AGV carts, collaborative robots, etc., to control movement and interaction.
  • ​​Energy and Power​​: Wind power/photovoltaic inverters, power grid monitoring, energy storage battery management (BMS), etc.
  • ​​Petrochemical/Metallurgy​​: Pumping units, reactor controls, rolling mill equipment, etc., to adapt to high temperature and high pressure environments.


♦ Technical Parameters


PCB Assembly Capability

Item

Normal

Special

SMT

Assembly

PCB(used for SMT)

specification

Length and Width( L* W)

Minimum

L≥3mm, W≥3mm

L＜2mm

Maximum

L≤800mm, W≤460mm

L ＞ 1200mm, W＞500mm

Thickness( T)

Thinnest

0.2mm

T＜0.1mm

Thickest

4 mm

T＞4.5mm

SMT components specification

Outline Dimension

Min size

0201(0.6mm*0.3mm)

01005(0.3mm*0.2mm)

Max size

200 * 125

200 * 125

component thickness

T≤15mm

6.5mm＜T≤15mm

QFP,SOP,SOJ

(multi pins)

Min pin space

0.4mm

0.3mm≤Pitch＜0.4mm

CSP/ BGA

Min ball space

0.5mm

0.3mm≤Pitch＜0.5mm

DIP

Assembly

PCB specification

Length and Width( L* W)

Minimum

L≥50mm, W≥30mm

L＜50mm

Maximum

L≤1200mm, W≤450mm

L≥1200mm, W≥500mm

Thickness( T)

Thinnest

0.8mm

T＜0.8mm

Thickest

3.5mm

T＞2mm





♦ One-Stop PCBA Solution


Power Management Industrial Fr4 Tg180 PCBA Power Management Industrial Fr4 Tg180 PCBA Power Management Industrial Fr4 Tg180 PCBA Power Management Industrial Fr4 Tg180 PCBA
PCBA Prototype Industrial Control PCBA Telecom PCBA Medical PCBA
Power Management Industrial Fr4 Tg180 PCBA Power Management Industrial Fr4 Tg180 PCBA Power Management Industrial Fr4 Tg180 PCBA Power Management Industrial Fr4 Tg180 PCBA
Automotive PCBA Consumer Electronic PCBA LED PCBA Security PCBA





♦ Advantages of DQS Team

  1. On-time Delivery:
    • Owned PCBA factories 15,000 ㎡
    • 13 fully automatic SMT lines
    • 4 DIP assembly lines


2. Quality Guaranteed:

    • IATF, ISO, IPC, UL standards
    • Online SPI, AOI, X-Ray Inspection
    • The qualified rate of products reach 99.9%


3. Premium Service:

    • 24H reply your inquiry
    • Perfect after-sales service system
    • From prototype to mass production
