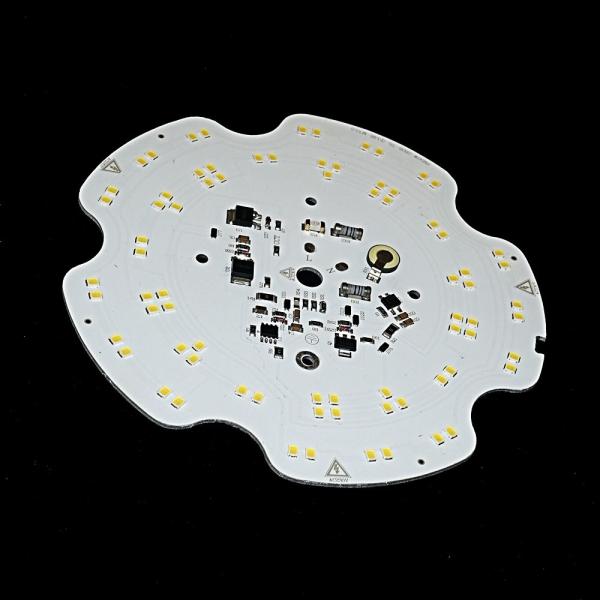

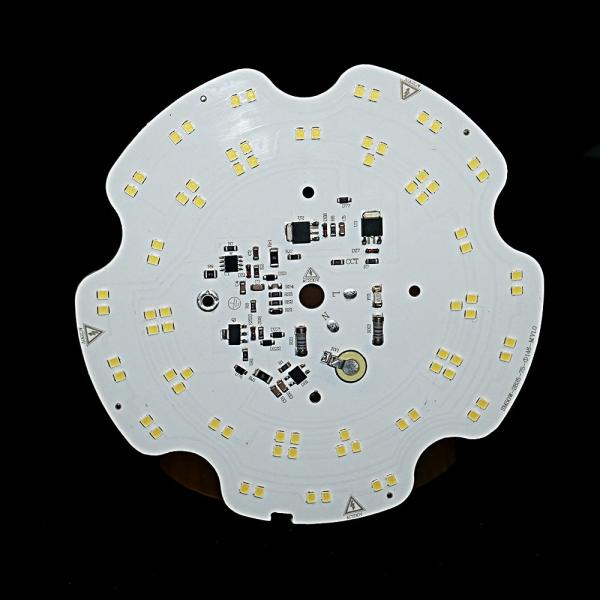

Injection 146*146*2.0mm 50W SMD DOB LED Module UFO Light PCBA
Injection 146*146*2.0mm 50W SMD DOB LED Module UFO Light PCBA
Injection 146*146*2.0mm 50W SMD DOB LED Module UFO Light PCBA
Injection 146*146*2.0mm 50W SMD DOB LED Module UFO Light PCBA
Injection 146*146*2.0mm 50W SMD DOB LED Module UFO Light PCBA
Injection 146*146*2.0mm 50W SMD DOB LED Module UFO Light PCBA
Injection 146*146*2.0mm 50W SMD DOB LED Module UFO Light PCBA
Injection 146*146*2.0mm 50W SMD DOB LED Module UFO Light PCBA
Specifications
Place of Origin :
Guangdong, China
Brand Name :
mankun
Certification :
ce, RoHS
MOQ :
500 Pieces
Price :
Negotiation
Payment Terms :
Negotiation
Supply Ability :
50000 Piece/Pieces per Week AC Led Module
Delivery Time :
5-10 Work days
Input Voltage(V) :
AC 220V( ± 10%)
Type :
LED Modules
Product name :
Injection Led Module
Voltage :
AC 220V/110V
LED Chip :
2835 Led Chip Module
Size :
146*146*2.0mm
LED QTY :
75pcs
Usage :
Light Source
Description

Injection 146*146*2.0mm 50W SMD DOB LED Module UFO Light PCBA

UFO Smd Led Pcb Module, 2835 Led PCBA Manufacturer LED DOB Light PCBA Module

Specification

50W AC Linear LED Module

Led source:

SMD 2835

Rated Watts:

50W

Input Voltage:

AC190-270V

PF:

0.98

Surge protector

4KV surge protection on board

Lux(lm/w):

135lm/w±5%

CCT(K):

3000-6000K

Ra:

>80

Beam angle:

120°

Material:

PCB2.0(high-conductivity)

life span(H):

>30,000

Operating temperature:

-30℃ ~ 55℃

Size:

D146*2.0mm

Key Features

  • Various CCT available: 2700k/3000k/3500k/4000k/4500k/5000k/6000k

  • CRI :80/90/95 options

  • Macadam 3/5 steps color bin

  • Solutions for UFO high bay/ Flood light

  • AC Line voltage 230V inputdirectly

  • Power factor higher than 0.9

  • Low THDI<15%

  • Flicker Free

  • Efficiency 120Lm/W

FAQ

Q1: Are you a factory or dealer?

A1: We are a real and professional manufacturer in driver-on-board LED modules with state-of-the-art technology.

Q2: What products you main business?

A2: We are Specialized in AC DOB LED module ang driver-on -board quantum board for grow light.

Q3: How about your quality?
A3: Use top quality material to make sure stable quality and enough brightness, we supply high cost performance products. Every product passed aging test well then delivery to every client.

Q4: Can you offer customized design and manufacturing?

A4: Yes, we offer customized design and manufacturing. We offer free-of-charge PCB design and electrical and optical test. All our LED modules are customized designs for customers from all over the world.

Q5: How to make a customized LED module?

A5: Firstly, we need to confirm customer requirement through communication.
Secondly, we create the LED layout drawing and hole bitmap for confirmation
Thirdly, we make and test the sample board Fourthly, we perform electronic and optical property parameters measurement
Fifthly, we go through reliability test. Sixthly, we package and deliver the order package after getting Acceptance of Evaluation from Technical department.
