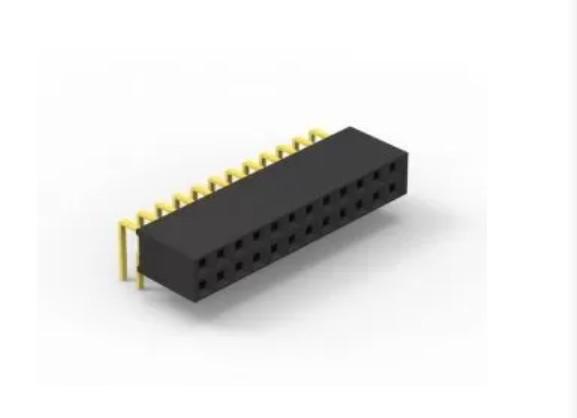

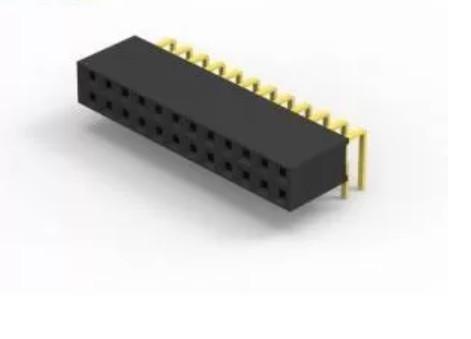

Dual Row Side 2.54mm Pitch Right Angle PCB Header Connector Gold Flash PBT Material
Dual Row Side 2.54mm Pitch Right Angle PCB Header Connector Gold Flash PBT Material
Dual Row Side 2.54mm Pitch Right Angle PCB Header Connector Gold Flash PBT Material
Dual Row Side 2.54mm Pitch Right Angle PCB Header Connector Gold Flash PBT Material
Specifications
Certification :
ISO9001, IATF16949, ISO14001
Place of Origin :
China
MOQ :
2000 pcs
Supply Ability :
10k daily capacity
Delivery Time :
2 weeks
Packaging Details :
blister, tube, tape and reel
Plastic material :
PA6T, PBT, LCP
contact material :
brass, phosphor bronze
pitch :
2.54mm
Contact resistance :
20mΩ Max
Insulation resistance :
1000MΩ Min
Withstand voltage :
500V AC/DC
Description

Dual Row Side Right Angle 2.54mm pitch PCB Header Connector Gold Flash PBT Material

Detailed Product Description

Contact Resistance: 20mΩ Max Withstand Voltage: 500V AC/DC
Insulation Resistance: 1000MΩ Min Operation Temperature: -40℃ To +105℃
Contact Material: Phosphor Bronze Contact Plating: Au Or Sn Over Ni
Insulator Material: PA6T/PA9T/PBT+30% GF(UL94V-0)
Highlight:

pcb pin connector

,

right angle pcb connector

Features:

Current Rating 3.0 AMP
Contact Resistance 20 mΩ Max
Withstand Voltage 500 V AC/DC
Insulation Resistance 1000MΩ Min
Operation Temperature -40℃ to 105℃
Contact Material Coppy Alloy
Products Name PCB Header Connector
Pitch 2.54mm(0.1'')
Mounting Type Through Hole
Contact Plating Au over Ni
Insulator Material PBT+30%GF(UL94V-0)
Termination Solder
insertion Force 2N Max
Withdrawal Force 0.3N Min
Durability 300 Mating Cycles
Solder Temperature 260℃ for 10 seconds
Packing Tube/Reel
Color Black

Dual Row Side 2.54mm Pitch Right Angle PCB Header Connector Gold Flash PBT Material
