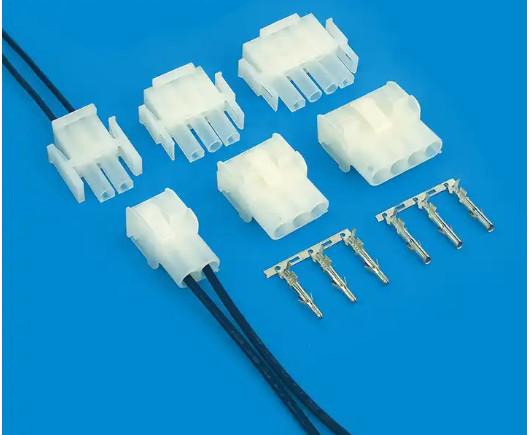

MOLEX Plastic Automotive Connectors 10-84-4020 10-84-4030 Male Female 6.3MM
MOLEX Plastic Automotive Connectors 10-84-4020 10-84-4030 Male Female 6.3MM
MOLEX Plastic Automotive Connectors 10-84-4020 10-84-4030 Male Female 6.3MM
MOLEX Plastic Automotive Connectors 10-84-4020 10-84-4030 Male Female 6.3MM
Specifications
Certification :
IATF16949, ISO9001
Place of Origin :
China
MOQ :
1000 pcs
Supply Ability :
10k daily capacity
Delivery Time :
2 weeks
Packaging Details :
poly bag
Plastic material :
PA66
Rated Current :
8-12A
Voltage rated :
300V AC/DC
Insulation Resistance :
1000 MΩ min
Contact Resistance :
10MΩ max
Wire gauge :
AWG20#~#16
Temperature range :
-40-+!05 degree
Description

MOLEX Plastic Connectors Pitch 10-84-4020 10-84-4030 10-84-4040 10-84-4060 Male Female 6.3MM Adapter Automotive

Rated Voltage: 300V AC,DC
Rated current: 12~8A AC,DC
Contact resistance: 10MΩ Max
Insulation Resistance: 1000 MΩ min
Withstand Voltage: 250V AC/minute
Temperature: -25℃~+85℃
Poles: 2,3,4,5,6,9,12,15
Wire Range: AWG20#~#16
Applicable PC Board Thickness 1.6mm

Receptacle Housing: (Nylon)UL94-V0(2)
Plug Housing: (Nylon)UL94-V0(2)
Terminal: Phosphor Bronze,Tin Plated
Wafer: (Nylon)UL94-V0(2)

MOLEX Plastic Automotive Connectors 10-84-4020 10-84-4030 Male Female 6.3MM
