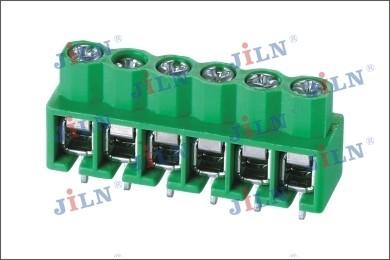

7mm Strip PA66 PCB Terminal Block Connector M2.5 JL166 5.00mm Pitch AC2000
7mm Strip PA66 PCB Terminal Block Connector M2.5 JL166 5.00mm Pitch AC2000
Specifications
Brand Name :
JILN
Model Number :
JL166
Certification :
UL/CUL/Rosh/SGS
Place of Origin :
China
MOQ :
1000PCS
Price :
0.01-1USD
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
30000000PCS per Month
Delivery Time :
7-10 days
Packaging Details :
Tube packing/PE bag packing
Insulator Material: :
PA66
Rated Current :
600V,90A
Withstand Voltage :
2000VAC/DC
Insulation Temperature :
-40℃~+105℃
Name :
Terminal Block Connector
Pitch :
5.00mm Pitch
Description

M2.5 JL166 5.00mm Pitch AC2000 7mm Strip Length PA66 PCB Application Manufacture

Specifications:

Rated Currency: 300V,16A
Dieletric Strength: AC2000V/1 Minute
Insularion Resistance: 500mΩ Min
Contact Resistance: 20mΩ Max
Screw Torque: 0.4Nm(17.5Lb.in)
Wire Range: 20-14AWG 2.5M㎡
Strip Length: 6-7mm
Term. Range: -40℃~+105℃
Max Solering +250℃.5S
Housing Material: PA66(UL94 V-O)
Contact: Steel, Tin Plating
Clamp: Brass/Steel, NI Plating
Wire Protector: Brass,Ni Plating
Screw: -

Company history:

In 2007, the company registered the trademarks”JILN”and”NETECH”

In January,2008, the produ rct of the company were rated as good quality products by Market Protection Committee of China’s Famous brand products.

In April,2008, The products of the company were rated as “Green Products” by international Green Management Committee.

In 2011, the company introduced ERP management system.

In September, 2012 the main products including pin, female header connector, Terminal Blocks, Box Header Connector Ejector Header and IDC Machine Pin DIN41612 Flat Cable series.

In August, 2014 had passed 3C Certification.

In December,2014, our company won seven product patent, passed the HI-TECH enterprise of Shenzhen and got the certificate of honor at the same time.

In June 2015, JILN is the vice chairman of Shenzhen connector association and attained the “good faith enterprise”

In July of 2016 UL authorized laboratory was established.

Our business concept:integrity,gratitude and responsibility.

Our business strategy:quality first,customer first,excellence,team work!

Our service philosophy:speed,precise,considerate,carefully,elaborately,diligently.
