AC220V Power Supply SMT PCB Unloader with Touch Screen Control and Automatic Width Adjustment
AC220V Power Supply SMT PCB Unloader with Touch Screen Control and Automatic Width Adjustment
AC220V Power Supply SMT PCB Unloader with Touch Screen Control and Automatic Width Adjustment
AC220V Power Supply SMT PCB Unloader with Touch Screen Control and Automatic Width Adjustment
Specifications
Brand Name :
HSTECH
Model Number :
HS-NK250
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
10~15 work days
Packaging Details :
Wooden package, with foam
Product name :
NG/OK Unloader
PCB transporting height :
910±30mm
PCB dimension :
50*50~330*250mm
Power supply :
AC220V, 50/60Hz
Magazine qty :
Each rail 2 magazines
Warranty :
1 year
Usage :
SMT production line,SMT assembly line
Condition :
new
Description

SMT Production Line Good / No-good board Separating Magazine NG OK PCB Unloader

Intorduction

This unit is employed downstream of the AOI process. Upon receiving the upstream AOI inspection signal, it automatically segregates the non-conforming (NG) and conforming (OK) boards into their respective designated magazines, ensuring efficient and organized sorting of the PCBs.

Technical details

Function Collect the NG/OK boards separately by receiving the signal.
Transport height 910±30mm
Transportation direction L~R, or R~L
Board collect time Each approx 6 seconds
Magazine change over time Approx 30seconds
Track fixed side Front side
Operation side Front side
Conveyor belt ESD
PCB thickness Min 0.6mm
Pitch selection 1-4(10mm pitch)
Power supply 220V,50/60Hz,±10%
Power 0.05kW
Air pressure 4-6Bar
Air consumption Max 15L/min
Number of magazines Upper:1 magazine, Bottom side:2 magazines
Signal SMEMA
Options

1, Touch screen control mode.

2, Automatic width adjustment.

3, Magazines quantity up to customer requirement.

Features

  1. PLC Programming Control: The unit is equipped with a PLC (Programmable Logic Controller) for precise and reliable programming control, ensuring smooth and efficient operation.

  2. User-Friendly LED Membrane Control Panel: Featuring a 'soft touch' LED membrane control panel, the interface is intuitive and easy to navigate, providing a seamless user experience.

  3. Adjustable Pitch Setting: The unit offers selectable pitch settings, allowing for flexibility in accommodating different PCB sizes and configurations.

  4. Toggle Level Clamps for Magazine Alignment: Equipped with toggle level clamps, the magazines can be easily aligned and secured, ensuring accurate and stable board placement.

  5. Pneumatic Pusher with Pressure Regulation: The pneumatic pusher is designed with pressure regulation, enabling precise control over the force applied during board transfer, minimizing the risk of damage.

  6. High Throughput with Rapid Magazine Changeover: The unit boasts high throughput capabilities, complemented by a short magazine changeover time, maximizing production efficiency.

  7. Automatic NG/OK Board Sorting from AOI: Seamlessly integrating with AOI systems, the unit automatically collects and stores non-conforming (NG) and conforming (OK) boards in separate magazines, streamlining the inspection and sorting process.

  8. Standard SMEMA Communication Interface: Equipped with a standard SMEMA (Surface Mount Equipment Manufacturers Association) communication interface, the unit can easily integrate into existing production lines, facilitating seamless communication and data exchange.

Model

Model HS-NK250 HS-NK330 HS-NK390 HS-NK460
Efficient PCB length 50*50~350*250mm 50*50~455*330mm 50*50~530*390mm 50*50~530*460mm
PCB thickness Min 0.6mm Min 0.6mm Min 0.6mm Min 0.6mm
Magazine size 355*320*563mm 460*400*563 535*460*570mm 535*530*570mm
Machine dimension 1950*1600*1200mm 2300*1760*1200mm 2500*1880*1200mm 2500*2160*1200mm
Weight 220kg 280kg 340kg 380kg

The Product and Details

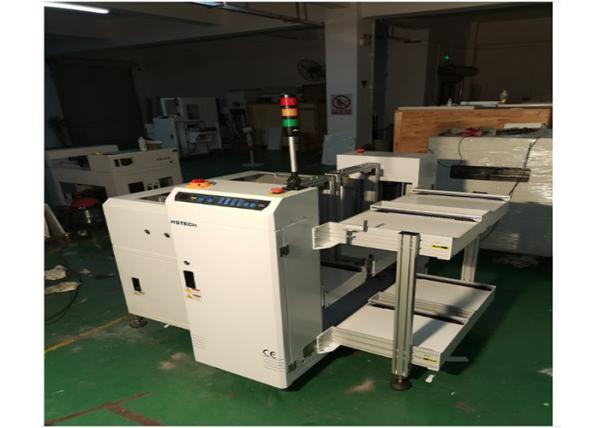

AC220V Power Supply SMT PCB Unloader with Touch Screen Control and Automatic Width Adjustment
