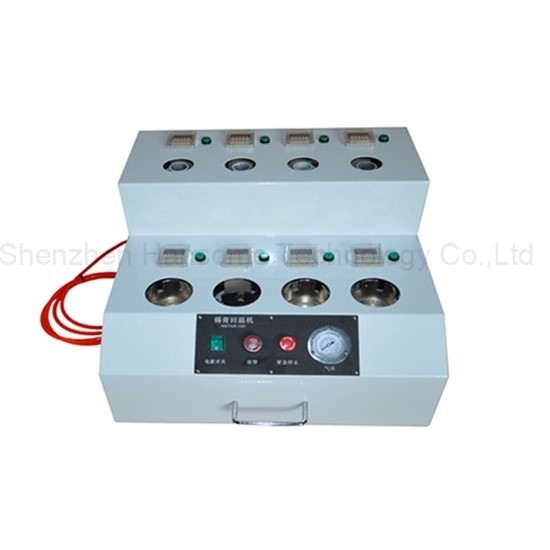

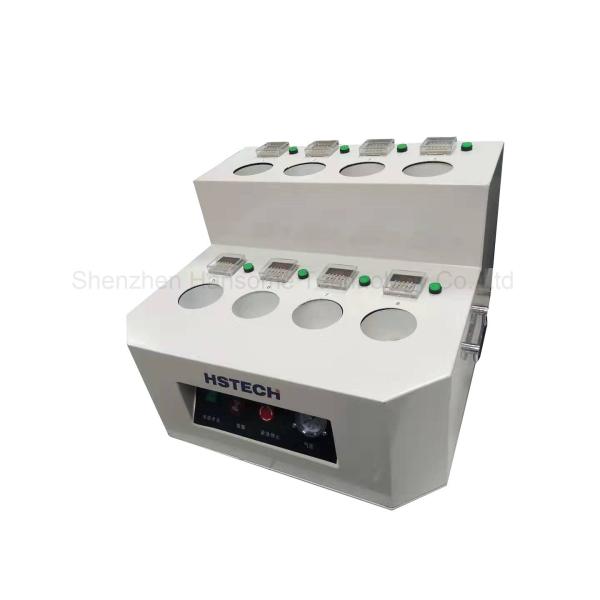

Solder Paste Aging Machine is a special testing equipment used to test the aging characteristics of solder paste (Solder Paste).

• Simulate the aging of the solder paste during the actual production process and test the storage life of the solder paste.
• By controlling environmental parameters such as temperature and humidity, the aging process of solder paste is accelerated.
• Measure the performance indicators of solder paste under different aging degrees, such as viscosity, activity, printability, etc.
• Provide manufacturers with reference data on the service life of solder paste and guide the reasonable storage and use of solder paste.

• Programmable temperature, humidity, and time parameters simulate various aging environments.
• Equipped with a sophisticated testing system, it can monitor and record changes in solder paste performance indicators in real time.
• The sample storage space is large and multiple solder paste models can be tested at the same time.
• The operation interface is friendly and the data analysis function is powerful.

• Constant temperature and humidity aging box: Provides programmable temperature and humidity environment.
• Sample tray: Place the solder paste samples that need to be tested.
• Performance testing module: including viscometer, printing machine, etc., to test solder paste performance parameters.
• Data collection and analysis system: records and analyzes test data in real time.

• Solder paste manufacturers use this machine to perform aging tests on the solder paste they produce.
• Electronics manufacturers can perform aging testing on samples to verify before using solder paste.
• R&D personnel use this equipment to develop new solder pastes and optimize solder paste formulas

1. Electricy and air pressure driven combined.
2. Use the timer to timing the solder paste back to room temperature instead of operator record.
3. LED display timer system, easy to set and accurate timing.
4. Aging tank is designed for standard size solder paste.
5. Aging tank with FIFO function, after timing, take out the solder paste during order.
6. In the case of out of power accidently, even if not reach setted time, solder paste bottle will automatically pop up.
7. With alarm system, it rings when finished timing, also equipped with a emergency button.
