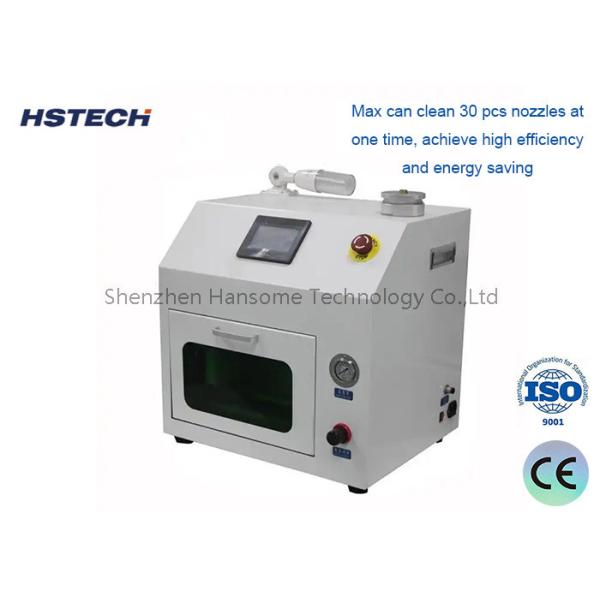

High Precision SMT Cleaning Equipment with Touch Screen and Multiple Spraying Nozzles
High Precision SMT Cleaning Equipment with Touch Screen and Multiple Spraying Nozzles
High Precision SMT Cleaning Equipment with Touch Screen and Multiple Spraying Nozzles
High Precision SMT Cleaning Equipment with Touch Screen and Multiple Spraying Nozzles
Specifications
Brand Name :
HSTECH
Model Number :
HS-800
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
7~9 work days
Packaging Details :
Wooden package
Product Name :
SMT Nozzle Cleaner
Voltage :
1P2W, AC100V/220V, 50/60Hz
Machine Body :
304 Stainless Steel
Cleaning Method :
High Pressure Spraying Cleaning
Control Panel :
Touch Screen(English)
Machine Size :
500*440*530mm
Description

High Precision SMT Cleaning Equipment with Touch Screen and Multiple Spraying Nozzles​

Products Description

SMT Nozzle Cleaner:

HS-800 nozzle cleaning machine can automatically complete the cleaning and drying process, it adopts multiple spraying nozzles spraying cleaning method, uses fluid mechanics to shred water, produces very strong water mist, forms powerful kinetic energy at the speed of sound and sprays on the nozzle, forming a continuous shape above the nozzle, clean the dirty on the surface and inside of the nozzles, it mainly used for cleaning small components, such as 0603,0402,0201,01005 and high precision nozzles.

Features:

1, Elegant appearance, high precision 304 stainless steel machine body.

2, Max can clean 30 pcs nozzles at one time, achieve high efficiency and energy saving.
3, Suitable for cleaning all kinds of nozzles, also have good cleaning performance for cross type, I-shaped, and special shape nozzles.
4, The atomized water flow equipped with supersonic spraying cleaning to completely clean the dirt impurities which the ultrasonic waves can not clean it all, ensure the clearness even very small nozzle holes.
5, Easy operation, English is available.
6, Inspection window which can watch the whole cleaning process.
7, Using D.I water as cleaning solvent,not harmful for all types of nozzles and reflector panel.
8, Touch screen + PLC distributed control, stable and reliable performance

Specification:

Model HS-800
Voltage Single phase, AC110-220V, 50H60Hz
Air pressure 0.5~0.6Mpa
Air source Pure compressor air
Control mode PLC+Touch Screen
Jet pressure ≤0.4MPa​
Air wastage Under 280NL/min
Water source​ D.I water
Water storage 800cc
Water consumption 300cc/hrs
Admission pipe/Drainpipe​ φ8/φ6
Nozzle tray Default 30 nozzles
Nozzle size 01005, 0201-2512inch
Noise 35-60dB

Machine size

High Precision SMT Cleaning Equipment with Touch Screen and Multiple Spraying NozzlesHigh Precision SMT Cleaning Equipment with Touch Screen and Multiple Spraying Nozzles

Nozzle Tray

High Precision SMT Cleaning Equipment with Touch Screen and Multiple Spraying Nozzles

High Precision SMT Cleaning Equipment with Touch Screen and Multiple Spraying Nozzles

Packing & Delivery
Item
 SMT Nozzle Cleaner
Package
1 set into one wooden carton as safety condition
External Dimension
customizable
Weight
about 10-15kgs
Delivery
about 15-20 working days
Payment
D/P, T/T, Western Union, MoneyGram
Port
Shenzhen
Shipment
A.By Courier: 4-7 Working days by special offer
B.By Air: 7 Working days at appointed airport
C.By Sea: 20-25 Working days at appointed port
