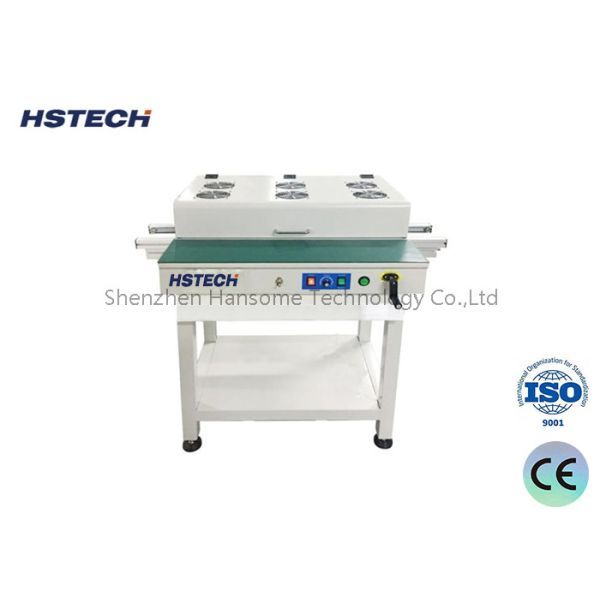

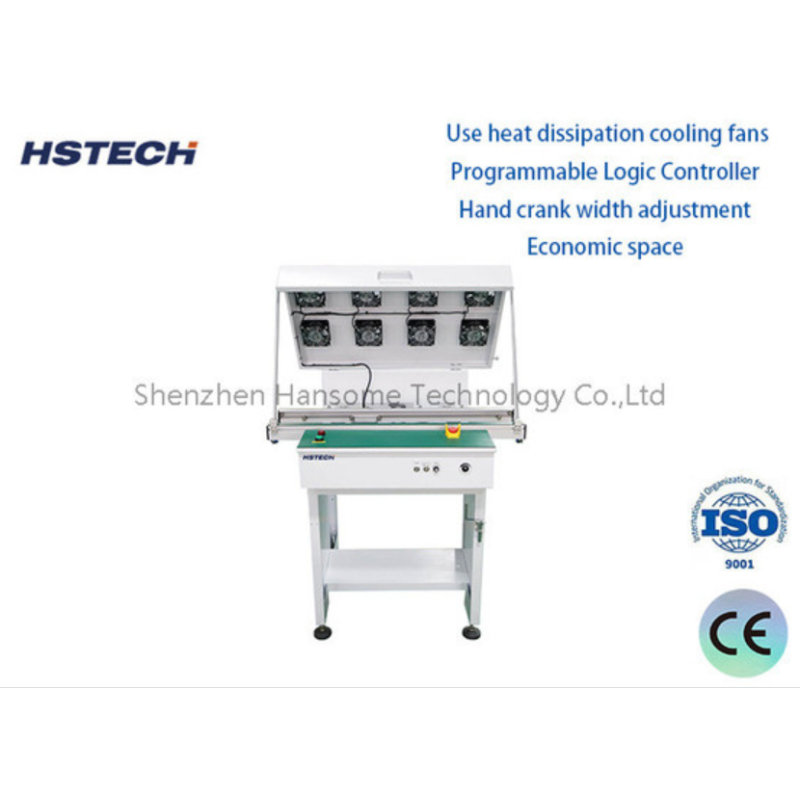

Stainless Steel Manual Hand Crank ESD Belt LED Button Width Adjustment PCB Transporting Conveyor
Stainless Steel Manual Hand Crank ESD Belt LED Button Width Adjustment PCB Transporting Conveyor
Stainless Steel Manual Hand Crank ESD Belt LED Button Width Adjustment PCB Transporting Conveyor
Stainless Steel Manual Hand Crank ESD Belt LED Button Width Adjustment PCB Transporting Conveyor
Specifications
Brand Name :
HSTECH
Model Number :
HS-460-CY
Certification :
CE
Place of Origin :
China
MOQ :
3 sets
Price :
Negotiable
Payment Terms :
T/T, Western Union, D/P
Supply Ability :
500 pcs per month
Delivery Time :
10~14 days
Packaging Details :
Wooden box
Product name :
SMT Conveyor
Other name :
Link Conveyor
Color :
Blue,Grey,white
Transport belt :
ESD flat belt
Belt thickness :
1.0 mm
Voltage :
1P AC 110V/220V 50/60HZ
Warranty :
1 Year
Packing :
Wrap, wooden box
Description

Stainless Steel Manual Hand Crank ESD Belt LED Button Width Adjustment PCB Transporting Conveyor

Features

1. Solid structure: built with stainless steel to ensure the overall structure is stable and reliable.
2. Flexible Adjustment: Equipped with a hand crank adjustment mechanism, easily adjust the equipment to fit PCB boards of different widths.
3. Durable Conveyor Belt: Choose the black conveyor belt with a thickness of 1.0mm, which is wear-resistant and durable to ensure stable transmission.
4. Aluminium alloy track: Aluminium alloy conveying track ensures smooth running and reduces friction and loss.
5. Intelligent control: controlled by LED button, combined with speed adjusting motor to achieve precise conveying speed control.
6. Rich additional functions: Provide optional functions such as tower light, inspection, dust cover, etc. to meet the diversified needs of customers.
7. Personalised customisation: we can personalise the machine according to customers' specific requirements to meet various special needs.
8. Optional length: the length of the equipment provides a variety of options such as 600 mm, 1000 mm, 1500 mm, or customised according to actual needs.
10. Convenient online connection: Supporting SMEMA signals, it is convenient to connect with other equipment or production lines online to achieve efficient collaborative work.

Specification

Model HS-C600/HS-C1000
Power Supply AC220V or AC110V 50/60Hz
PCB Size 50*50~500*390mm
Width adjustment Hand crank
PCB Direction Left to right or right to left
Transmission Height 900 ± 20 mm
Transmission Speed 0.5-20 meters per minute adjustable
Track fixed side front side fixed( or back side fixed for option)
Machine Length 0.5M/0.6M/0.8M/1M/1.5M
Options Light,Fan,Magnnifying,Cover,Inspection
