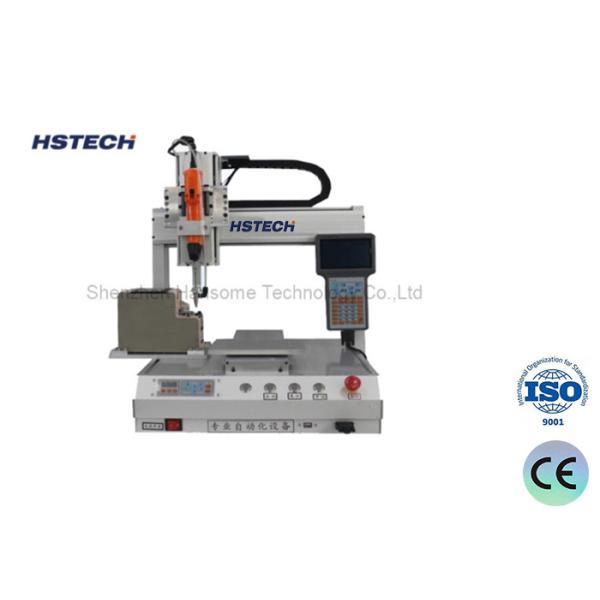

Automatic Screw Fastening Machine With Omron Photoelectric Switch For M1-M6 Screws
Automatic Screw Fastening Machine With Omron Photoelectric Switch For M1-M6 Screws
Automatic Screw Fastening Machine With Omron Photoelectric Switch For M1-M6 Screws
Automatic Screw Fastening Machine With Omron Photoelectric Switch For M1-M6 Screws
Specifications
Brand Name :
HSTECH
Model Number :
HS-SL551S
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100pcs per month
Delivery Time :
7~9 work days
Packaging Details :
Wooden package, foam inside
Product name :
Desktop Screw Tightening Robot
Feeding :
pick-up screw
Axis :
3 axis
Screws :
M1-M6
Moving Range :
500*500*100mm
Material :
Main Aluminum
Port :
Shenzhen
Oem :
Yes
Description
Screw Fastening Machine and Stability Omron Photoelectric Switch 500*500*100mm 50/60Hz
Introduction
This Screw Fastening Machine combines a feeder and a locking system in one, and its feeding part (i.e. screw arranger or feeder) not only optimises the screw arranging process, but also significantly improves the working efficiency. As a widely used automation machine in the electronics industry, it is particularly suitable for handling screws from M1 to M6.
Specification
Model HS-SL551S HS-SL661S
Production name Automatic Screw Locking Machine
Moving range(X/Y/Z) 500*500*100mm 600*600*100mm
X/Y axis moving speed Closed loop motor :1-800mm/s
Z axis moving speed Closed loop motor: 1-300mm/s
X/Y axis max load Closed loop motor: 5KG
Z axis max load Closed loop motor: 3KG
Power supply AC110V/220V, 50/60Hz
Repeat accuracy ±0.02mm
Document support CAD CorelDraw
Suitable screws M1-M5
Machine dimension 746*785*800mm 845*885*800mm
Machine weight 50kg 55kg

Main parts brand

1, Motor: Shinano

2, Guide: Hiwin

3, Photoelectric switch: Omron

4, Power supply: Meanwell

Features

1. High-efficiency suction screw feeding for enhanced efficiency.
2. Desktop visualisation operation, compatible with automatic line.
3. Move range optional: 500x500x100mm/600x600x100mm.
4.Support multi-screw suction.
5. Wide range of application.
6. Can be equipped with multi-axis, double platform and other devices.
7. Multiple editing, copying programme and other functions.
8. Offline download parameters, support manual control handle storage call.
9. Powerful storage capacity, support hundreds of files, each file up to 1000 screw bits.
