Streamline Your Production with MITSUBISHI PLC Controlled Small Size PCB Handling Equipment
Streamline Your Production with MITSUBISHI PLC Controlled Small Size PCB Handling Equipment
Streamline Your Production with MITSUBISHI PLC Controlled Small Size PCB Handling Equipment
Streamline Your Production with MITSUBISHI PLC Controlled Small Size PCB Handling Equipment
Specifications
Brand Name :
HSTECH
Model Number :
HS-460SDT
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100 sets per month
Delivery Time :
7~9 work days
Packaging Details :
Wooden package,with foam
Product name :
Bare board destacker
Power supply :
1 PH AC 220V 50/60Hz
Pcb direction :
L-R or R-L(optional)
Material feature :
Stainless Steel
PLC :
MITSUBISHI
Driver :
Meanwell
Condition :
New
Description

Streamline Your Production with MITSUBISHI PLC Controlled Small Size PCB Handling Equipment

Features

1. Starting point equipment: Used at the starting point of SMT production line, automatically transferring bare boards to the belt conveyor.
2.Control: MITSUBISHI PLC and touch screen control, easy to operate.
3. Material: full stainless steel body, sturdy and durable.
4. Size advantage: compact design, space-saving, easy to move.
5. Colour: computer white, beautiful and generous.

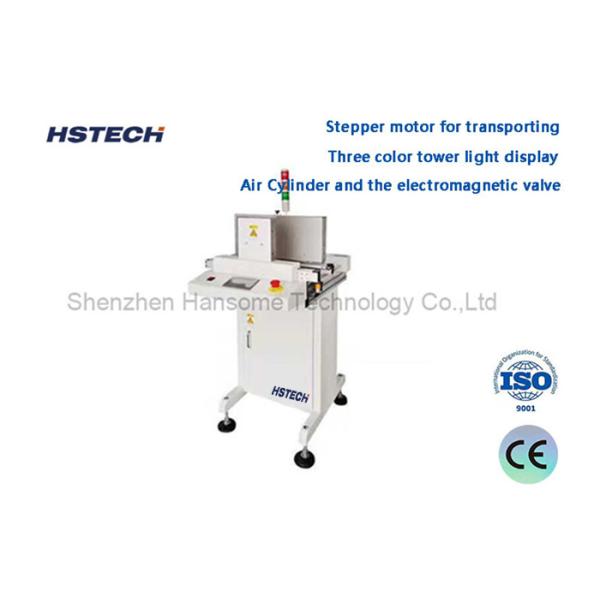

6. Conveyor system: stepping motor drive, ensure stable transmission.
7. Conveyor belt: ESD 7mm flat conveyor belt, anti-static.
8. Status display: three-colour tower light intuitively shows the status of the machine.
9. Pneumatic system: pneumatic cylinder and solenoid valve to achieve precise action.
10. Width adjustment: T-type screwdriver easily adjusted to adapt to different sizes of PCB.
11. Communication interface: equipped with SMEMA interface, easy to integrate into the existing production line.

Specification

Model HS-460SDT
PCB Size 50*50~530*460
Machine dimension (L)600*(W)650*(H)1195mm
Usage Loading the bare boards
PCB thickness Min 0.4mm
Board loading time 6s
Air pressure 4-6bar
Air consumption max 30L/min
Current max 300A
Transport direction L-R or R-L(optional)
Capacity 10~150pcs
Machine height standard(900±20mm)
Weight Approx 200kg
