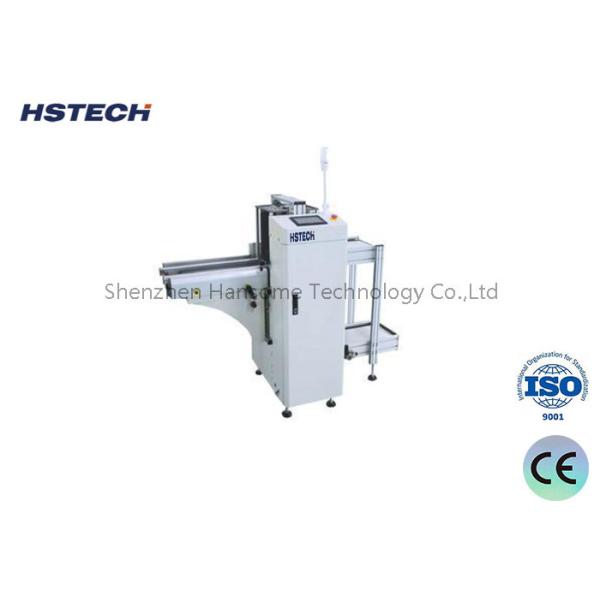

Front Operation PCB Loader with Economic Design Arm Test and Robust Design
Front Operation PCB Loader with Economic Design Arm Test and Robust Design
Front Operation PCB Loader with Economic Design Arm Test and Robust Design
Front Operation PCB Loader with Economic Design Arm Test and Robust Design
Specifications
Brand Name :
HSTECH
Model Number :
HS-LD330
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
Negotiable
Payment Terms :
D/P, T/T, Western Union
Supply Ability :
200 sets per month
Delivery Time :
15~20 work days
Packaging Details :
Wooden package
Product name :
Multiple magazine PCB Loader
Other name :
SMT board loading machine
Power supply :
AC110V/220V,50/60Hz
Air pressure :
4-6 bar
PCB thickness :
Min 0.4mm
Pitch selection :
10-40mm
Conveyor speed :
0.5-20M/min or customized
Communication :
SMEMA
Description


Front Operation PCB Loader with Economic Design Arm Test and Robust Design

Application

Designed for loading printed circuit boards, this equipment ensures efficient and safe transportation of boards in the SMT line.

Features
1.Module Design
2.Steady increase stabilization
3.Economic measuring arm
4.Pneumatic fixture
5.Anti-destructive loading and unloading
6.SMEMA compatible

Specification

Product namePCB Loader Machine

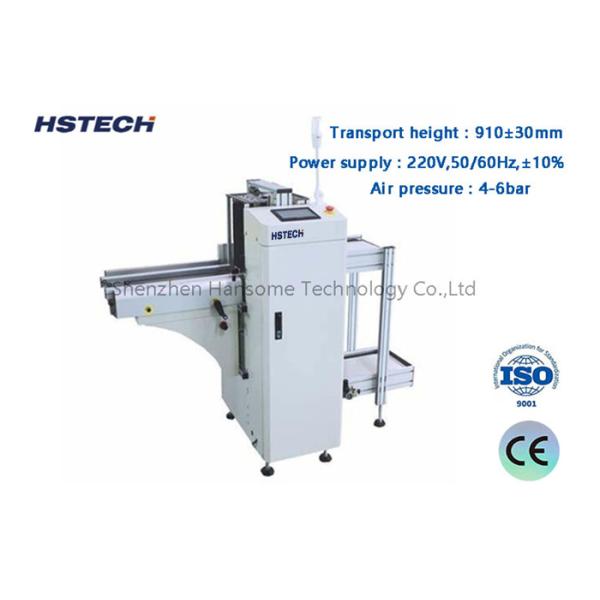

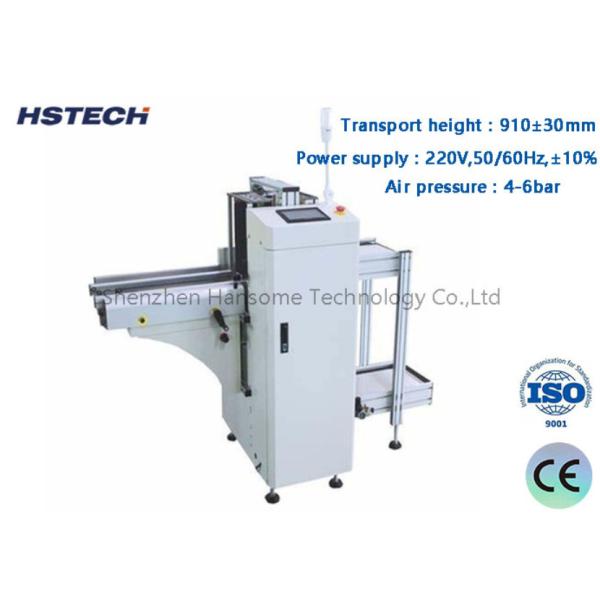

Transport height910±30mm
PCB loading timeApprox 6 seconds
Magazine replace timeApprox 30 seconds
Transportation directionL~R, or R~L
OperationFront operation
Track fixed sideFront side(or specify)
Power supply220V,50/60Hz,±10%
Air pressure4-6bar
PCB thicknessMin 0.4mm
Magazine qtyUpper side:1 pc,bottom side: 2 pc
Pitch selection1-4(10mm pitch)
Conveyor speed0.5-20M/min or customized
SignalSMEMA

Model selection

ModelHS-LD250HS-LD330HS-LD390HS-LD460
Efficient PCB length50*50~350*250mm50*50~455*330mm50*50~530*390mm50*50~530*460mm
Machine Size1400*800*1200mm1650*880*1200mm1800*940*1200mm1800*1010*1200mm
Magazine size355*320*563mm460*400*563mm535*460*570mm535*530*570mm
Weight140kg180kg220kg260kg

Control Bottun and electric box

Front Operation PCB Loader with Economic Design Arm Test and Robust Design

About Products

Front Operation PCB Loader with Economic Design Arm Test and Robust DesignFront Operation PCB Loader with Economic Design Arm Test and Robust Design

About Packaging

Front Operation PCB Loader with Economic Design Arm Test and Robust Design

Front Operation PCB Loader with Economic Design Arm Test and Robust Design

Front Operation PCB Loader with Economic Design Arm Test and Robust Design
