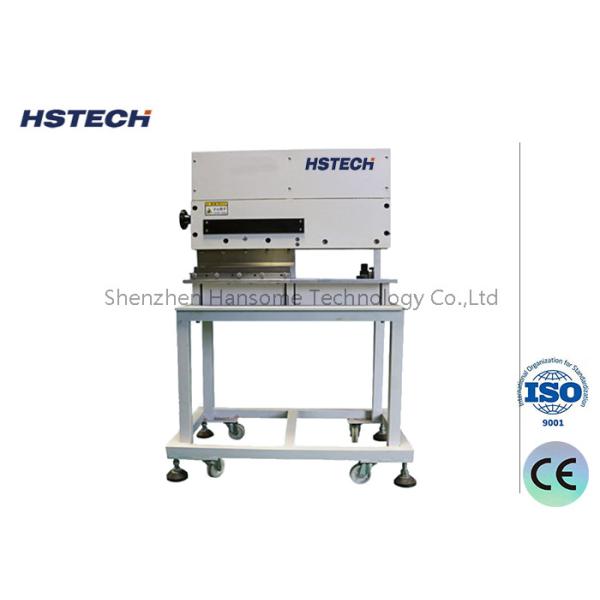

Low Force Stress Pneumatic Drive PCB Depaneling Equipment with 360mm Cutting Length for FR4 Aluminum Board
Low Force Stress Pneumatic Drive PCB Depaneling Equipment with 360mm Cutting Length for FR4 Aluminum Board
Low Force Stress Pneumatic Drive PCB Depaneling Equipment with 360mm Cutting Length for FR4 Aluminum Board
Low Force Stress Pneumatic Drive PCB Depaneling Equipment with 360mm Cutting Length for FR4 Aluminum Board
Specifications
Brand Name :
HSTECH
Model Number :
HS-310L
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,Western Union,D/P
Supply Ability :
200sets per month
Delivery Time :
10~15 work days
Packaging Details :
Wooden pacakge
Product name :
Pneumatic PCB depanelizer
Other name :
V-CUT PCB Separator
Voltage :
AC220V/110V
Pcb length :
0~ 360mm
Depaneling balde :
High quality guillotine blade
Warranty :
1 Year
Description
Low Force Stress PCB Depaneling Equipment for FR4 Aluminum Board with Pneumatic Drive
This advanced PCB depaneling equipment provides efficient and versatile cutting capabilities, specifically designed for precise separation of FR4, aluminum, copper, and fiberglass panels. The pneumatic drive system ensures cutting stability and durability while minimizing stress on sensitive components.
Advanced Cutting Technology
The machine features a straight-knife style parting design that finely separates pre-parted boards while avoiding bending or tensile stresses during the cutting process. Even sensitive SMD components like ceramic capacitors remain intact during separation, significantly improving product quality and reliability.
Key Features
  • Dedicated to separating PCB boards along V-cutting lines
  • Powerful flicker-free cutting with ultra-low stress
  • Pneumatic drive with solenoid valve control for efficient operation
  • Adjustable blade height for easy PCB board insertion gap adjustment
  • Independent lower blade adjustment for easy replacement and cost reduction
  • Customizable tray and positioning devices for non-V-groove PCB boards
  • Simple operation and maintenance suitable for non-skilled personnel
Technical Specifications
Product Name PCB Depanelizer
Model HS-310L
Part-up Height Max 39mm
Part-down Height Max 19mm
Air Supply 5Kgf/cm
Output 12.5 tons (gross)
Efficient Cutting Length 1-360mm
Linear Blade Size 360×43.5×6mm
PCB Thickness (With V Groove) 0.1mm~2.0mm
PCB Thickness (Without V Groove) 0.1mm~1.0mm
Blade Material Import High Quality High Speed Steel Tool
Separating Speed 1-300mm/s
V-cut Thickness 0.3-3.5mm
Air Consumption 200-400 (L/min)
Machine Size 700×325×400mm
Weight 130kg
Suitable Board All V-cut Boards

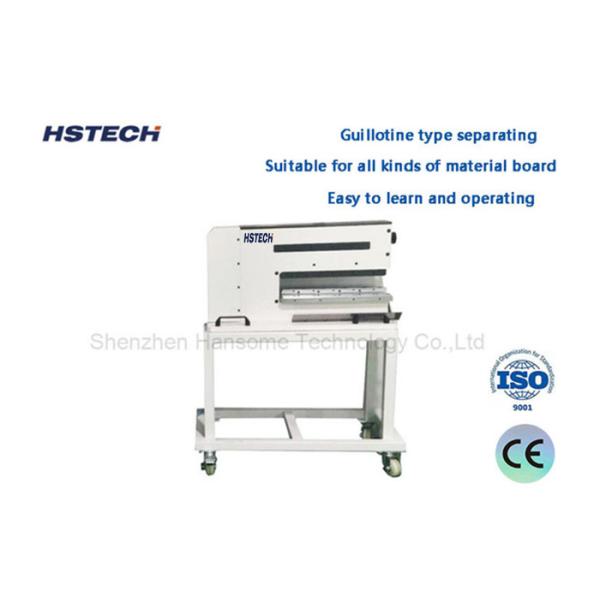

Product Images
Low Force Stress Pneumatic Drive PCB Depaneling Equipment with 360mm Cutting Length for FR4 Aluminum Board Low Force Stress Pneumatic Drive PCB Depaneling Equipment with 360mm Cutting Length for FR4 Aluminum Board
Application Examples
Low Force Stress Pneumatic Drive PCB Depaneling Equipment with 360mm Cutting Length for FR4 Aluminum Board
