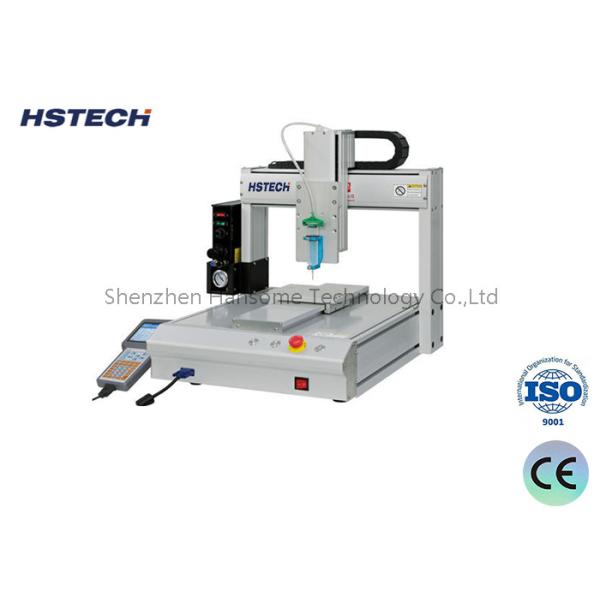

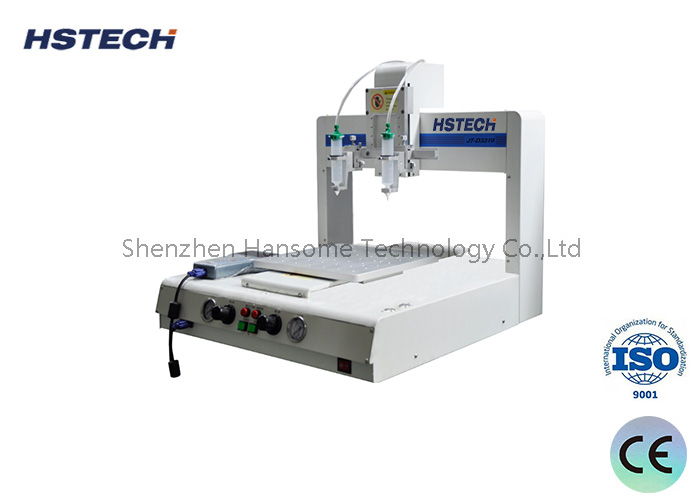

High Precision 4 Axis Glue Dispensing Machine with Teach Pendant Programming and 300mm/s Max Speed
High Precision 4 Axis Glue Dispensing Machine with Teach Pendant Programming and 300mm/s Max Speed
High Precision 4 Axis Glue Dispensing Machine with Teach Pendant Programming and 300mm/s Max Speed
High Precision 4 Axis Glue Dispensing Machine with Teach Pendant Programming and 300mm/s Max Speed
Specifications
Brand Name :
HSTECH
Model Number :
HS-D441
Certification :
CE
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
100pcs per week
Delivery Time :
5~7 work days
Packaging Details :
Wooden package, with foam
Product name :
4 Axis Glue dispensing machine
Driven System :
Stepper and Timing Belt
XYZ working range :
400*400*100mm
XYZ Speed :
Max 300mm/s
Repeat accuracy :
±0.02mm
Warranty :
1 Year
Description
High Precision Teach Pendant Stepping Motor Epoxy Glue Dispensing Machine
This advanced screw locking machine utilizes a teach pendant for high-precision screw locking operations, significantly enhancing production efficiency and accuracy.
Key Features
  • Simple teach pendant for easy programming and operation
  • Multi-functional continuous patching capability for complex three-dimensional trajectories
  • Parameterized dispensing control with adjustable size, speed, and timing
  • Specialized dispensing controller ensuring stable and clean dispensing performance
  • Versatile application for various surface fast dispensing and line drawing tasks
  • Optional fixtures and glue guns to meet specific customer requirements
  • Multi-head dispensing device for enhanced work efficiency
  • Software support for area display, pan, rotate, and other operations
  • Advanced trapezoidal acceleration and deceleration technology
  • High-speed Japanese stepping motor for stable and reliable performance
Technical Specifications
ModelHS-D441
Power Supply110V/220V 50-60Hz 350W
Glue Mixing Ratio1:1-10:1/Customizable
Dispensing Speed10-150g/5s (based on 1:1 glue proportion)
Dispensing PrecisionGlue Amount ±1%, Glue Proportion ±1%
X/Y/Z Working Range400*400*100mm (Z axis can be rotated)
XYZ SpeedMax 300mm/s
Drive SystemStepping Motor + Timing Belt
Repeatability±0.02mm
PatternLines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation
Potting PrecisionAmount ±1%, Ratio: ±1%
ProgrammingTeach Pendant
ControlPLC
Leak-proof FunctionValve with Vacuum Device
Document SupportCAD, CorelDRAW
Weight40kg
Dimension (L*W*H)616*685*645mm
High Precision 4 Axis Glue Dispensing Machine with Teach Pendant Programming and 300mm/s Max Speed High Precision 4 Axis Glue Dispensing Machine with Teach Pendant Programming and 300mm/s Max Speed
About HanSome Technology
Shenzhen HanSome Technology Co., Ltd (HSTECH) was founded in 2012 by senior EMS engineers. The company initially specialized in PCB processing equipment and has since expanded its portfolio to include PCB splitters and SMT cleaning machines. With a dedicated professional R&D team and experienced marketing department, HSTECH continuously innovates to provide cost-effective solutions that help customers reduce operational costs and improve production efficiency.
