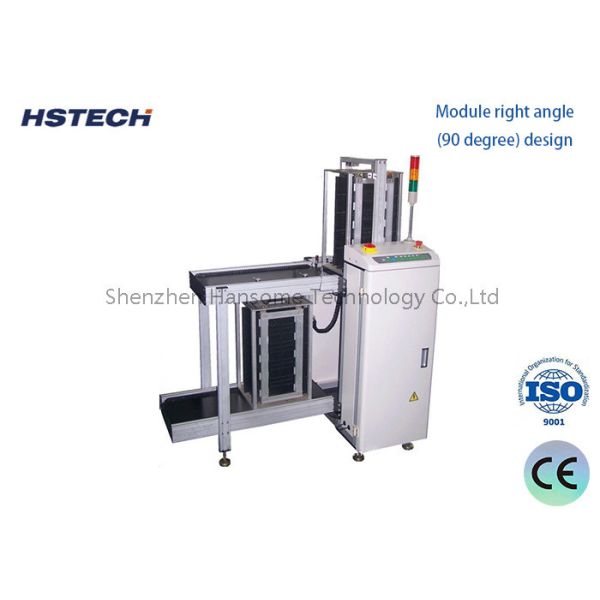

True Color Touch Screen Control PCB Loader with Tower Light Display and 6 Seconds Loading Time
True Color Touch Screen Control PCB Loader with Tower Light Display and 6 Seconds Loading Time
True Color Touch Screen Control PCB Loader with Tower Light Display and 6 Seconds Loading Time
True Color Touch Screen Control PCB Loader with Tower Light Display and 6 Seconds Loading Time
Specifications
Brand Name :
HSTECH
Model Number :
HS-250LD
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
50 sets per month
Delivery Time :
15~20 work days
Packaging Details :
Wooden package
Product Name :
PCB Loader
Color :
White
Power Supply :
AC110V/220V,50/60Hz
PLC :
MITSUBISHI
Relay :
Schneider
Optoelectric Switch :
Omron
Description

True Color Touch Screen Control PCB Loader PCB Handling Equipment With Tower Light Display

Products Description

PCB Loader​ :

This machine is used for the start of SMT production line, by pusing the pcbs out of the magazine to the conveyor of downstream machine.

Definition and function:
PCB loader is a special equipment for automatic loading of PCB (printed circuit board).
The main function is to automatically take materials from the raw material rack and accurately load them into the production line or subsequent process equipment.


Working principle:
PCB loader is usually composed of rack, vacuum suction cup, XY servo platform and other components.
The suction cup absorbs the PCB board through vacuum negative pressure, and the platform accurately controls the movement trajectory to take the PCB board from the rack to the specified position.
The whole process is automatically completed by the control system to achieve fast and efficient PCB loading operation.


Main features:
High degree of automation: fully automatic PCB picking and placing without manual operation.
High loading accuracy: repeatable positioning accuracy within ±0.05mm.
Strong adaptability: the suction cup position can be automatically adjusted according to different sizes of PCB.
High efficiency: the average loading efficiency of a single machine can reach 300-500 pieces/hour.
Save labor costs: greatly reduce the labor intensity of manual loading.


Application scenarios:
PCB manufacturing: automatically load bare boards to SMT patch equipment, wave soldering machines, etc.
Electronic assembly: load assembled PCB boards to test equipment, packaging equipment, etc.
Repair and repair: quickly and accurately load the repaired PCB boards to the repair equipment.

Specification

Model HS-250LD HS-330LD HS-390LD HS-460LD
Voltage AC110V/220V,50/60Hz,single phase,max 300A
PCB dimension (50*50)~(350*250) (50*50)~(455*330) (50*50)~(530*390) (50*50)~(530*460)
Magazine dimension 355*320*565 460*400*565 535*460*565 535*530*565
Air supply 0.4~0.6Mpa
Transport height 920±20(mm) standard
Loading time 6 sec
Magazine replace time around 20 secs
Transport direction L to R, or R to L,optional
PCB thickness Min 0.4mm
Pitches 1-4(10mm step)​
Communication SMEMA
Machine dimension 1100*780*1200 1400*860*1200 1500*920*1200 1600*1120*1200
Weight Approx 140kg Approx 180kg Approx 220kg Approx 230kg

Features

1, True color touch screen control

2, Mitsubishi PLC

3, Magazine capacity: top 1, bottom 1, or customized

4, Selective pitch: 10mm,20mm,30mm,40mm

5, PCB transport direction: L - R, or R - L,optional

6, Manual/Automatic run mode selection

7, Front rail fixed or rear rail fixed,optional

8, Standard height for SMT application(920±20mm)

9, Tower light display

10, SMEMA signal

True Color Touch Screen Control PCB Loader with Tower Light Display and 6 Seconds Loading Time

Packing & Delivery
Item
 PCB Loader
Package
1 set into one wooden carton as safety condition
External Dimension
1100*780*1200mm
Weight
about 140-230kgs
Delivery
about 15-20 working days
Payment
D/P, T/T, Western Union, MoneyGram
Port
Shenzhen
Shipment
A.By Courier: 4-7 Working days by special offer
B.By Air: 7 Working days at appointed airport
C.By Sea: 20-25 Working days at appointed port
