5 Axis Automatic Soldering Robot for Semiconductor and Electronic Products
5 Axis Automatic Soldering Robot for Semiconductor and Electronic Products
5 Axis Automatic Soldering Robot for Semiconductor and Electronic Products
5 Axis Automatic Soldering Robot for Semiconductor and Electronic Products
Specifications
Brand Name :
HSTECH
Model Number :
HS-S5331R
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
D/P, T/T, Western Union, MoneyGram
Supply Ability :
200 pcs per month
Delivery Time :
7~10 work days
Packaging Details :
Wooden package, with foam inside
Product name :
Automatic soldering robot
Soldering head :
Single
If rotation :
Yes
Voltage :
220V/110V, optional
External communication :
RS232
Work table :
Dual
Programing :
Teach Pandent
Description

Single Double Y Platform Temperature Control 5 Axis Automatic Soldering Robot

Introduction

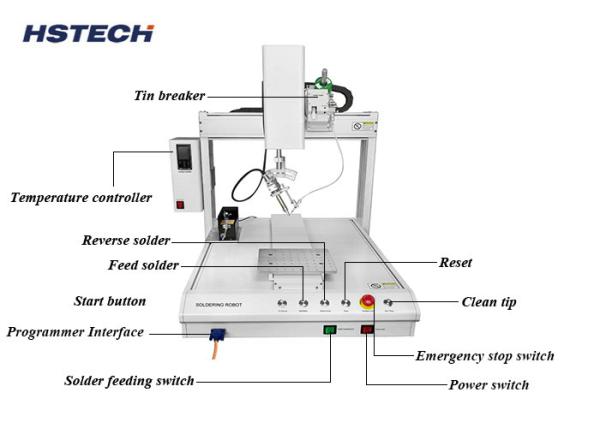

We call this soldering robot a 5 axis soldering machine, it based on a 4 axis soldering robot and plus a 360 degree rotation R axis, so it has larger soldering range.

Application

1, Semiconductor Products

2, optical products

3, Electronic Products

4, General home appliances

5, Precision Machines/Electrical Products

6, Large-scale mechanical products

7, General Consumer Goods

Features

  1. 5-axis soldering capability.

  2. Stepper motor control for precision.

  3. Advanced heating & broken tin management.

  4. Hiwin Linear guide for smooth, flat movements.

  5. Versatile soldering: spot, drag, & more.

  6. Private aluminum alloy arm, stable & rust-resistant.

  7. Pendant programming with 99 program storage.

  8. Smoke filter system for longer iron life & better soldering.

Specification

Model HS-S5331R
Power supply Meanwell driver AC110V/220V
Air pressure 0.45-0.5Mpa
Axis 5





Moving range

 X 500mm
Y1 300mm
Y2 300mm
Z 100mm
R 360degree



Moving speed		 X/Y1/Y2 1-600mm/s
Z 1-300mm/s
R 1-100mm/s
Transport method Linear guide
Repeat accuracy ±0.05mm
Platform load capacity 10kg
Z Axis load capacity 5kg
Y platform size 190*150mm
Heater power 150W
Edit mode Handle panel
Program capacity 99
Communication port RS232
Feeding Single tin feeding system
Solder tin diameter 0.3-1.5mm
Machine dimension 720*580*645mm
Net Weight 65kg
