High Precision Desktop Automatic Glue Dispenser with Vision System and 300mm/s Speed for Electronics Manufacturing
High Precision Desktop Automatic Glue Dispenser with Vision System and 300mm/s Speed for Electronics Manufacturing
High Precision Desktop Automatic Glue Dispenser with Vision System and 300mm/s Speed for Electronics Manufacturing
High Precision Desktop Automatic Glue Dispenser with Vision System and 300mm/s Speed for Electronics Manufacturing
High Precision Desktop Automatic Glue Dispenser with Vision System and 300mm/s Speed for Electronics Manufacturing
High Precision Desktop Automatic Glue Dispenser with Vision System and 300mm/s Speed for Electronics Manufacturing
Specifications
Brand Name :
HSTECH
Model Number :
HS-D331-AB
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
50 PCS/Month
Delivery Time :
5-7 days
Packaging Details :
Wooden
Product name :
Glue Dispensing Machine
Ratio :
From 1:1 to 10:1
Driven Type :
Electric
Drive System :
Stepping motor+Timing belt
Materialcompatibility :
Water-based, UV glue, epoxy resin
XYZ Speed :
Max 300mm/s
Machinery Test Report :
Provided
Warranty :
1 year
Description
Visual AB Glue Dispensing Machine – HS-D331-AB
Desktop Automatic AB Glue Dispensing Robot | High Precision Potting & Sealing System

Product Overview

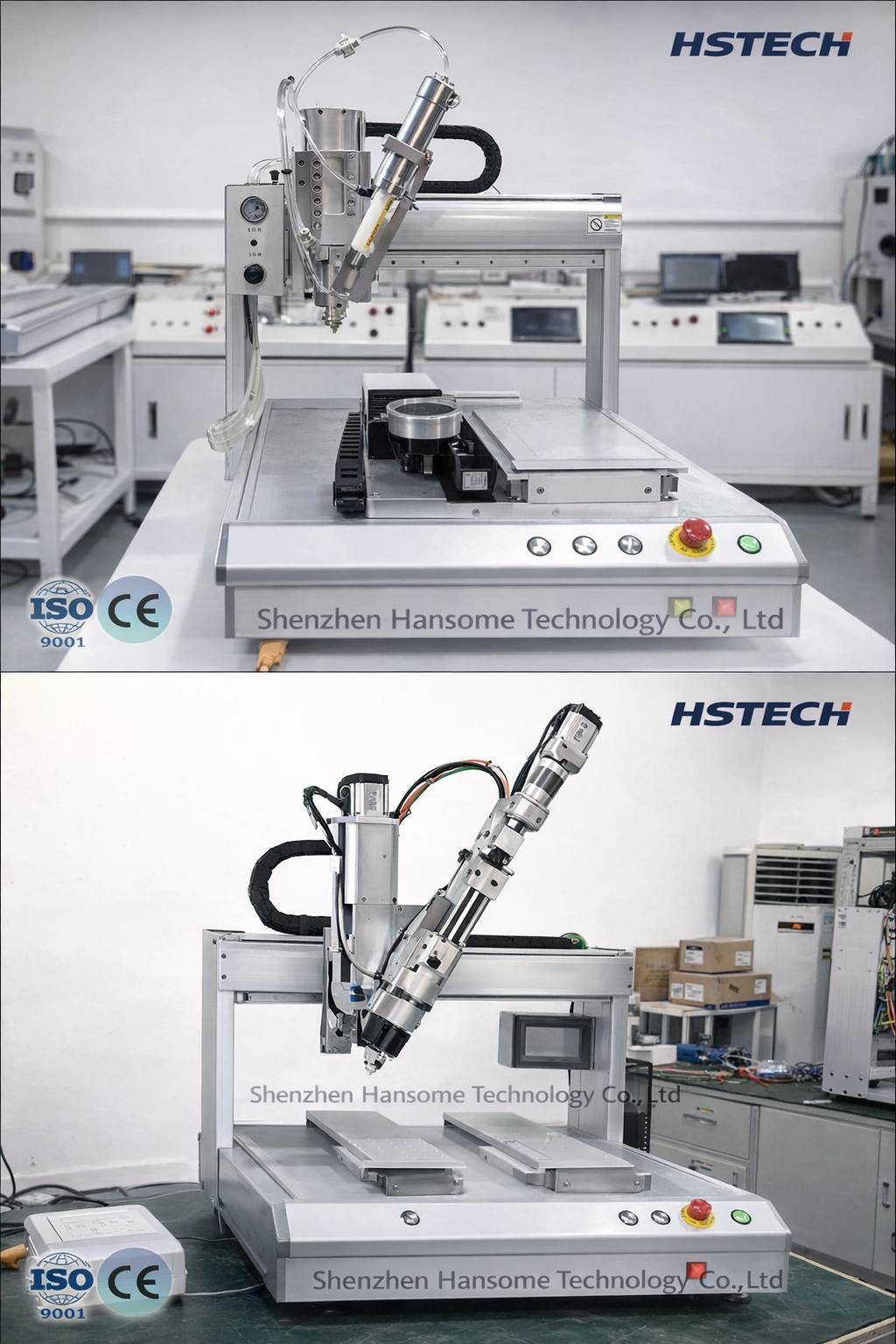

The HS-D331-AB Automatic AB Glue Dispensing Machine is a desktop XYZ dispensing robot designed for precise two-component (A/B) glue mixing, dispensing, and potting applications.

It is widely used in electronics manufacturing, PCB assembly, LED modules, power supplies, sensors, and industrial components, delivering stable glue output, accurate mixing ratios, and repeatable dispensing performance.


Key Features
✔ Easy Programming & User-Friendly Operation
  • Teach pendant programming
  • Easy to learn, no complex software required
  • Suitable for both engineers and operators
✔ High-Precision XYZ Dispensing System
  • Supports points, lines, arcs, circles, and complex 3D non-planar paths
  • Smooth motion control with trapezoidal acceleration & deceleration
  • Micro-line interpolation for stable glue flow
✔ Stable & Clean Glue Dispensing
  • Dedicated dispensing controller
  • Accurate glue output, no dripping or leakage
  • Consistent bead width and dispensing volume
✔ Accurate AB Glue Mixing & Potting
  • Precise A/B mixing ratio control
  • Ideal for epoxy resin, silicone, PU, and conductive adhesives
  • Ensures uniform curing and strong bonding
✔ Flexible Configuration
  • Compatible with:
    • Different glue guns
    • Custom fixtures
    • Heating and temperature control systems
  • Adaptable to various product sizes and shapes
High Precision Desktop Automatic Glue Dispenser with Vision System and 300mm/s Speed for Electronics Manufacturing
Suitable Adhesives

This automatic AB glue dispenser supports a wide range of materials, including:

  • Silicone
  • Epoxy resin adhesive
  • EMI conductive adhesive
  • UV adhesive
  • Sealant
  • PUR hot melt adhesive
  • Grease
  • Silver glue
  • Red glue
  • Self-adhesive
  • Solder paste
  • Heat dissipation paste

Typical Applications
  • PCB potting & encapsulation
  • LED lighting modules
  • Power supply sealing
  • Sensor potting
  • Electronic component bonding
  • Automotive electronic parts
  • Industrial control modules

Common Search Keywords:
epoxy potting machine, PCB glue dispensing machine, LED glue dispenser, electronic potting system

Technical Parameters
Item Specification
Model HS-D331-AB
Working Range (X/Y/Z) 300 × 300 × 100 mm
XYZ Speed Max. 300 mm/s
AB Glue Mixing Ratio 10:1 or customizable
Drive System Stepping motor + timing belt
Repeatability ±0.01 mm
Potting Precision Amount ±1%, Ratio ±1%
Operation Mode Automatic
Programming Teach pendant
Control System Board card
Working Temperature 10–40°C
Weight 45 kg
Dimensions (L×W×H) 510 × 620 × 610 mm
Power Supply AC 110–220V, 50/60Hz, 300W

Why Choose HSTECH AB Glue Dispensing Machine?
  • Reliable desktop automatic dispensing solution
  • High repeatability and precise glue control
  • Suitable for small to medium batch production
  • Compact design, easy integration into production lines
  • Proven performance in electronics manufacturing

SEO Keyword Summary
  • AB glue dispensing machine
  • Automatic glue dispensing robot
  • Desktop dispensing machine
  • Epoxy resin potting machine
  • PCB glue dispenser
  • XYZ dispensing robot
  • Two-component glue dispenser
  • Automatic potting system
