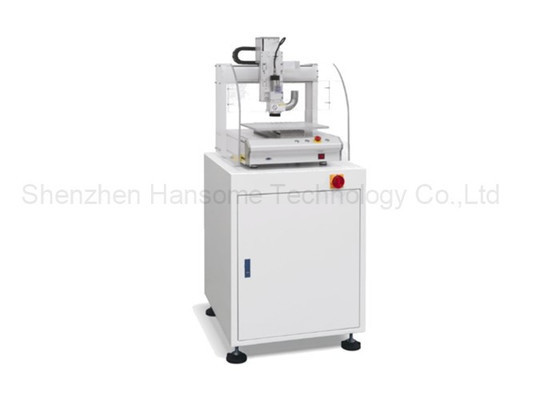

The Multi-Function Touch Screen PCB Router Machine is a high-precision depaneling solution designed for cutting PCB boards efficiently and accurately. Equipped with a high-speed routing spindle and a 3-axis desktop motion system, this machine ensures smooth cutting performance for various PCB shapes including straight lines, arcs, and circular boards.

With a user-friendly touch screen programming system and teach pendant, operators can easily set cutting paths and parameters, making it ideal for electronics manufacturing environments such as SMT production lines, PCB assembly plants, and EMS factories.

This compact yet powerful router machine helps improve cutting accuracy, reduce stress on PCB boards, and enhance overall production efficiency.

The machine is equipped with a 3-axis desktop moving system (X/Y/Z) to ensure precise and stable cutting performance.

A high-speed spindle with 20,000 - 40,000 RPM provides clean and smooth PCB cutting results, minimizing burrs and improving edge quality.

The machine adopts Taiwan HIWIN brand linear guides, ensuring high stability, smooth movement, and long service life.

With an intuitive touch screen interface and teach box programming, operators can easily create and adjust routing paths.

An upper dust collection design keeps the cutting platform clean and improves the working environment.

The machine supports multiple cutting paths, including:

• Straight line cutting
• Arc cutting
• Circular PCB depaneling

This makes it suitable for various PCB designs used in electronics manufacturing.

The fully enclosed operating area provides:

• Safer operation
• Lower noise
• Improved dust control

The PCB Router Machine is widely used in electronics manufacturing industries, including:

• SMT production lines
• PCB assembly factories
• EMS electronics manufacturing
• LED board production
• Consumer electronics manufacturing

It is ideal for depaneling FR-4 PCBs, aluminum PCBs, and various small electronic circuit boards.
