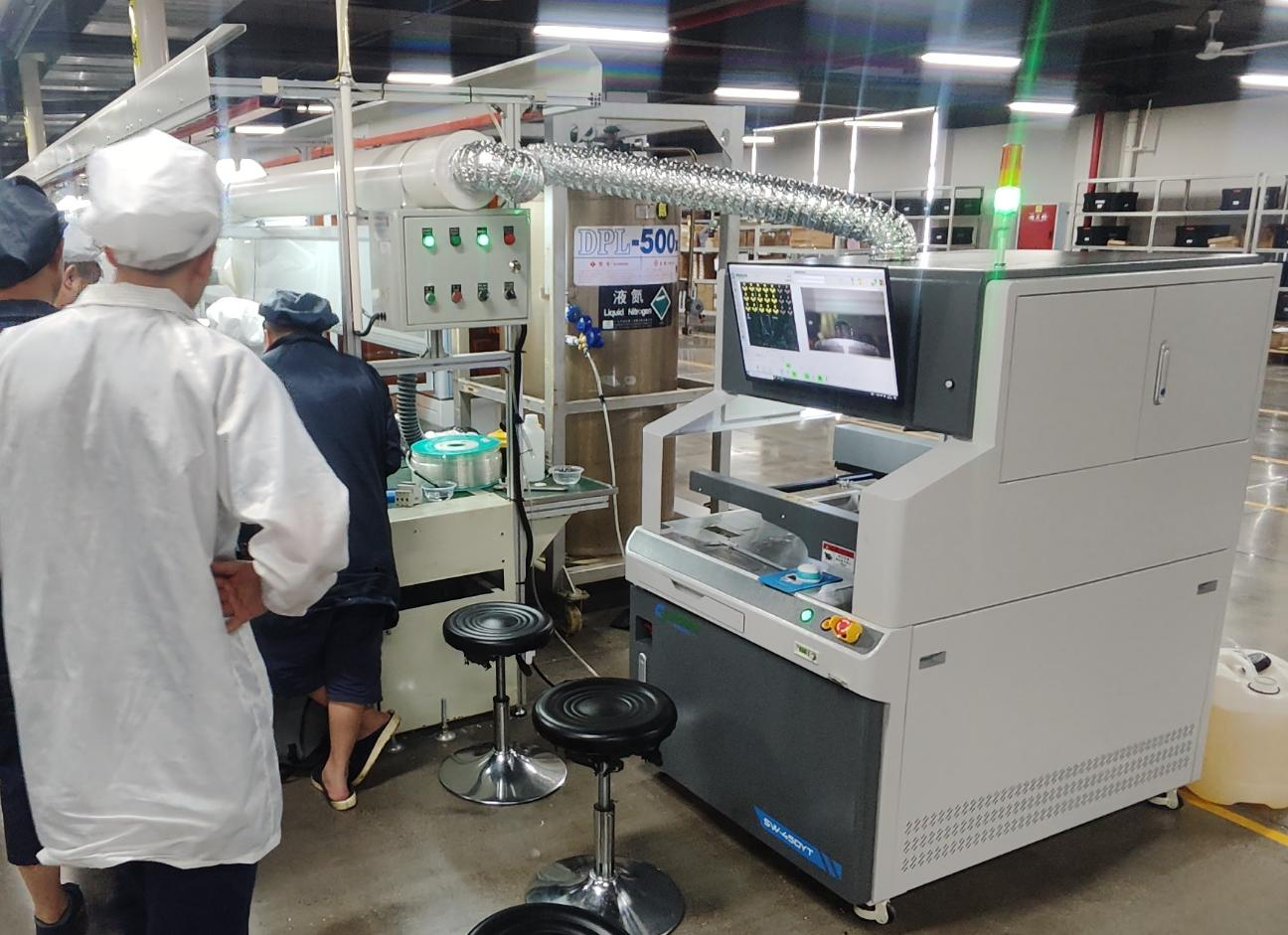

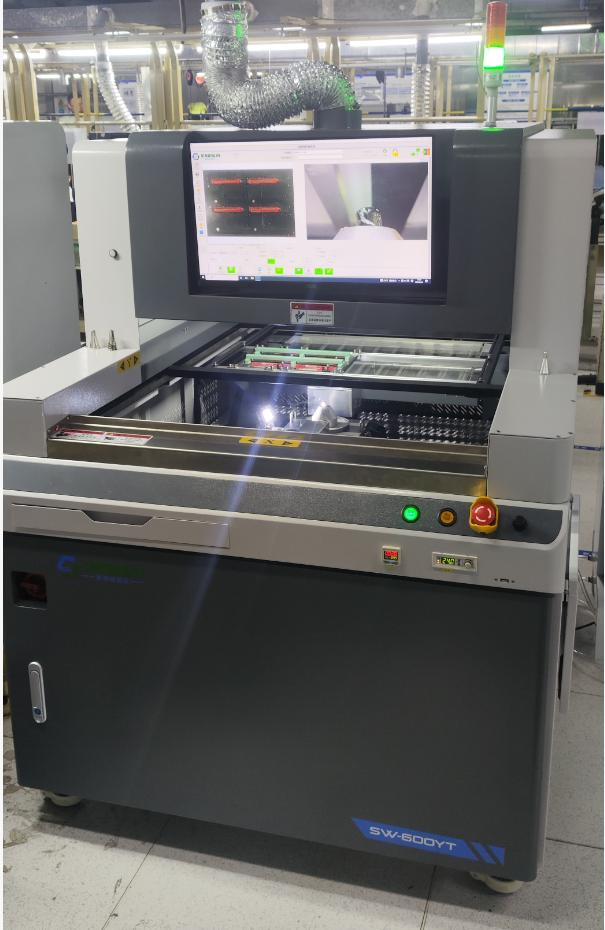

5.5KW High Precision Selective Wave Soldering Machine With N2 Protection For PCB Soldering System
5.5KW High Precision Selective Wave Soldering Machine With N2 Protection For PCB Soldering System
5.5KW High Precision Selective Wave Soldering Machine With N2 Protection For PCB Soldering System
5.5KW High Precision Selective Wave Soldering Machine With N2 Protection For PCB Soldering System
5.5KW High Precision Selective Wave Soldering Machine With N2 Protection For PCB Soldering System
5.5KW High Precision Selective Wave Soldering Machine With N2 Protection For PCB Soldering System
Specifications
Brand Name :
HSTECH
Model Number :
HS-600YT
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
30 PC/Month
Delivery Time :
25-30 days
Packaging Details :
Wooden
Product name :
Selective Wave Soldering Machine
Substrate Thickness :
0.8～3 mm
Total Power :
AC 220V 5.5KW
Flux Capacity :
2 L
Air Source :
0.5-0.7Mpa
Warranty :
1 Year
Description
5.5KW High Precision Selective Wave Soldering Machine With N2 Protection For PCB Soldering System
Selective Wave Soldering Machine - High Precision PCB Soldering Solution

Our Selective Wave Soldering Machine is designed for high-precision PCB assembly, especially suitable for THT (Through-Hole Technology) components. Equipped with advanced nitrogen (N₂) protection and infrared preheating system, it ensures excellent soldering quality and production stability.

Key Features
High Efficiency Infrared Preheating System
  • Bottom PCB preheating power: 2.5KW (Infrared)
  • Soldering synchronization preheating: 800W (Infrared)
  • Ensures uniform temperature distribution and reduces thermal stress
Stable and Powerful Performance
  • Total power: 5.5KW
  • Power supply: AC 220V
  • Designed for continuous industrial operation
Nitrogen Protection System (N₂)
  • Nitrogen purity requirement: 99.999%
  • Pressure: 0.5MPa
  • Consumption: 20 -30 L/min (1.2-1.8 m³/h)


Specification


Applicable PCB Board Size

L*W: 50×50 ~ 600×500 mm

Applicable PCB Board Thickness

Substrate Thickness: 0.8 ~ 3 mm / Lead Length: Within 3mm

Component Height

Below 150mm above the substrate / Below 75mm below the substrate

Substrate Shape & Conditions

1. Substrate Edge Margin: ≥3mm of substrate process edge2. Weight of components with substrate: ≤5KG3. Substrate Warpage: ≤0.5 mm

Solder Pot

Solder Pot Material/Capacity: Full titanium alloy material / 12KGSolder Tank Capacity: Power: 4*500W 2KW

Bottom Full-board Preheating

Infrared preheating 2.5 KW

Synchronous Preheating Power During Soldering

Infrared preheating 800 W

Total Power

AC 220V 5.5KW

N₂ Requirements

Nitrogen Purity: 99.999%Pressure/Consumption: 0.5MPa / 20ℓ/min~30ℓ/min / 1.2-1.8 cubic H

Flux Nozzle

0.5mm Japan imported original precision atomizing nozzle / 130um line spray (optional)

Flux Capacity

2 L

Air Source

0.5-0.7Mpa

Nozzle Inner Diameter

φ 3mm ~ φ 20mm, customizable size

Wave Height

Automatic calibration/height measurement

System Control

PC+PLC (Windows + Huichuan)

Programming Software

Support programming by picture drawing (convenient and fast)

Video Monitoring

Real-time video monitoring for easy viewing of soldering effects

Power/Power Rating

Single-phase 220V±10% Starting power: 5KW

Weight

400KG (including 12KG solder)

Overall Dimensions

LWH 1200×1530×1600 mm

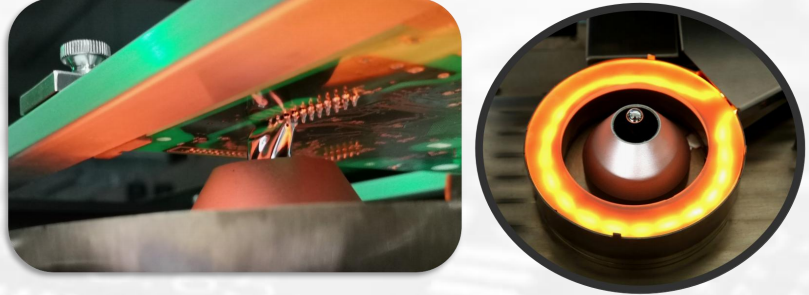

Top Side Preheating (Optional)
1KW infrared heating tube preheats the PCB board top before soldering, meeting high temperature requirements for special elements. Reduces thermal shock, activates flux activity, improves pin tin penetration, and enhances overall soldering quality.
5.5KW High Precision Selective Wave Soldering Machine With N2 Protection For PCB Soldering System

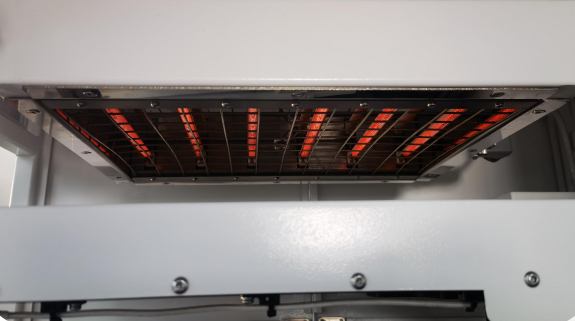

Bottom Side Preheating
Utilizes fast infrared heat conduction to preheat PCB boards before soldering and maintains heating during the process. Features synchronized "preheating + soldering" design principle that improves efficiency, increases tin penetration rate, reduces thermal shock for heat-sensitive elements, and ensures high cleanliness of PCB after soldering.

5.5KW High Precision Selective Wave Soldering Machine With N2 Protection For PCB Soldering System

Applications

  • SMT + THT hybrid production lines
  • Automotive electronics
  • Consumer electronics
  • Industrial control boards
  • LED and power modules
