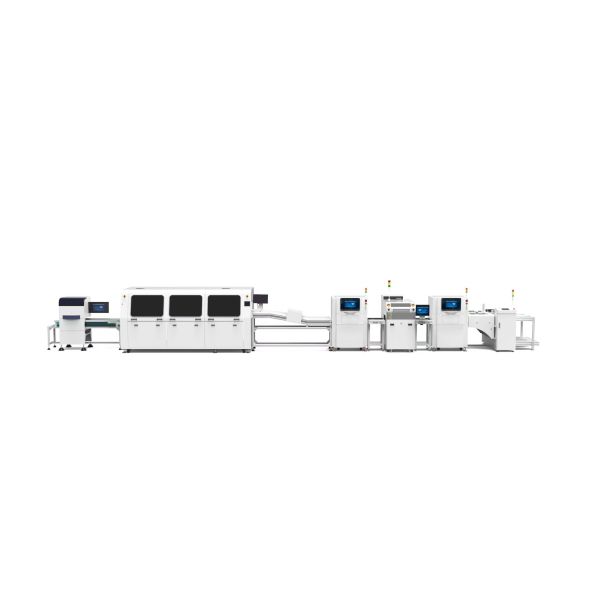

High-Speed AOI Automatic Optical Inspection Machine For Solder Joint Inspection
High-Speed AOI Automatic Optical Inspection Machine For Solder Joint Inspection
High-Speed AOI Automatic Optical Inspection Machine For Solder Joint Inspection
High-Speed AOI Automatic Optical Inspection Machine For Solder Joint Inspection
High-Speed AOI Automatic Optical Inspection Machine For Solder Joint Inspection
High-Speed AOI Automatic Optical Inspection Machine For Solder Joint Inspection
Specifications
Brand Name :
HSTECH
Model Number :
HS-D1510/HS-D1510L
Certification :
CE,ISO
MOQ :
1 PC
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
30 PC/Month
Delivery Time :
15-30 days
Packaging Details :
Wooden
Product name :
Solder Joint Inspection Intelligent
Inspection Speed :
0.22sec/FOV
Camera Resolution :
Standard 15MP
Power Consumption :
MAX 1kw
Material :
Stainless steel
Warranty :
1 year
Description
High-speed AOI Automatic Optical Inspection Machine For Solder Joint Inspection
Solder Joint Inspection Intelligent AOI
The world's first AOI that requires no parameter setting, with powerful inspection capability. It captures real-time board images through high-precision color industrial cameras, adopts deep neural network algorithms, one-click intelligent search, intelligent assisted programming, and can intelligently judge various defects of PCBA after wave soldering.
Product Features
  • AI ultra-fast programming, extremely simple operation
  • Friendly human-machine interface, user-friendly operation
  • Traceable data, powerful SPC statistical analysis and multi-dimensional 3D display
  • Powerful inspection capability, effectively intercepting various solder joint defects
  • Optional single-track or dual-track design
  • Supports fixture reflow penetration, flexibly adapts to various production scenarios
  • Lens anti-fouling protection, reduces maintenance frequency
  • Imported servo motor lead screw, high speed, high precision, stable and low wear
Detectable Instances
Inspection of defects such as excess solder, insufficient solder, solder bridging, no pin exposure, cold solder, solder void, solder balls, wrong parts, missing parts, etc. in post-wave soldering process.
Product Specifications
Category Specification Solder Joint Inspection Intelligent AOI
Model HS-D1510 (Bottom View Solder Joint Inspection, Standard) Solder Joint Inspection Intelligent AOI
HS-D1510L (Bottom View Solder Joint Inspection for Large Board)
Performance Parameters
Detection Method Convolutional Neural Network, advanced deep learning models and other multiple algorithms
New Program Creation Approx. 5-20 minutes for new machine
Inspection Speed 0.22sec/FOV
PCBA Size Standard: 50mm*50mm~510mm*460mm; Large Board: 50mm*50mm~710mm*640mm
PCBA Thickness 0.5mm~6mm
PCBA Component Height Top: 120~165mm; Bottom: 50~90mm
Camera Resolution Standard 15MP
Hardware Configuration
Light Source RGBW four-color ring LED light source
Camera 12MP color area scan industrial camera, optional configuration as needed
CPU Intel i7, optional i9
GPU NVIDIA 12G, optional 16G
Memory/Storage 64G DDR / 1T SSD + 8T mechanical hard drive
Monitor 23.8" FHD display
Motion Mechanism Marble platform, high-precision servo motor lead screw
Track Adjustment Electric
Track Load Chain ≤12kg, customizable heavy load 25KG; Solder point side: belt ≤3kg, or chain ≤15kg
System Equipment
Operating System Ubuntu 20.04 LTS 64bit
Control System Motion control card, PLC and upper computer control
Working Voltage AC 220V±10%
Power Consumption MAX 1kw
External Dimensions / Electrical
Temperature/Humidity Working temperature 0~45℃, 20%~80%RH without condensation
Overall Weight Standard machine: 525KG; Large board machine: 700KG
External Dimensions Standard: L*W*H = 1060mm*1340mm*1500mm (Note: excluding display bracket, three-color light)

Large board: L*W*H = 1335mm*1522mm*1533mm (Note: excluding display bracket, three-color light)
Functions
  • High-precision, high-resolution color digital camera, outputting high-quality images
  • Powerful barcode recognition function, supporting 1D, 2D codes; Track electric adjustment
  • Strong versatility, suitable for fixtures, non-fixtures, boards with edges, without edges, no jamming
  • High-speed and stable transmission, adapting to various fixtures and PCBA shapes
  • High detection rate, low false judgment rate
  • AI intelligent assisted programming
  • Concise and friendly human-machine interface, user-friendly operation, master in 20 minutes
  • Powerful learning ability, supporting continuous supplementary learning, the more learning, the better the effect
  • Powerful character recognition function, effectively recognizing various characters
  • Multi-machine co-production (4 types)
  • Track width electric adjustment
  • Unique track design, better light source irradiation angle, avoiding dark areas
  • Millions of sample training, wider application scenarios, fewer errors
  • Multi-task software architecture, online editing during testing, save and automatically synchronize
  • Multi-dimensional report display, effectively supporting management needs
  • Defect repair light guidance, simple and clear (optional)
  • Powerful SPC analysis and early warning
  • Remote control, remote debugging, centralized review
  • Supports fixture bottom reflow
