Specifications
Brand Name :
HSTECH
Certification :
CE,ISO
MOQ :
1PC
Price :
Negotation
Payment Terms :
T/T
Supply Ability :
50 PC/Month
Delivery Time :
15-20 days
Packaging Details :
Wooden
Model Number :
HS-LD330
Place of Origin :
China
Transport Height :
910±30mm
PCB Loading Time :
Approx 6 seconds
Magazine Replace Time :
Approx 30 seconds
Transportation Direction :
L~R.Or R~L
Operation :
Front operation
Track Fixed Side :
Front side(or specify)
Description

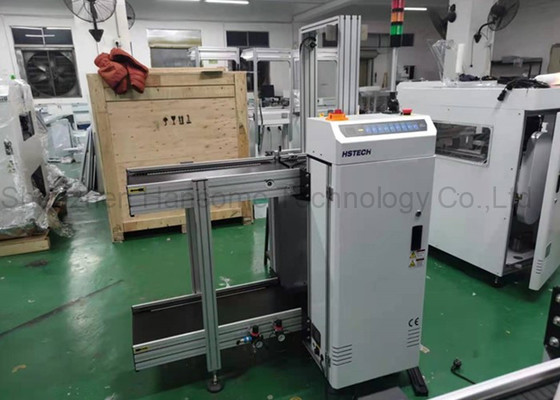

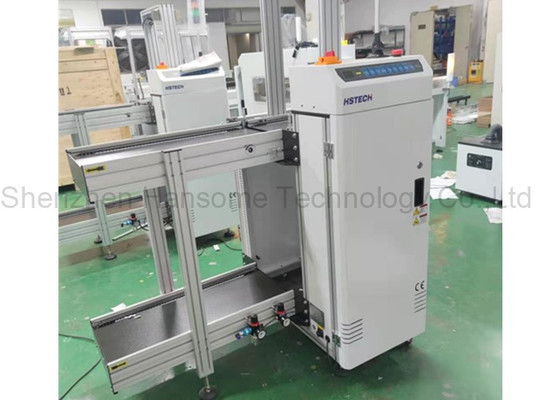

Right Angle Design PCB Loader with Flexible Adaptation and 6-Second Loading Time
The Right Angle PCB Loader features a modular design that provides flexible adaptation to various production line layouts. With advanced PCB handling technology and sophisticated operational features, this loader ensures efficient and reliable performance in SMT production environments.
Key Features
  • Easy operation with light-contact LED keys or touch screen control panels
  • Stable and reliable integrated control system for consistent performance
  • Effective thrust design ensures PCB protection with zero breakage guarantee
  • Flexible suction cup design with easy adjustment of suction plate position
Technical Specifications
ModelHS-LD330
Product NamePCB Magazine Loader
Transport Height920±20mm
PCB Loading TimeApproximately 6 seconds
Magazine Replace TimeApproximately 30 seconds
Transportation DirectionLeft to Right, or Right to Left
OperationFront Operation
Track Fixed SideFront Side (or specify)
Power Supply220V, 50/60Hz, ±10%
Air Pressure4-6bar
PCB ThicknessMinimum 0.4mm
Magazine QuantityUpper Side: 1 pc, Bottom Side: 2 pcs
Pitch Selection1-4 (10mm pitch)
Conveyor Speed0.5-20M/min or customized
SignalSMEMA
Model Selection Guide
Model HS-LD250 HS-LD330 HS-LD390 HS-LD460
Efficient PCB Length 50*50~350*250mm 50*50~455*330mm 50*50~530*390mm 50*50~530*460mm
Machine Size 1400*800*1200mm 1650*880*1200mm 1800*940*1200mm 1800*1010*1200mm
Magazine Size 355*320*563mm 460*400*563mm 535*460*570mm 535*530*570mm
Weight 140kg 180kg 220kg 260kg
Right Angle Design PCB Loader with Flexible Adaptation and 6 Seconds Loading Time for SMT Production Lines
Right Angle Design PCB Loader with Flexible Adaptation and 6 Seconds Loading Time for SMT Production Lines
Suitable Applications
  • SMT full-auto production lines
  • PCB assembly & electronics manufacturing
  • Compact factory upgrading & automation retrofitting
  • High-mix small-batch & mass production
  • Markets: Europe, America, Southeast Asia, global electronics manufacturers
Why Choose Our PCB Loader
We focus on SMT handling equipment with mature design, stable performance and cost-effective pricing. Our Right Angle PCB Loader delivers fast loading, flexible adaptation and reliable quality to help you reduce labor costs, improve product yield and accelerate intelligent manufacturing.
