Specifications
PCB Thickness Range :
0.4~5mm
Model Number :
HS-DC250/HS-DC330
Price :
Negotiation
Packaging Details :
Wooden
Place of Origin :
China
Certification :
CE,ISO
Payment Terms :
T/T
Product name :
PCB Surface Cleaner
Air Pressure :
4-6 bar
Warranty :
1 year
Delivery Time :
5-7 days
MOQ :
1 PC
Brand Name :
HSTECH
Supply Ability :
100 PC/Month
Track Fixed Side :
Front side
Weight :
100kg/130KG
Description

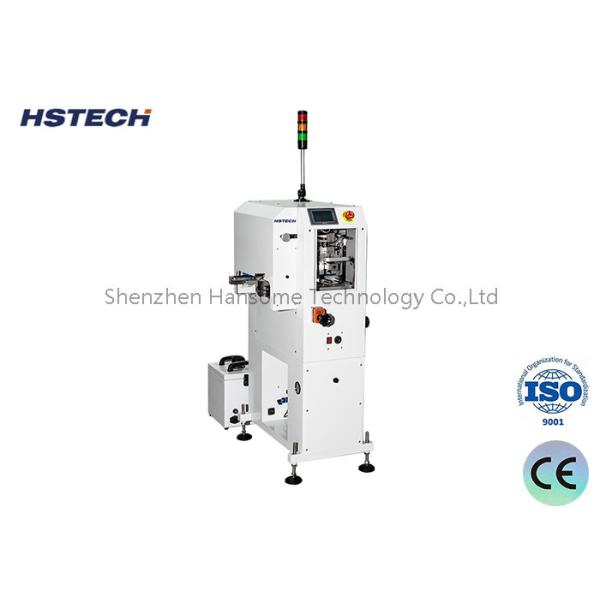

High-efficiency PCB Surface Cleaner SMT Line Dust & Static Removal Machine With SMEMA
The HSTECH HS-DC250 / HS-DC330 PCB Surface Cleaner is a high-precision, fully automated cleaning solution purpose-built for modern SMT (Surface Mount Technology) production lines. Installed directly before the screen printing process, this machine eliminates dust, glass fibers, static electricity, and other surface contaminants from PCBs, ensuring optimal solder paste printing quality and minimizing assembly defects like tombstoning, solder balls, and insufficient wetting.
Product Overview
Engineered for seamless integration into SMT workflows, it supports standard SMEMA communication, bidirectional board transport, and user-friendly multilingual operation, making it ideal for consumer electronics, automotive electronics, and industrial PCB manufacturing applications.
Key Features
  • SMT Line-optimized Design: Developed to meet specific SMT production requirements with PLC control for stable, consistent operation. Supports installation before/after SMT printers and AI plug-in equipment.
  • High-efficiency Cleaning System: Combines ultra-high-speed anti-static spiral brushes and vacuum extraction to remove surface particles with 99%+ cleanliness rate.
  • Advanced Static Elimination: Optional Keyence-brand static eliminators completely eliminate electrostatic interference, protecting sensitive PCB components from ESD damage.
  • Low-maintenance Performance: Roller cleaning mechanism designed for long-lasting, stable results with draw-out design for simplified maintenance.
  • User-friendly Operation: Dual-language (English/Chinese) interface display with SMEMA signal compatibility for seamless SMT line integration.
Specifications
Item HS-DC250 HS-DC330
Effective PCB Size 50×50~330×250mm 50×50~455×330mm
Machine Dimension 650×800×1300mm 800×950×1300mm
Weight 100kg 130kg
Technical Parameters
Parameter Specification
Transport Height 900±30mm (industry standard SMT line height)
Transportation Direction Left-to-Right (L->R) or Right-to-Left (R->L) bidirectional
Cycle Time Approx 8 seconds per PCB
Sticker Roller Qty 1 reel
Adhesive Paper Qty 2 reels
Ionizer Qty 2 pcs (static elimination units)
Brush Qty 1 pc
Track Fixed Side Front side
Power Supply AC100-230V, 50/60Hz
Air Pressure 4-6 bar
Air Consumption Max 10L/min
PCB Thickness Range 0.4~5mm
Communication Protocol SMEMA (standard SMT equipment communication)
Working Principle & Benefits
Multi-stage Cleaning Process:
  • Brush Cleaning: High-speed anti-static spiral brushes dislodge surface dust, fibers, and particles
  • Vacuum Extraction: Integrated vacuum system removes loosened contaminants to prevent recontamination
  • Static Elimination: Ionizers neutralize static electricity, eliminating ESD damage risk to components
  • Adhesive Roller Touch Cleaning: Precision adhesive rollers capture residual particles, achieving 99%+ cleanliness
Key Benefits:
  • Reduce printing defects by up to 70% caused by surface contamination
  • Improve solder joint reliability and final product yield
  • Extend service life of downstream equipment like printers and placement machines
  • Minimize manual cleaning and rework, boosting overall line efficiency
Application Scenarios
  • Consumer electronics assembly lines (smartphones, laptops, wearables)
  • Automotive electronics manufacturing (ECUs, sensors, control modules)
  • Industrial control PCB production
  • Medical device electronics assembly
  • Any SMT production process requiring high-precision solder paste printing
Product Images
High-efficiency PCB Surface Cleaner SMT Line Dust & Static Removal Machine With SMEMA High-efficiency PCB Surface Cleaner SMT Line Dust & Static Removal Machine With SMEMA High-efficiency PCB Surface Cleaner SMT Line Dust & Static Removal Machine With SMEMA
