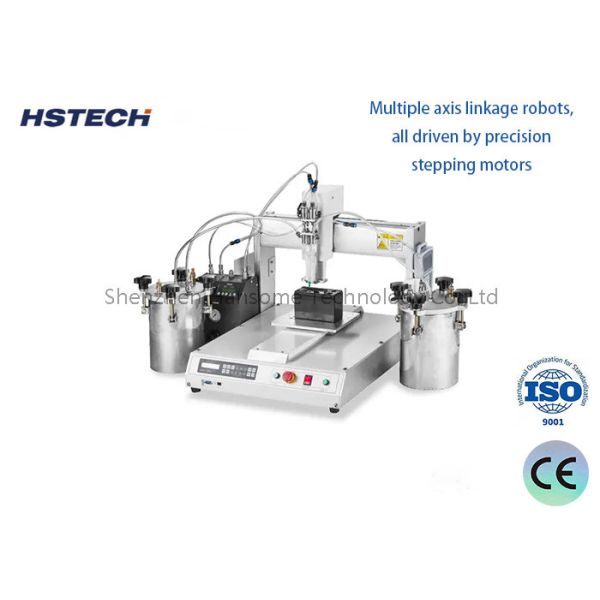

Advanced Motion Software Functions Dual Tank AB Glue Dispensing Machine With Timing Belt
Advanced Motion Software Functions Dual Tank AB Glue Dispensing Machine With Timing Belt
Advanced Motion Software Functions Dual Tank AB Glue Dispensing Machine With Timing Belt
Advanced Motion Software Functions Dual Tank AB Glue Dispensing Machine With Timing Belt
Advanced Motion Software Functions Dual Tank AB Glue Dispensing Machine With Timing Belt
Advanced Motion Software Functions Dual Tank AB Glue Dispensing Machine With Timing Belt
Specifications
Product name :
Dispensing Machine
Control Mode :
Board card control
Price :
Negotiation
Packaging Details :
Wooden
Model Number :
HS-D5331-AB
Place of Origin :
China
MOQ :
1 PC
Certification :
CE,ISO
X/Y/Z Working Range :
500*300*300*100mm
Delivery Time :
5-7 days
Payment Terms :
T/T
Brand Name :
HSTECH
Warranty :
1 year
Supply Ability :
100PC/Month
Drive System :
Stepping motor + Timing belt
XYZ Moving Max Speed :
300mm/s
Description
Advanced Motion Software Functions Dual Tank AB Glue Dispensing Machine With Timing Belt
Product Overview
The HS-D5331-AB dual tank glue dispensing machine is a high-precision automated dispensing equipment independently developed by MSTECH. Designed for AB two-component adhesive dispensing applications, this system integrates stable fluid control with a multi-axis motion system to deliver consistent, accurate glue output for diverse industrial bonding, sealing, and potting processes. It supports customized glue mixing ratios and flexible configuration options to match varied production requirements across electronics, automotive, new energy, and other manufacturing sectors.
Key Features
  • User-Friendly Programming & Powerful Drawing Functions: Intuitive teach pendant programming system supports drawing points, straight lines, surfaces, arcs, circles, and continuous tweening of irregular curves for complex 3D non-planar dispensing paths.
  • Fully Customizable Dispensing Parameters: Programmable glue output volume, dispensing travel speed, and glue stop timing ensure repeatable results for mass production.
  • Stable & Leak-Proof Dispensing Control System: Dedicated controller maintains ultra-stable glue extrusion with zero leakage, reducing material waste and workpiece contamination.
  • Multi-Surface Dispensing Compatibility: Rapidly completes dotting, line drawing, and circular dispensing on inner walls, outer walls, vertical planes, gaps, and spherical surfaces.
  • Highly Customizable Configuration: Optional custom fixtures, specialized glue guns, dedicated controllers, heating and temperature control devices, and other auxiliary components.
  • Advanced Motion Software Functions: Built-in control software includes regional display and translation rotation operation for convenient program editing and adjustment.
  • High-Performance Motion Control Technology: X/Y/Z three-axis system with trapezoidal acceleration/deceleration algorithm, speed preview, and micro line interpolation for smooth, high-precision movement.
Applicable Adhesive Types
This dispensing machine supports a wide range of industrial glues and pastes including silicone, EMI conductive adhesive, UV adhesive, epoxy resin adhesive, sealant, PUR hot melt adhesive, grease, silver glue, red glue, self-adhesive, solder paste, and heat dissipator paste.
Technical Specifications
ModelHS-D5331-AB
X/Y/Z Working Range500*300*300*100mm
XYZ Moving Max Speed300mm/s
Dispensing Speed10-150g/5s (based on 1:1 glue proportion)
AB Glue TankTank capacity configured as required by glue volume
AB Glue Mixing RatioStandard 1:1, custom ratio available upon request
Drive SystemStepping motor + Timing belt
Repeatability±0.01mm
Dispensing PrecisionAmount tolerance ±1%, Mixing Ratio tolerance ±1%
Programming MethodTeach pendant
Control ModeBoard card control
Machine Weight45kg
Overall Dimension (L×W×H)630×620×610mm
Power SupplyAC110-220V, 50/60Hz, Rated Power 300W
Application Advantages
Combining flexible programming, high motion accuracy, and stable AB glue fluid control, the HS-D5331-AB dual tank dispenser greatly improves production efficiency and dispensing consistency. Its customizable hardware and process parameters make it an ideal automated dispensing solution for standardized and customized industrial manufacturing.
