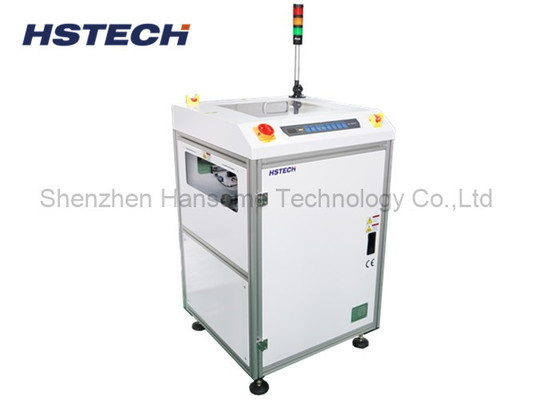

90 Degree PCB Turn Conveyor With Touch Screen SMT Electronic Assembly Transfer Conveyor
90 Degree PCB Turn Conveyor With Touch Screen SMT Electronic Assembly Transfer Conveyor
90 Degree PCB Turn Conveyor With Touch Screen SMT Electronic Assembly Transfer Conveyor
90 Degree PCB Turn Conveyor With Touch Screen SMT Electronic Assembly Transfer Conveyor
90 Degree PCB Turn Conveyor With Touch Screen SMT Electronic Assembly Transfer Conveyor
90 Degree PCB Turn Conveyor With Touch Screen SMT Electronic Assembly Transfer Conveyor
Specifications
Payment Terms :
T/T
Brand Name :
HSTECH
Packaging Details :
Wooden
Price :
Negotation
Supply Ability :
50 PC/Month
Delivery Time :
7-10 work days
Model Number :
HS-ZJ350
Certification :
CE,ISO
MOQ :
1PC
Place of Origin :
China
Transportation direction :
L~R, or R~L
Cycle time :
Approx 5 seconds
PCB thickness :
Min 0.4mm
Transport height :
910±20mm
Power supply :
AC100-230V,50/60Hz,single phase
Air pressure :
4-6bar
Description
High Precision Touch Screen 90 Degree PCB Turn Conveyor Automatic PCB Rotation Corner Transfer Equipment For Electronic SMT Assembly Production
Optimize Floor Space and Production Flow with Our Advanced Vertical Buffer Solution!

Is limited factory space slowing down your SMT line? Do you need a flexible solution to manage production bottlenecks between the Printer, Mounter, and Reflow Oven? Our Multi-Function Vertical PCB Buffer is designed to maximize efficiency while minimizing your factory footprint

Product Overview

It adopts high quality anti static belt and stable driving structure ensuring scratch free silent and stable PCB board transmission without board deformation or component damage. The touch screen operation interface supports parameter setting speed adjustment and running status monitoring simple operation no complex training required.

Features

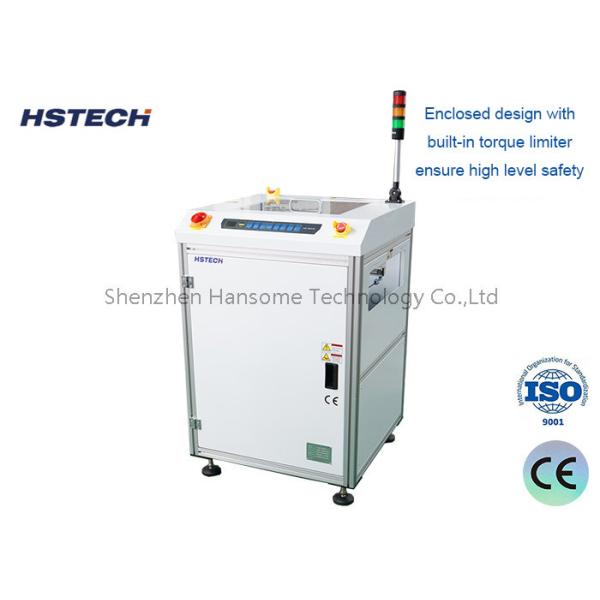

  1. Enclosed design with built-in torque limiter ensure high level of safety.
  2. Top safe cover can be opened for each access to hardware during Maintenance.
  3. Use friendly control button.
  4. Smooth and precise rotation.
  5. Minimize the transfer gap between conveyors.
  6. PCB traffic flows can be customized.
  7. Smooth and parallel width adjustment(lead screw).
  8. SMEMA compatible.
Technical Details
Function This unit is used for redirect the PCBs flow direction on production line(90degree,180degree,or 270degree)
Transport height 910±20mm
Transportation direction L~R, or R~L
Cycle time Approx 5 seconds
Track fixed side Front side
Power supply AC100-230V,50/60Hz,single phase
Air pressure 4-6bar
Air consumption Max 10L/min
PCB thickness Min 0.4mm
Signal SMEMA
Specification
Model HS-ZJ350 HS-ZJ500
Efficient PCB length 50*50~500*350mm 50*50~500*500mm
Machine dimension 700*750*1200mm 840*890*1200mm
Weight 150kg 180kg
Machine drawing

90 Degree PCB Turn Conveyor With Touch Screen SMT Electronic Assembly Transfer Conveyor

Application Scope
  • SMT production line PCB corner transfer
  • Electronic assembly line PCB board turning handling
  • Consumer electronics automotive electronics medical electronics manufacturing
  • Cooperate with PCB loader unloader conveyor and other PCB handling equipment
Why Choose Our Vertical Buffer?

In the competitive global electronics market, efficiency is key. Our Multi-Function Vertical PCB Buffer solves the common problem of production rhythm mismatch.

  • For the Reflow Oven: It acts as a cooling buffer or a holding station.
  • For the Mounter: It absorbs fluctuations in placement speed.
  • For the Factory: It saves valuable real estate.

Upgrade to vertical automation today and watch your production efficiency soar!
